Transmission Mount: Service and Repair

TRANSAXLE MOUNTING

REMOVAL AND INSTALLATION

CAUTION
The part indicated * mark should be temporarily tightened and then should be fully tightened with the engine weight applied on the vehicle body.

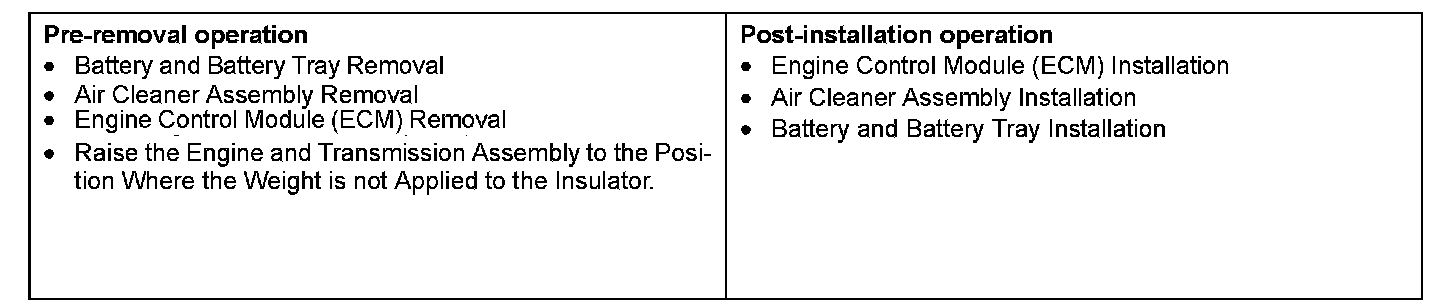

Pre-removal & Post-installation Operation:

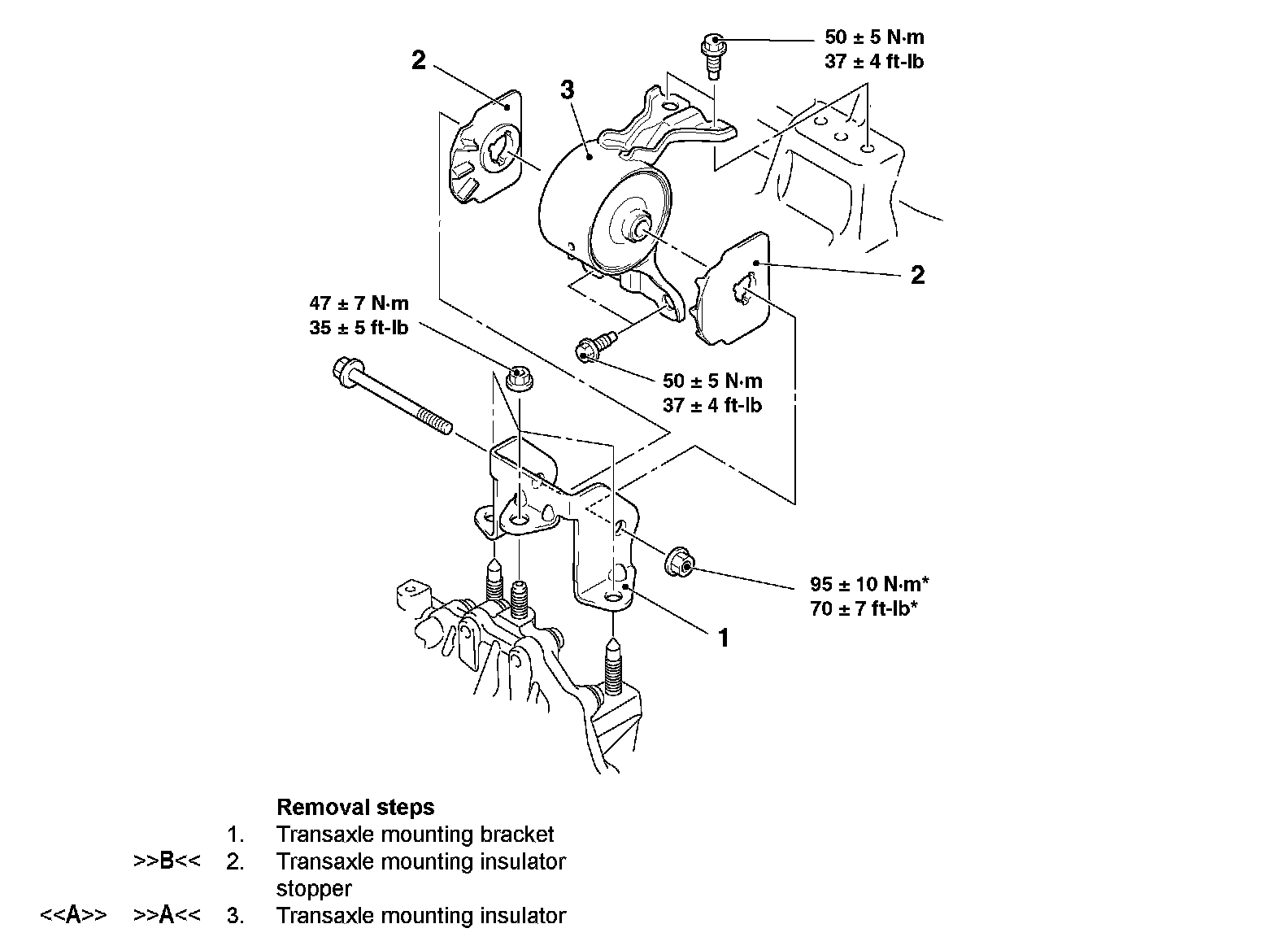

Removal Steps 1-3:

Required Special Tool:
^ MB990900 or MB991164: Door Adjusting Wrench

REMOVAL SERVICE POINT

[[A]] TRANSAXLE MOUNTING INSULATOR REMOVAL
To remove the mounting bolt on the lower side of the transaxle mounting insulator, use the special tool MB990900 or MB991164.

INSTALLATION SERVICE POINTS

]]A[[ TRANSAXLE MOUNTING INSULATOR INSTALLATION
To install the mounting bolt on the lower side of the transaxle mounting insulator, use the special tool MB990900 or MB991164.

Tightening torque: 50 ± 5 Nm (37 ± 4 ft-lb)

]]B[[ TRANSAXLE MOUNTING INSULATOR STOPPER INSTALLATION

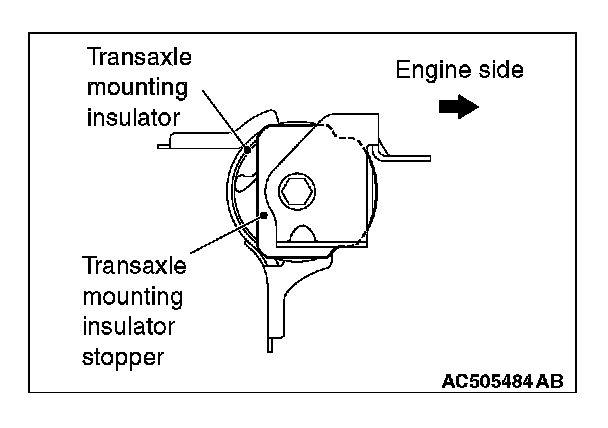

Install the transaxle mounting insulator stopper as shown in the figure.
