Transmission Mount: Description and Operation
GENERAL INFORMATIONTo support the power plant, the inertial axis four-point mount system has been adopted. The system has the following features:
^ For the engine and transaxle mounting insulator, the cylindrical liquid seal mount has been adopted. It reduces the idling vibration and acceleration noise, and improves riding comfort.
^ For the engine mounting bracket, lightweight and high rigidity aluminum has been adopted to reduce acceleration noise.
^ For the transaxle mounting bracket, lightweight and high rigidity sheet metal has been adopted to reduce the gear noise.
^ For the front and rear roll stopper, insulators developed for CVT have been adopted. It reduces the idling vibration and acceleration/deceleration shock.
^ A front axle crossmember has been adopted to improve steering ability.

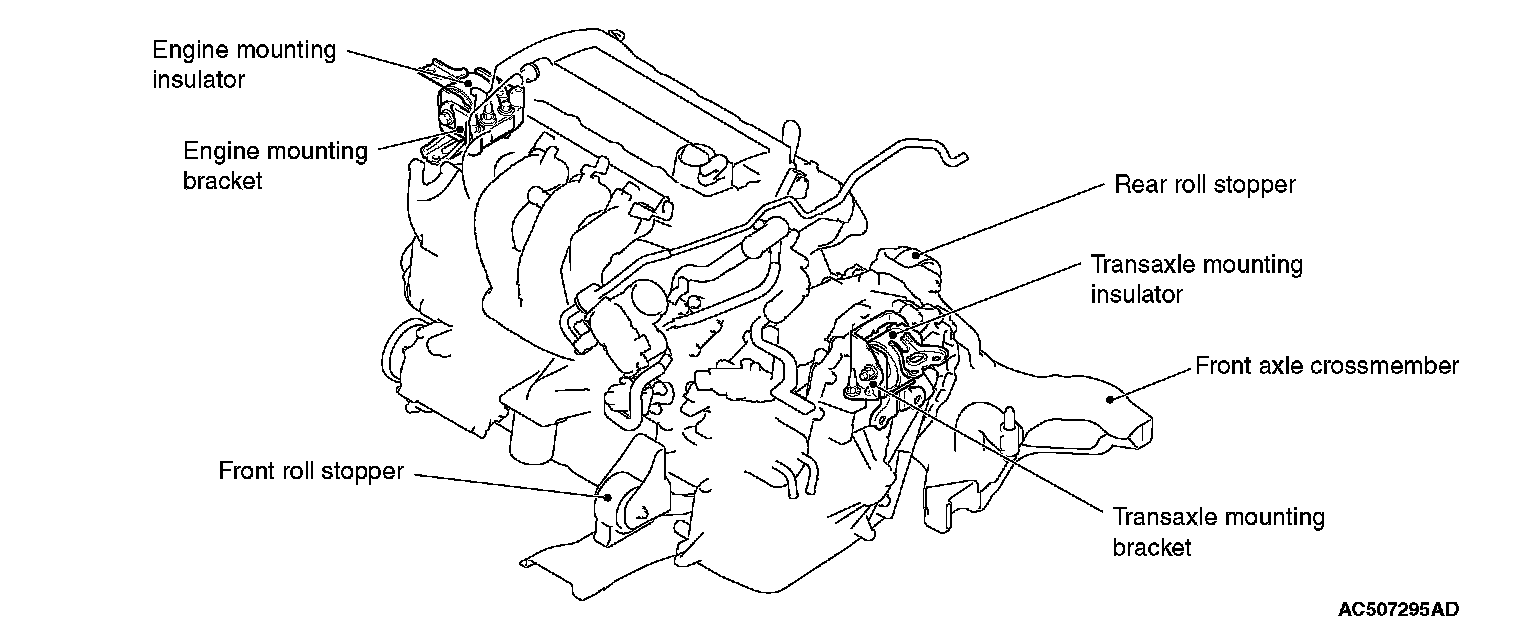

CONSTRUCTION DIAGRAM
CONSTRUCTION DIAGRAM:
