Data List Reference Table
Data List Reference Table
This article has been updated by technical service bulletin 09 23 002 dated April 2009.
DATA LIST REFERENCE TABLE

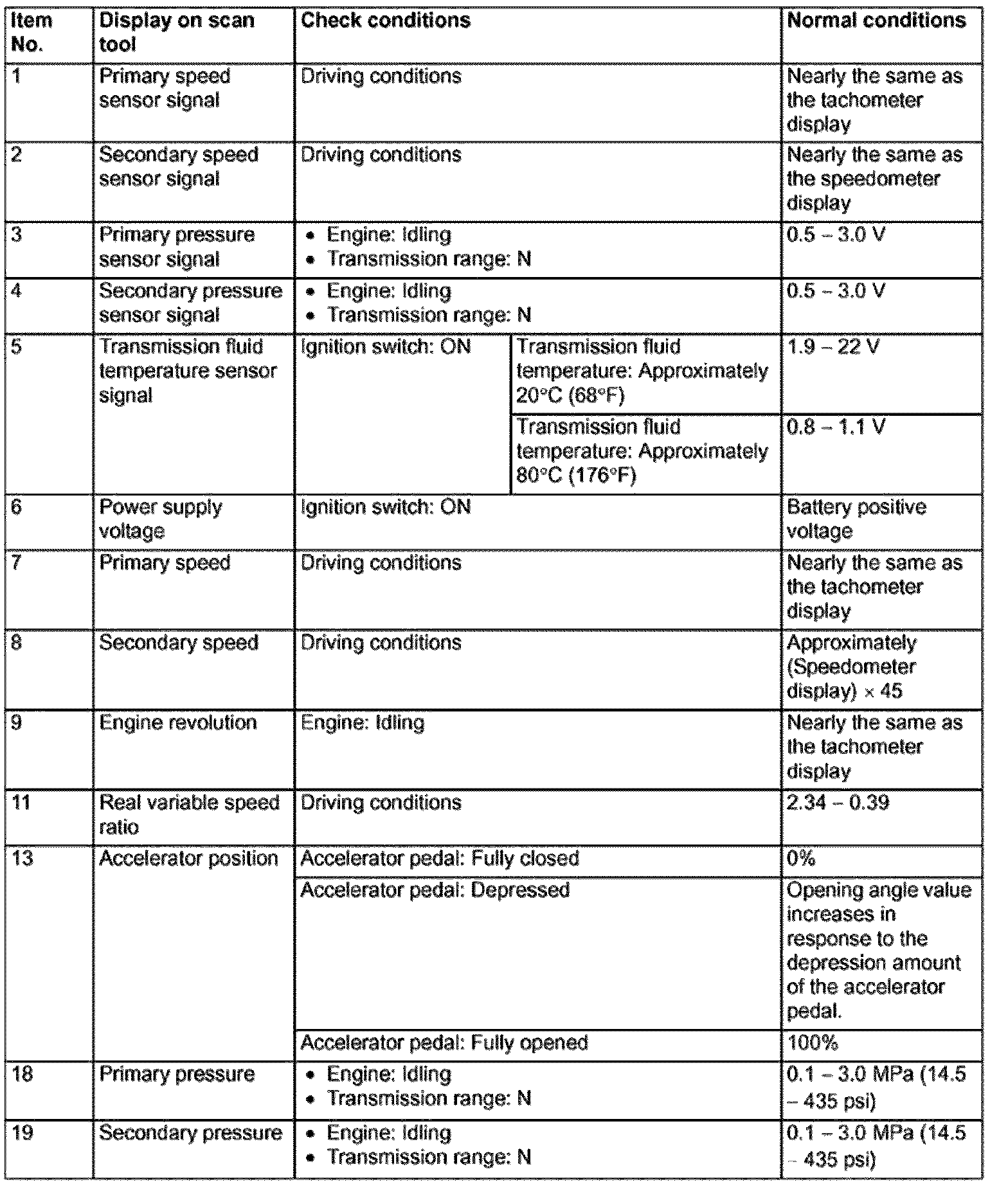

Data List Reference Table (Part 1):

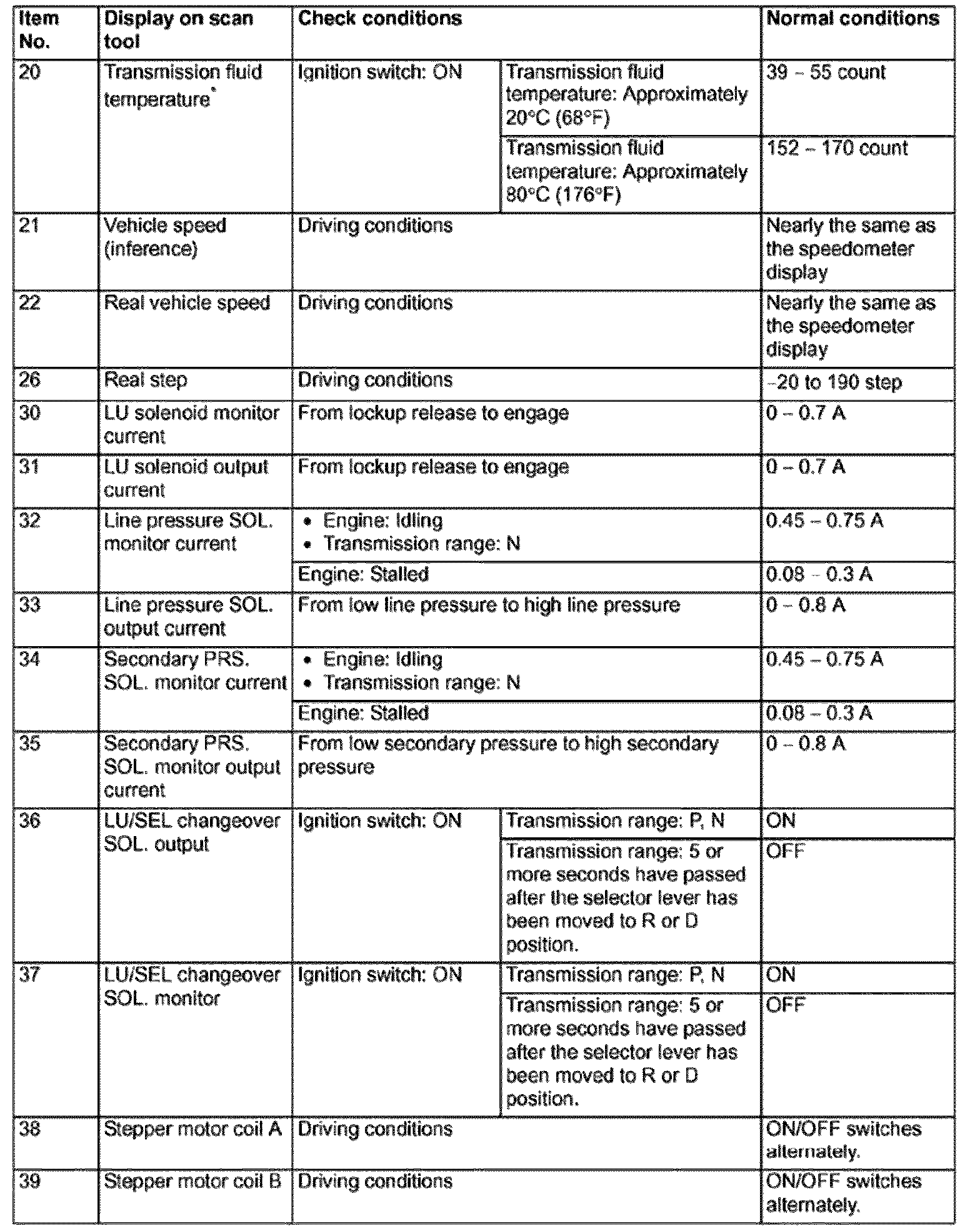

Data List Reference Table (Part 2):

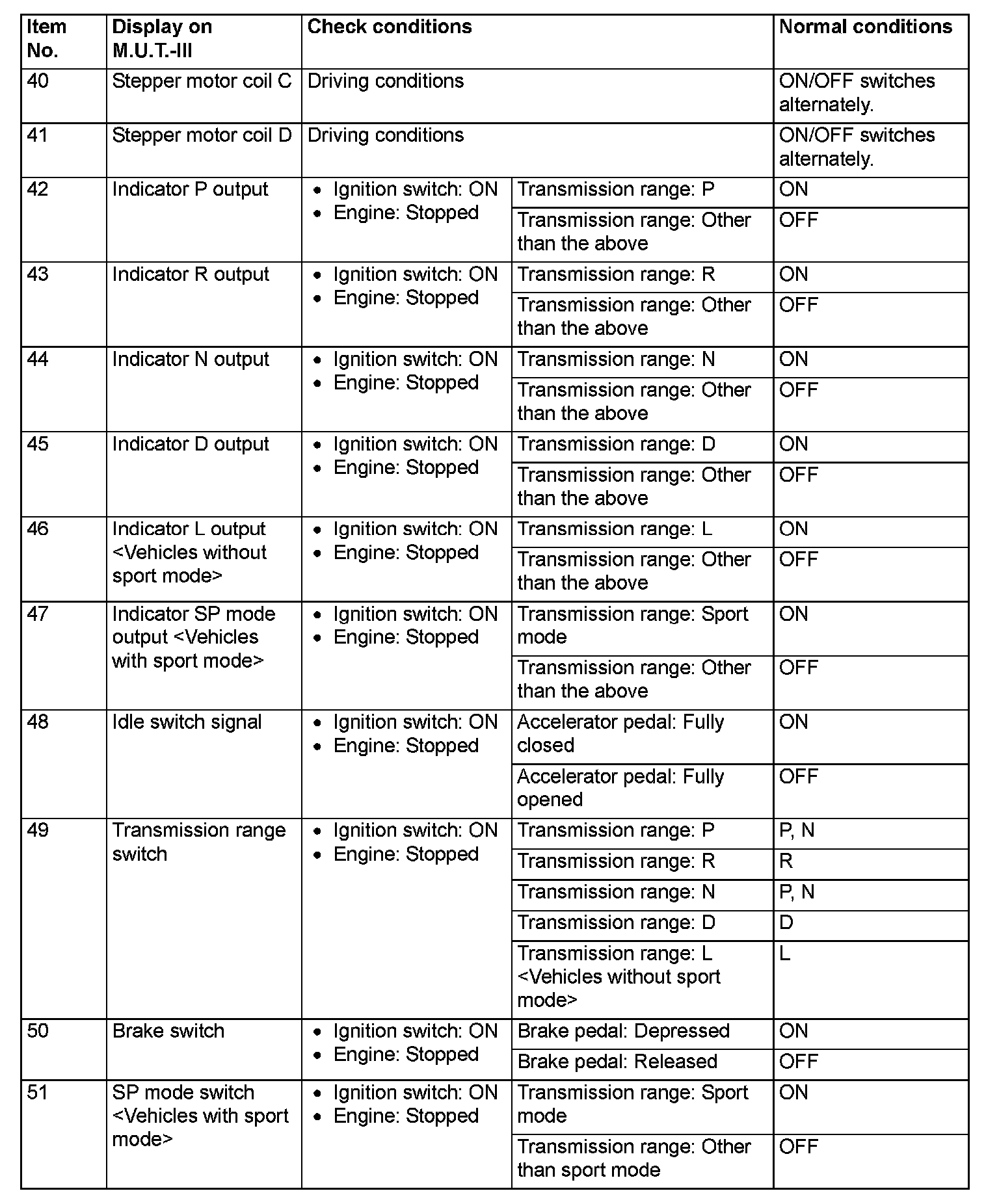

Data List Reference Table (Part 3):

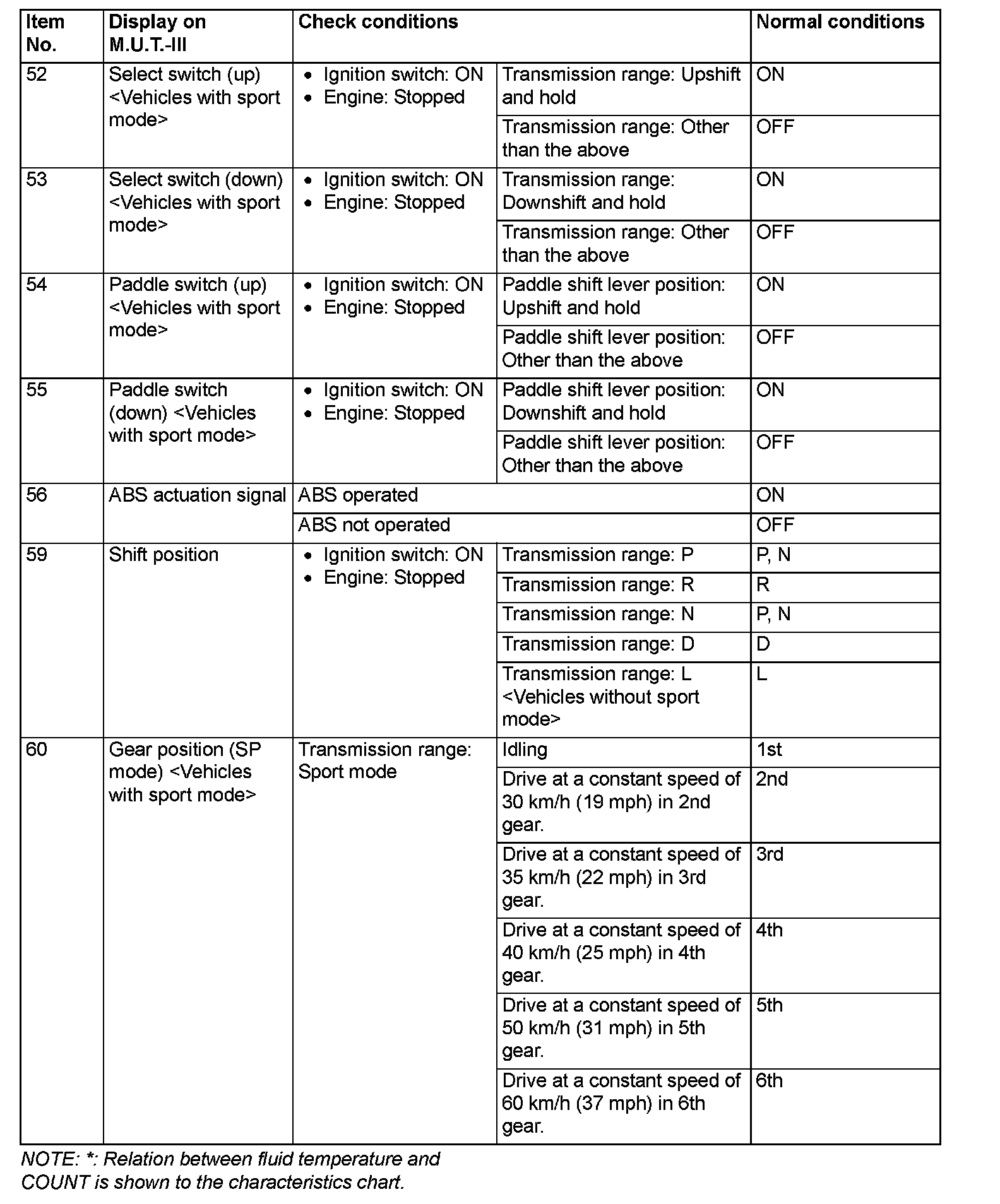

Data List Reference Table (Part 4):
