Pinout Values and Diagnostic Parameters

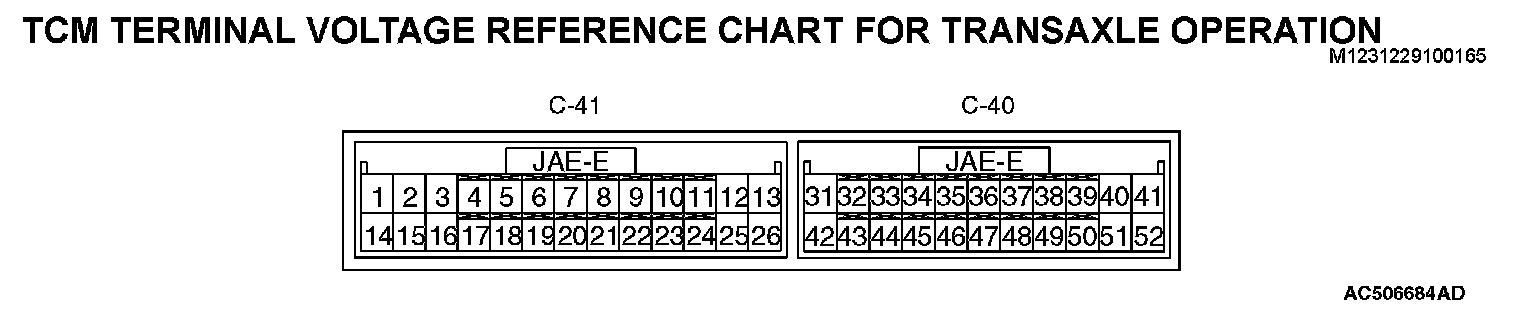

TCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION

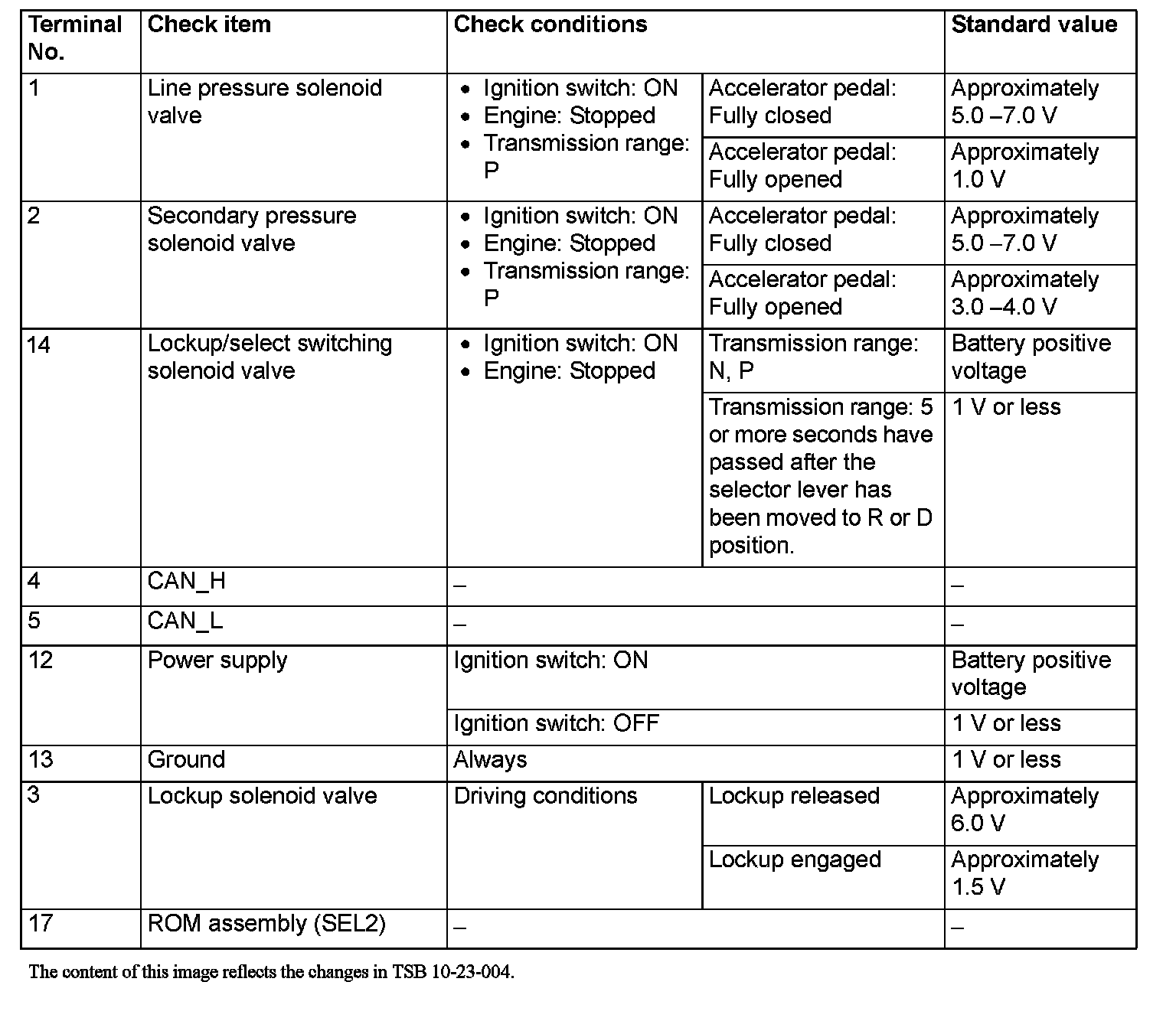

TCM Terminal Voltage Reference Chart For Transaxle Operation (Part 1):

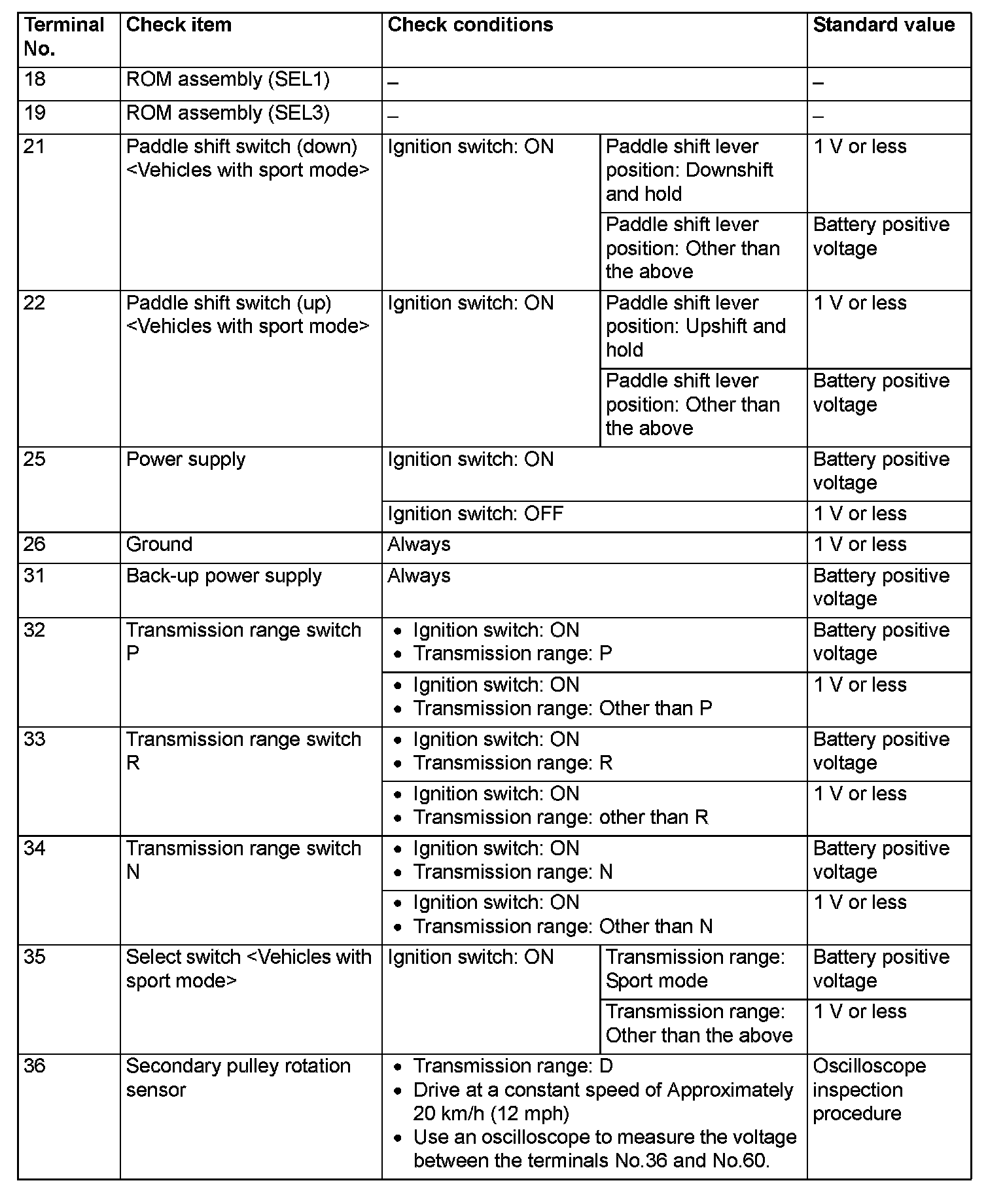

TCM Terminal Voltage Reference Chart For Transaxle Operation (Part 2):




TCM Terminal Voltage Reference Chart For Transaxle Operation (Part 3):




TCM Terminal Voltage Reference Chart For Transaxle Operation (Part 4):
