Shift Lock Mechanism Check
SHIFT LOCK MECHANISM CHECKSYSTEM CHECK

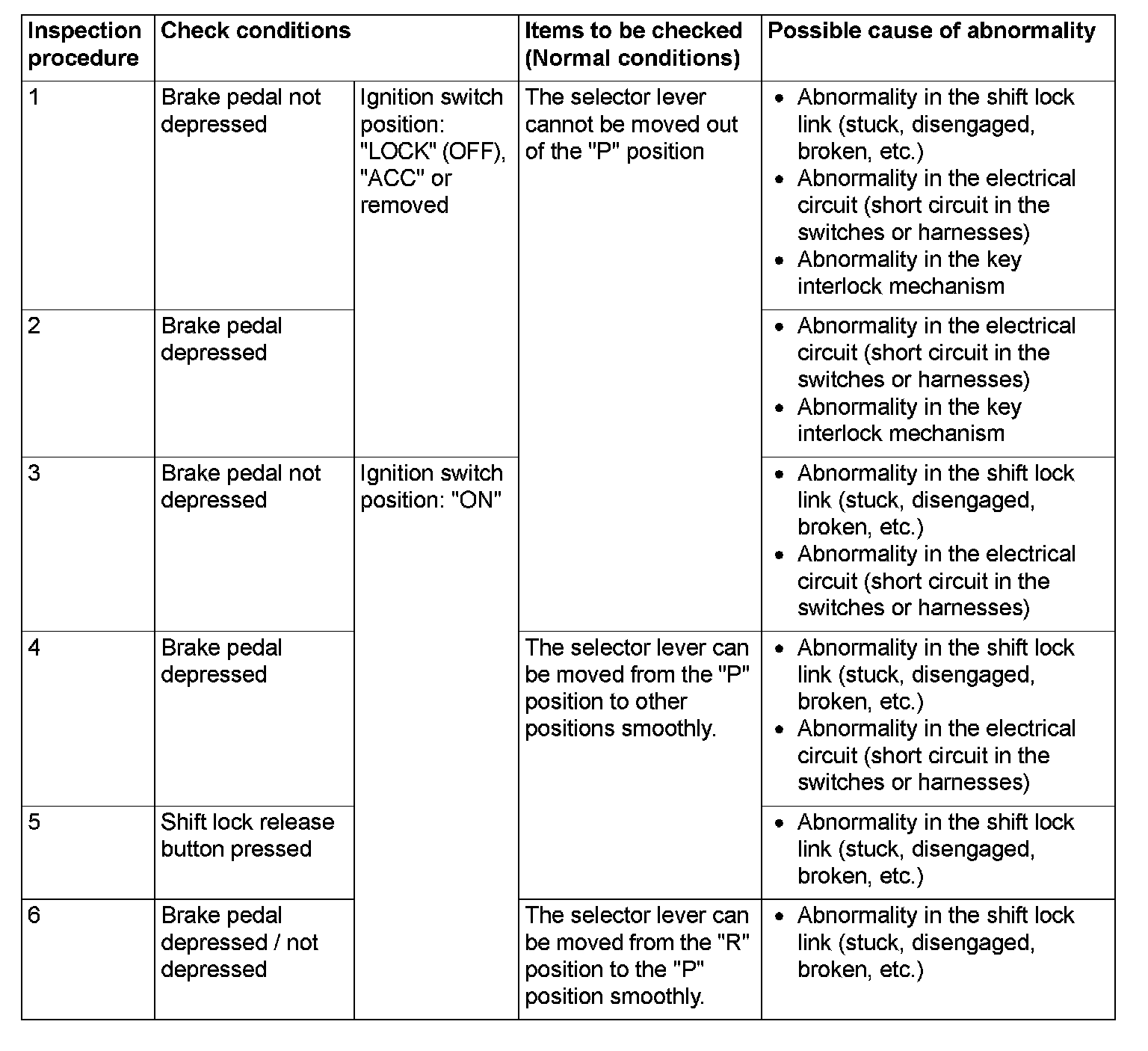

System Check:
COMPONENT PARTS CHECK
SHIFT LOCK LINK
Check each part for damage and disengagement.
Check that the lock lever smoothly moves in the direction of arrow B in the figure when the shift lock solenoid plunger is pressed in the direction of arrow A, and smoothly moves back to the original position when the plunger is released.
ELECTRICAL CIRCUIT
Check for the following operations.

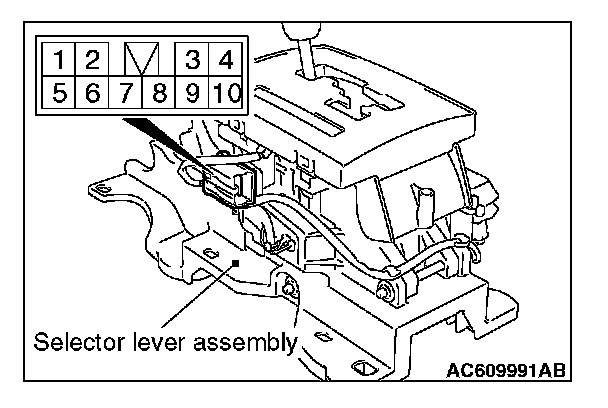

^ With the selector lever in "P" position, apply voltage (equivalent to the battery positive voltage) between the selector lever assembly connector terminals No.3 and No.6, and between terminals No.4 and No. 6. Check that the shift lock solenoid operates normally while the voltage is applied, and moves back to the original position when the voltage is removed.
^ With the selector lever moved to the position other than "P", apply voltage (equivalent to the battery positive voltage) between the selector lever assembly connector terminals No.3 and No.6, and between terminals No.4 and No. 6. Check that the shift lock solenoid does not operate at this time.
