A/T - F1CJA Tools/Specifications Revision

No.: TSB-07-23-004

DATE: June, 2007

MODEL:
2008 Lancer

SUBJECT:
SPECIFICATIONS AND SPECIAL TOOLS FOR F1CJA TRANSMISSION - SERVICE MANUAL

TSB Revision: TSB-07-23-004

PURPOSE

This TSB addresses incorrect and missing information in the applicable Service Manual with regards to the special tools and the specifications for the F1CJA continuously variable transaxle installed in the 2008 LANCER.

AFFECTED VEHICLES
2008 Lancer

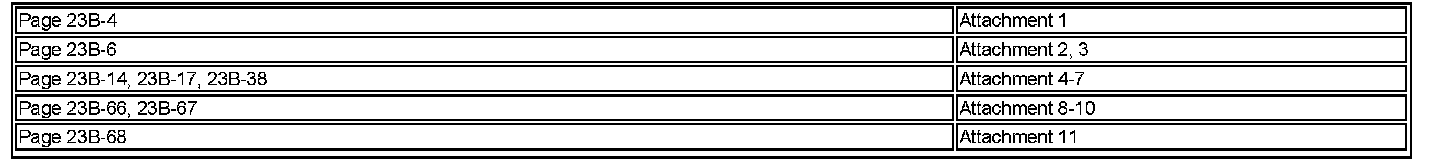

AFFECTED SERVICE MANUALS

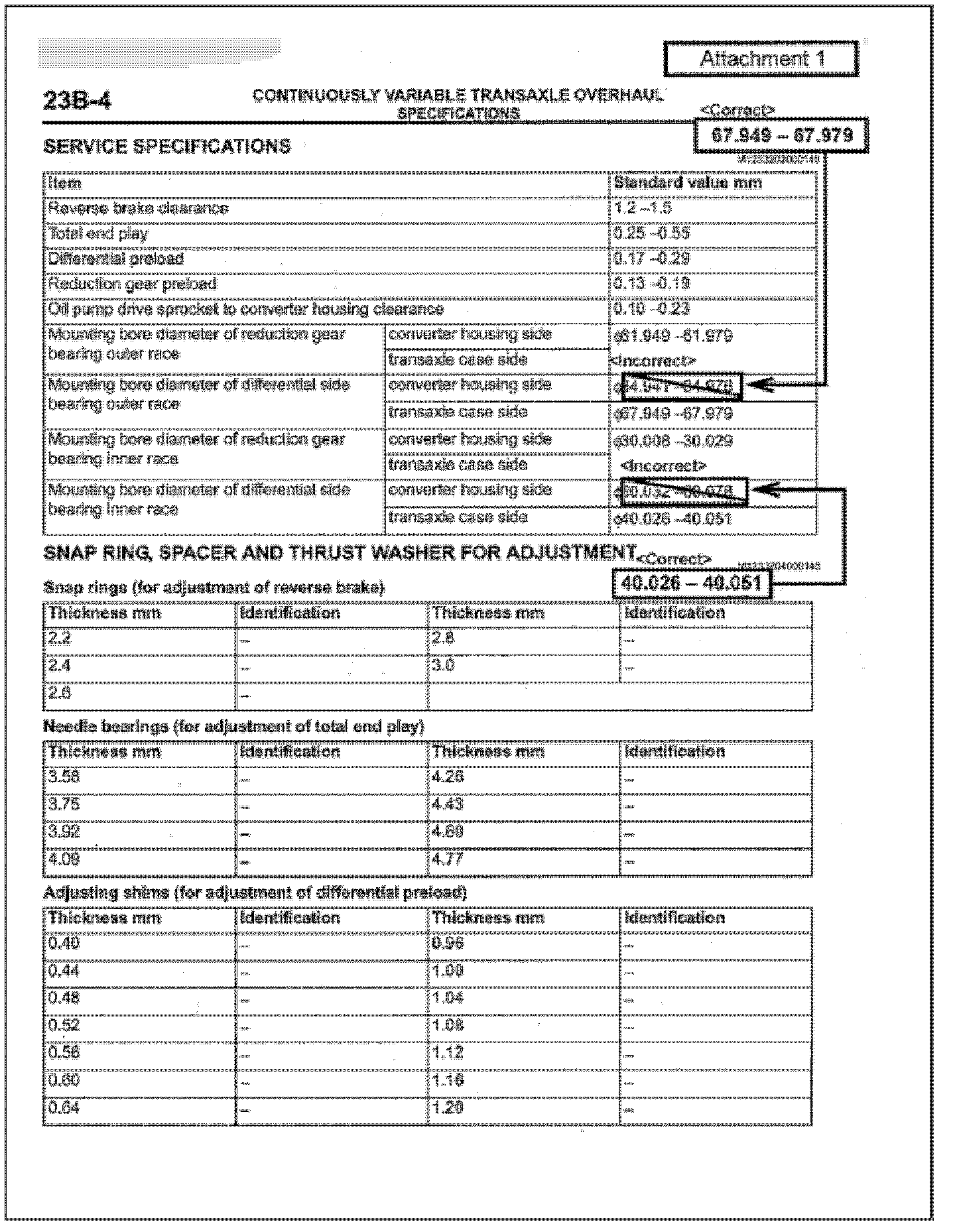

Page 23B-4 - Attachment 1

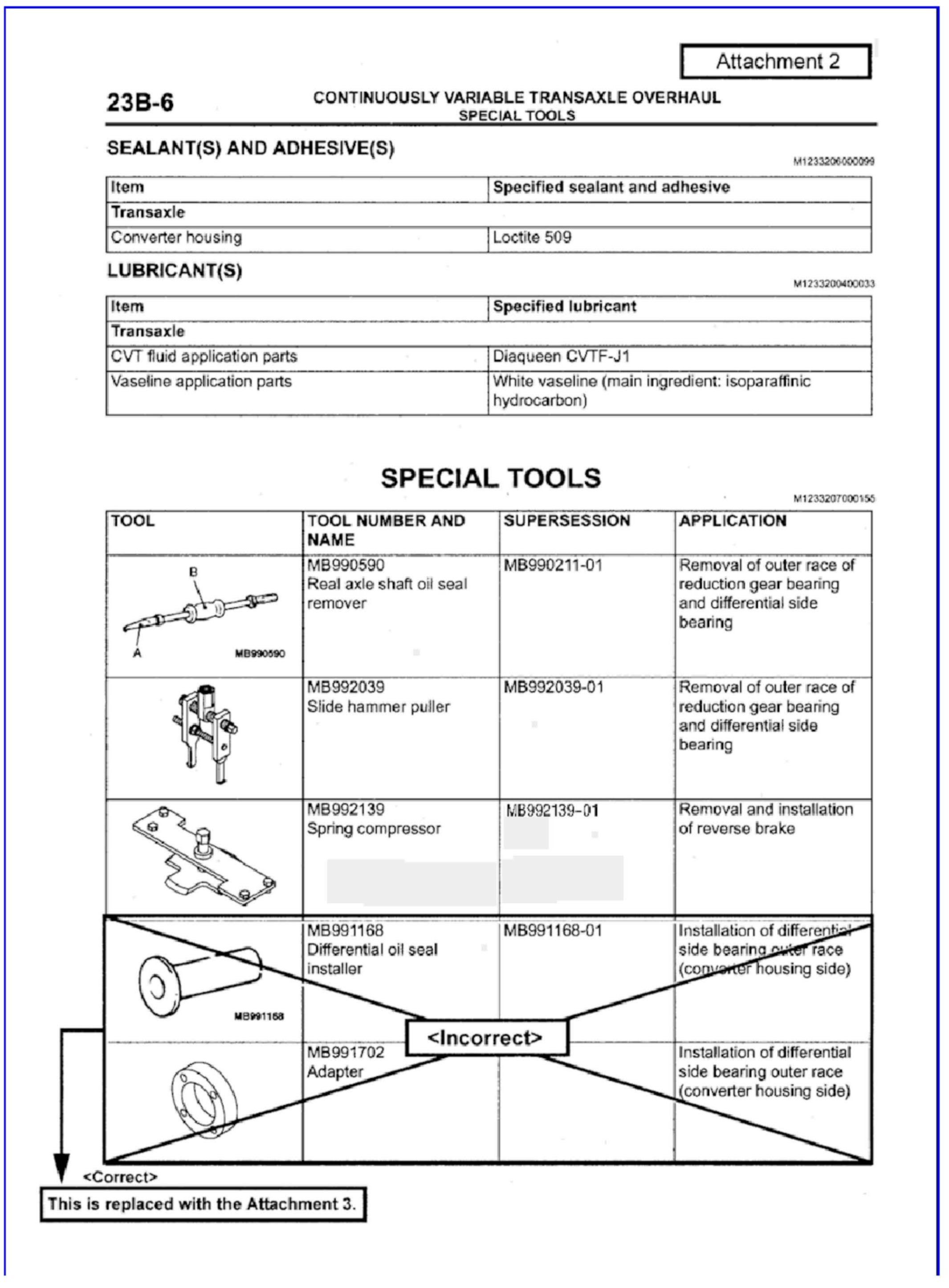

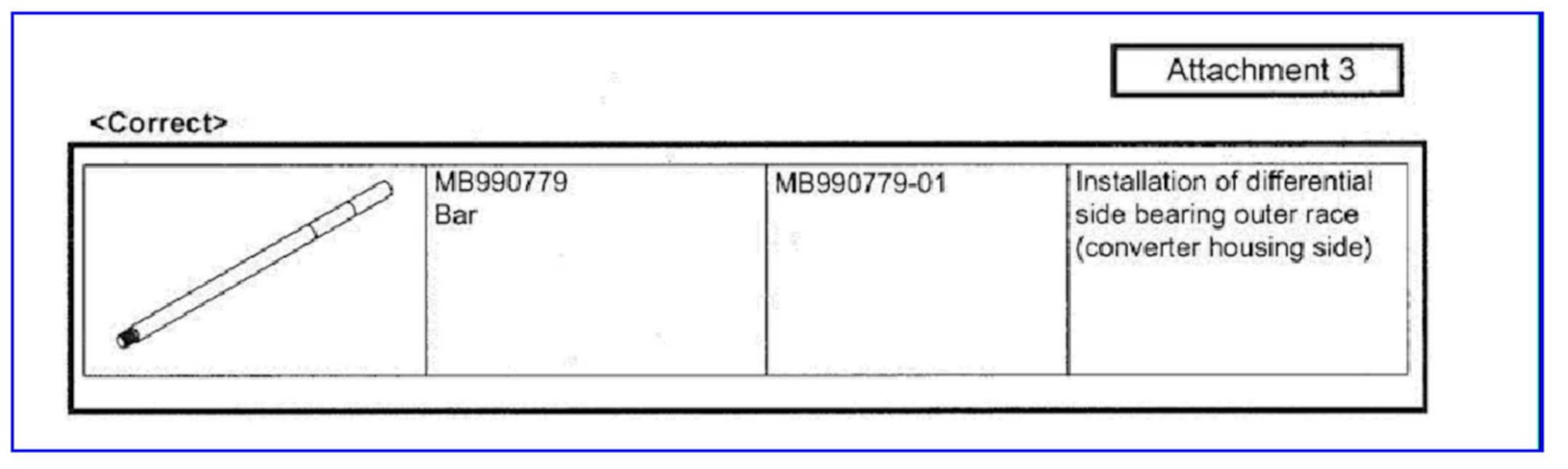

Page 23B-6 - Attachment 2, 3

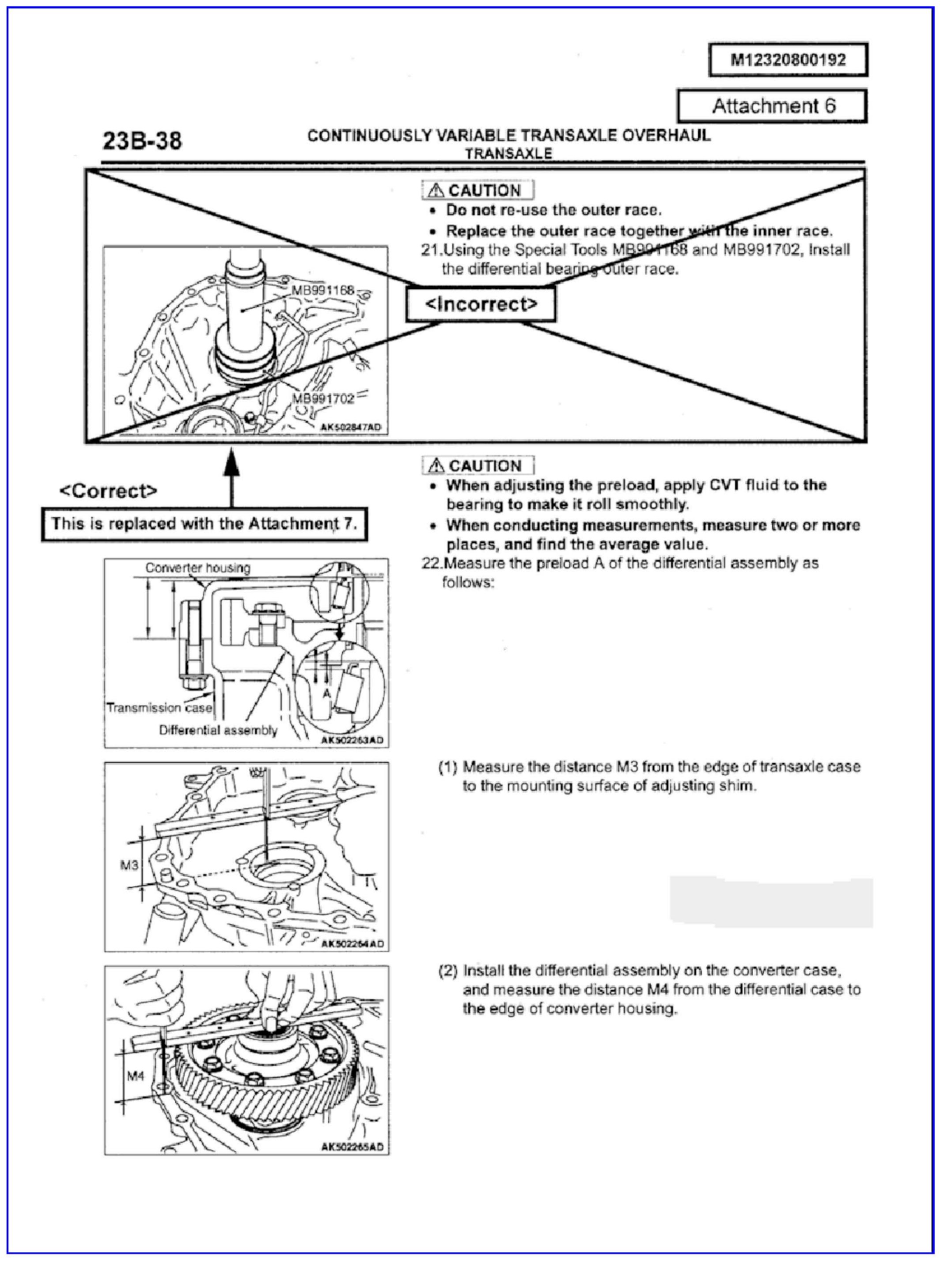

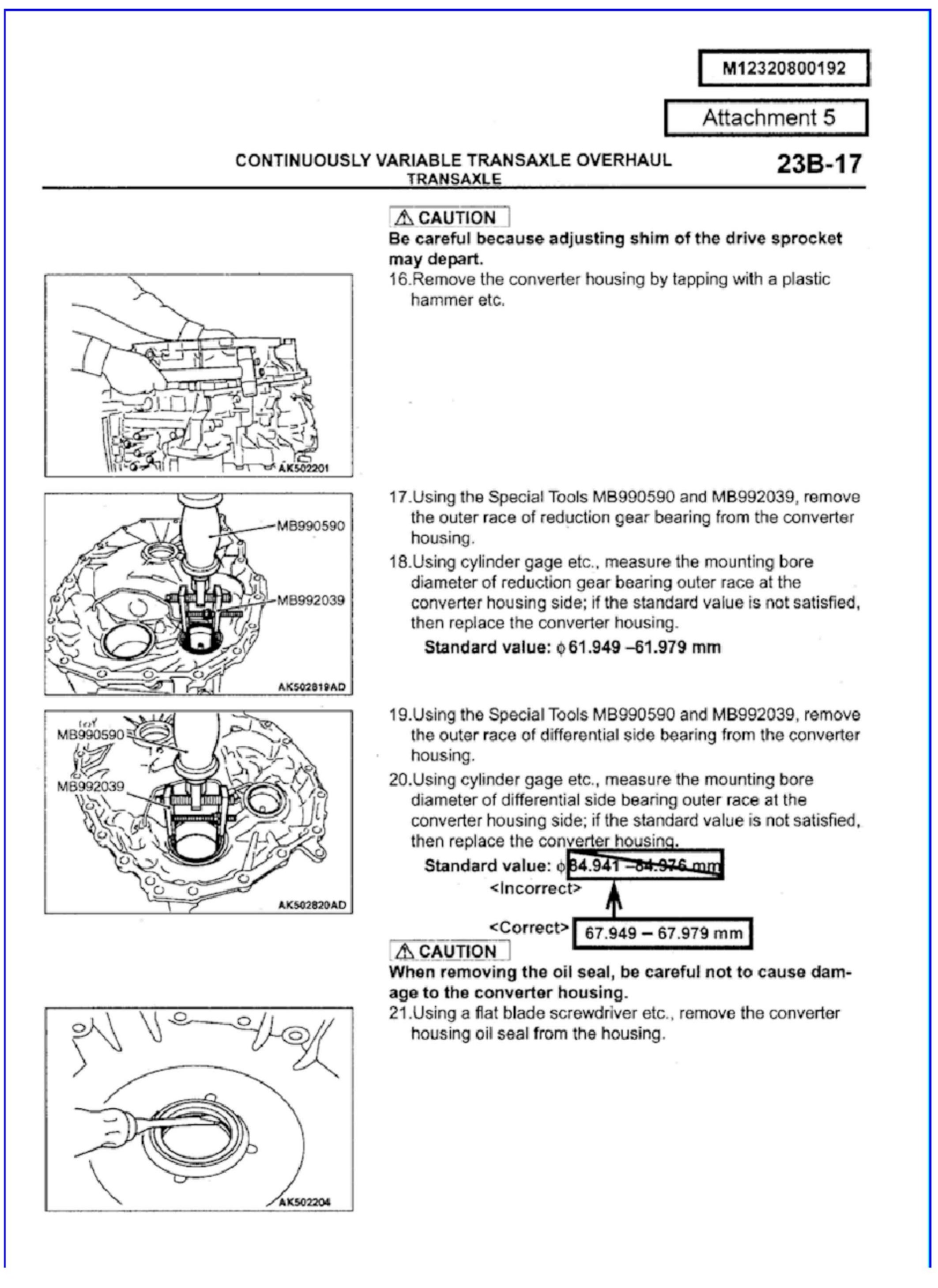

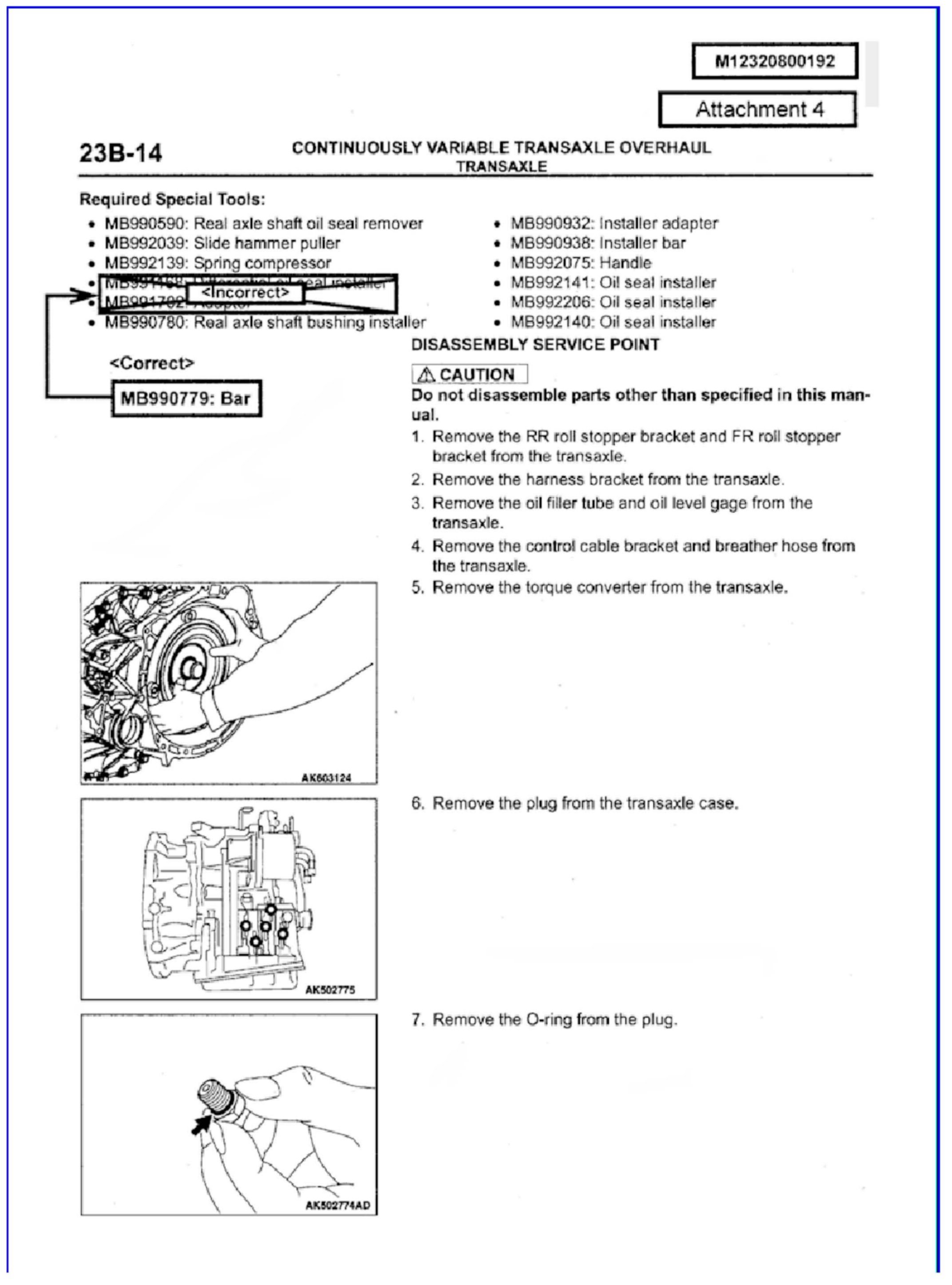

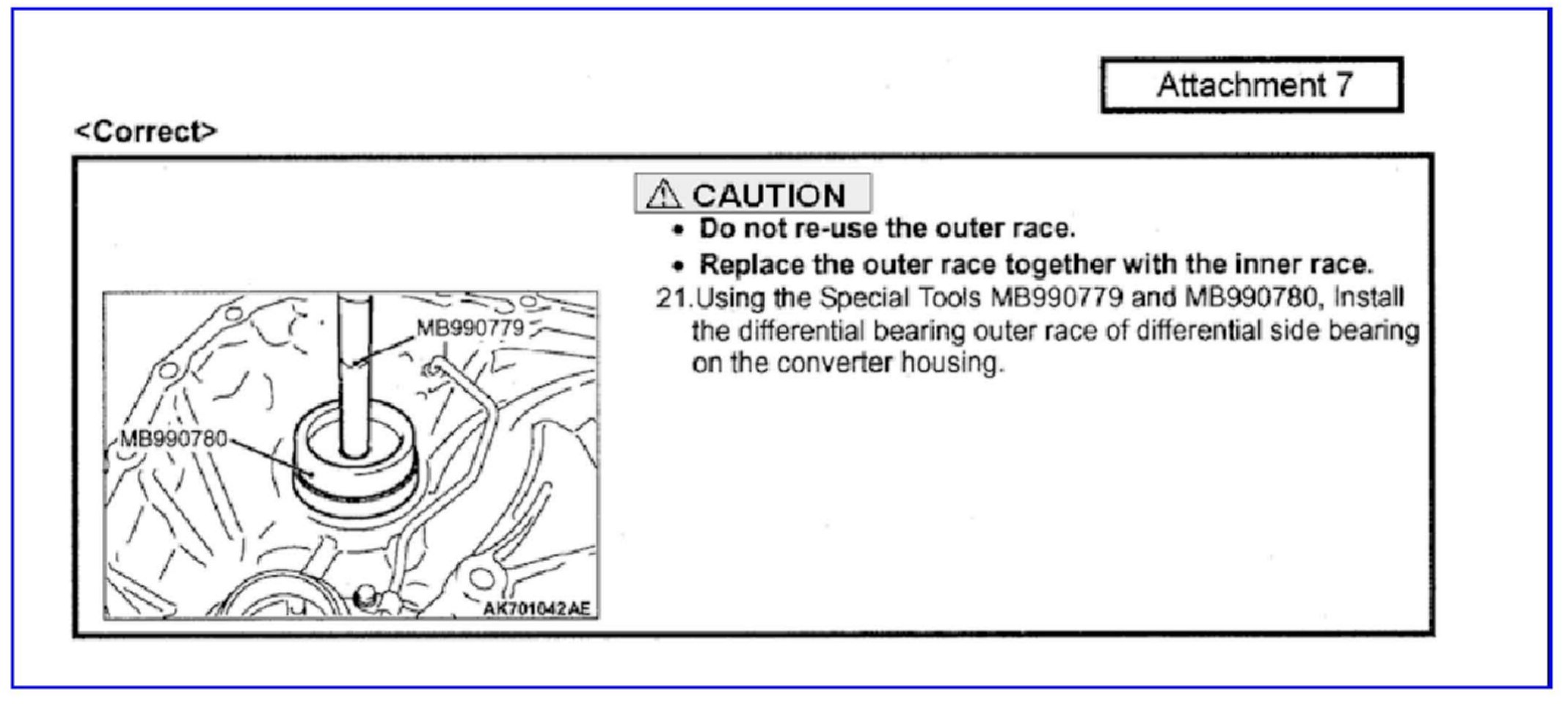

Pages 23B-14, 23B-17, 23B-38 - Attachments 4-7

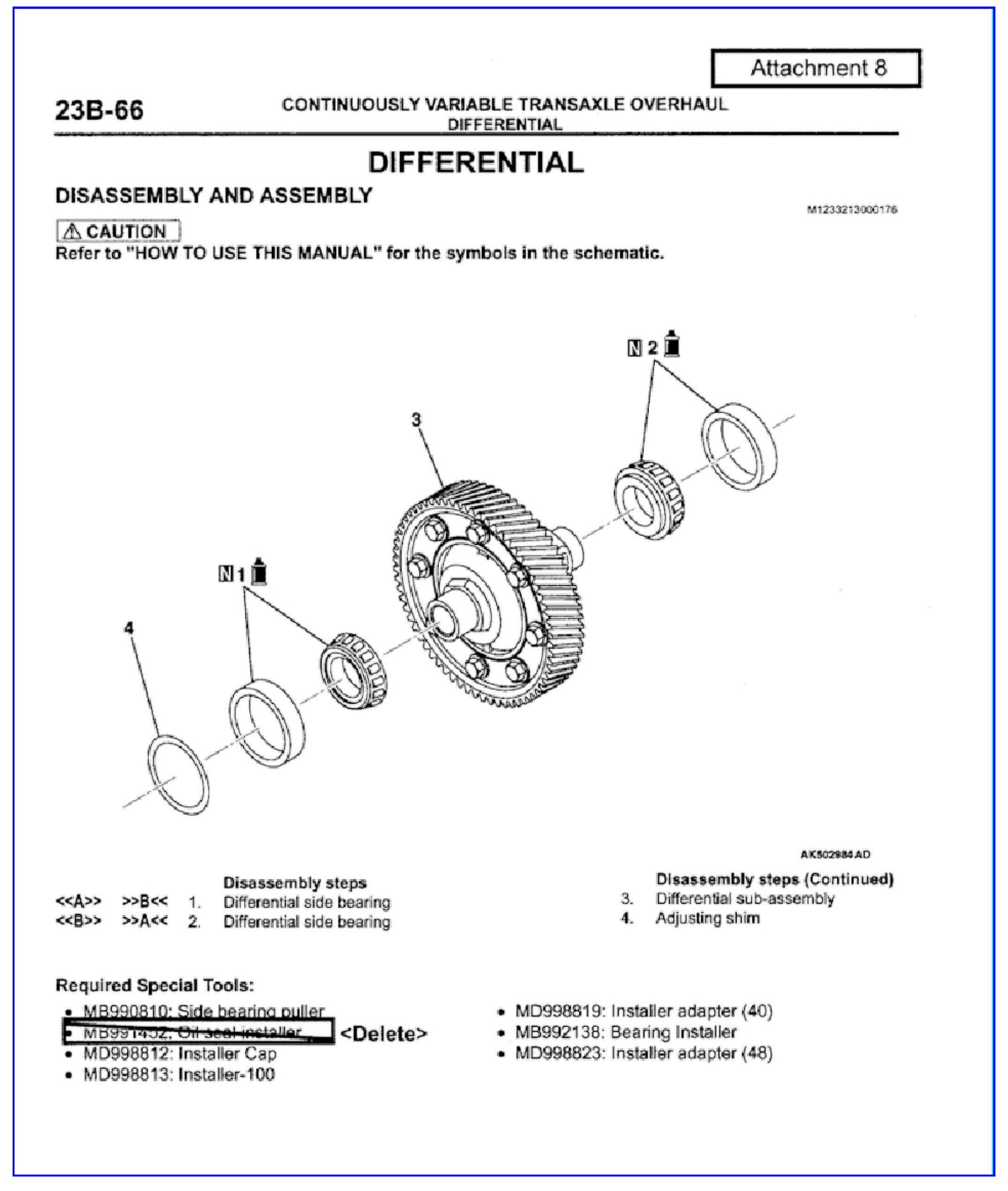

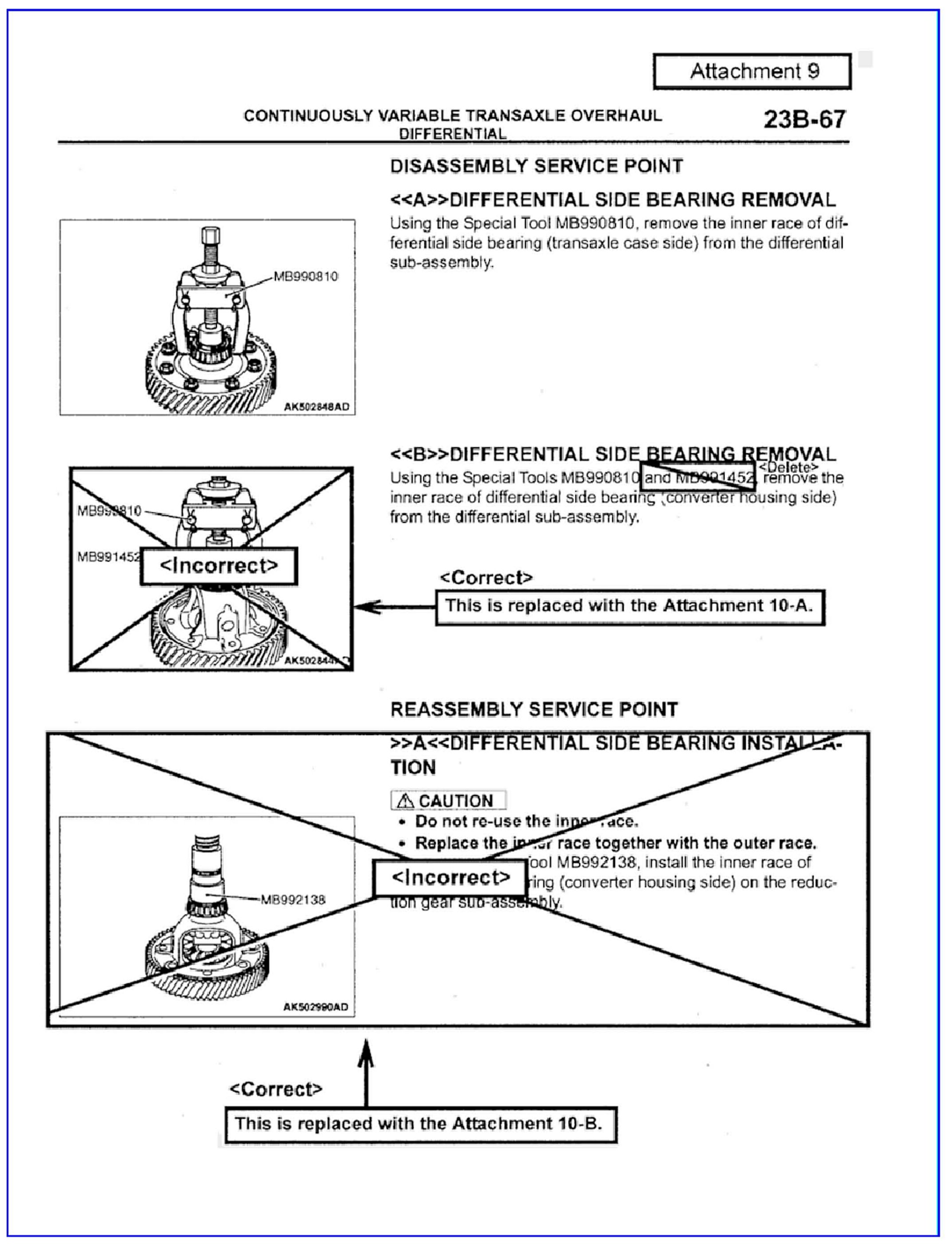

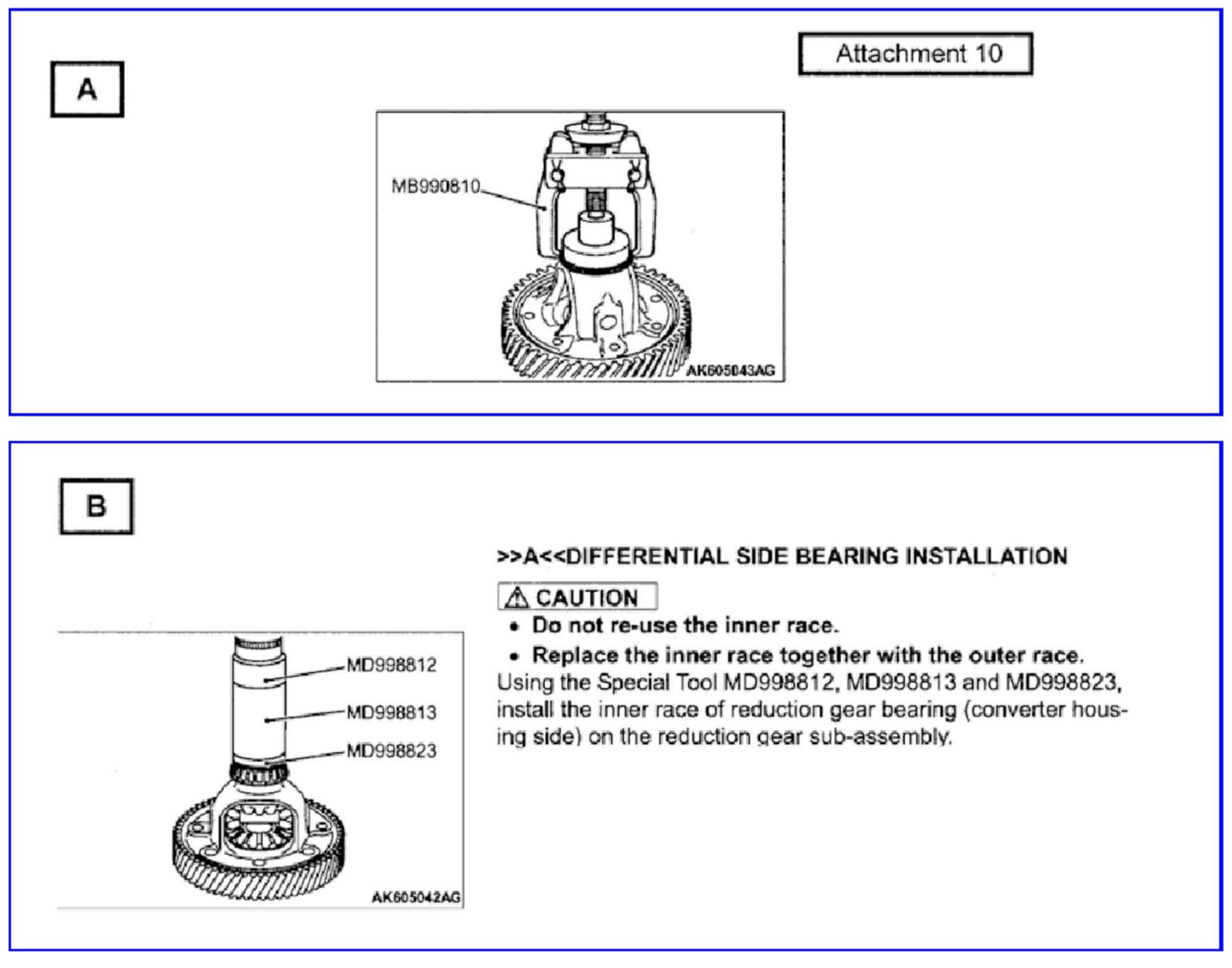

Pages 23B-66, 23B-67 - Attachment 8-10

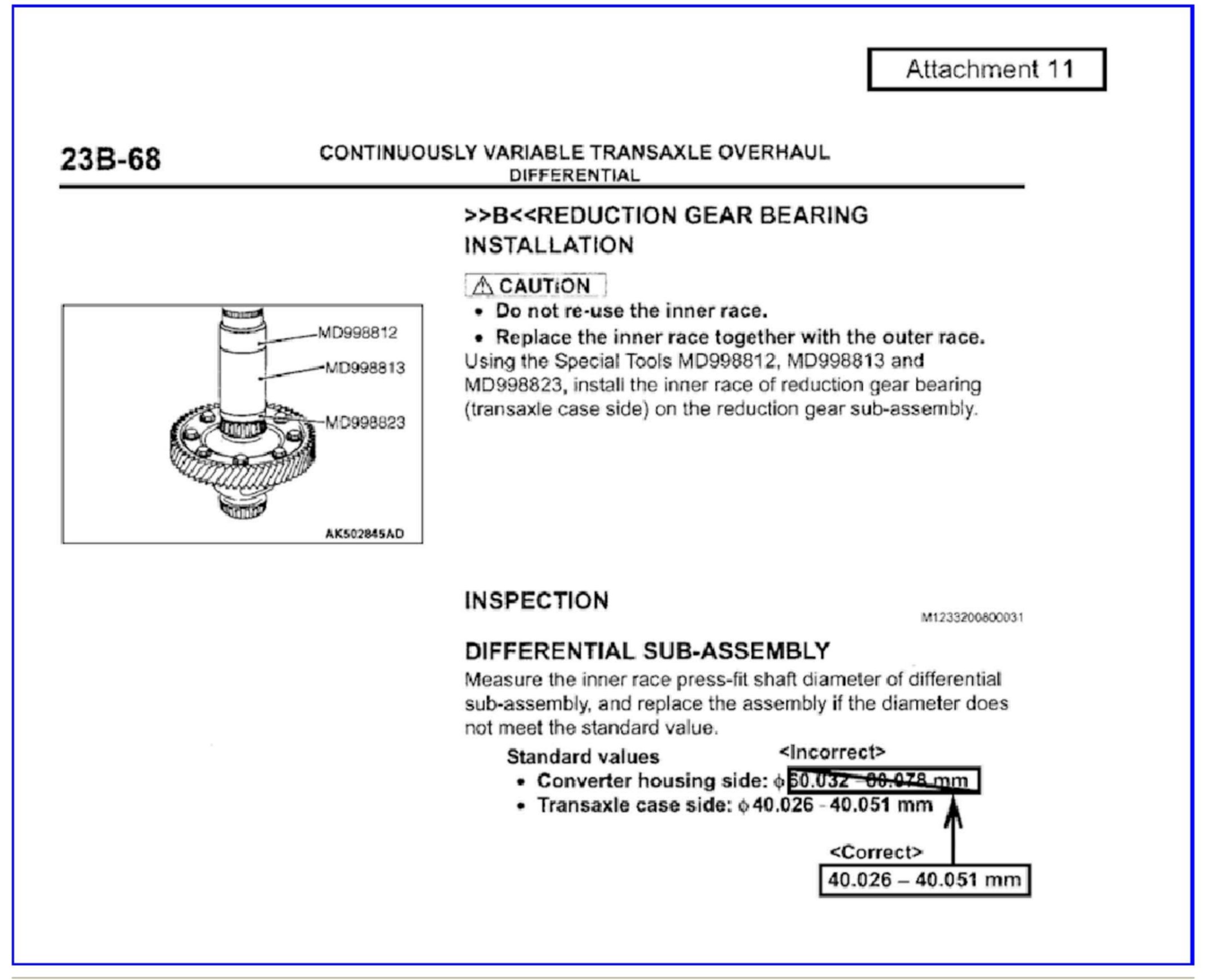

Page 23B-68 - Attachment 11
