Reduction Gear Sub-Assembly
REDUCTION GEAR SUB-ASSEMBLYASSEMBLY
CAUTION
The reduction gear sub-assembly can only be assembled, not disassembled.

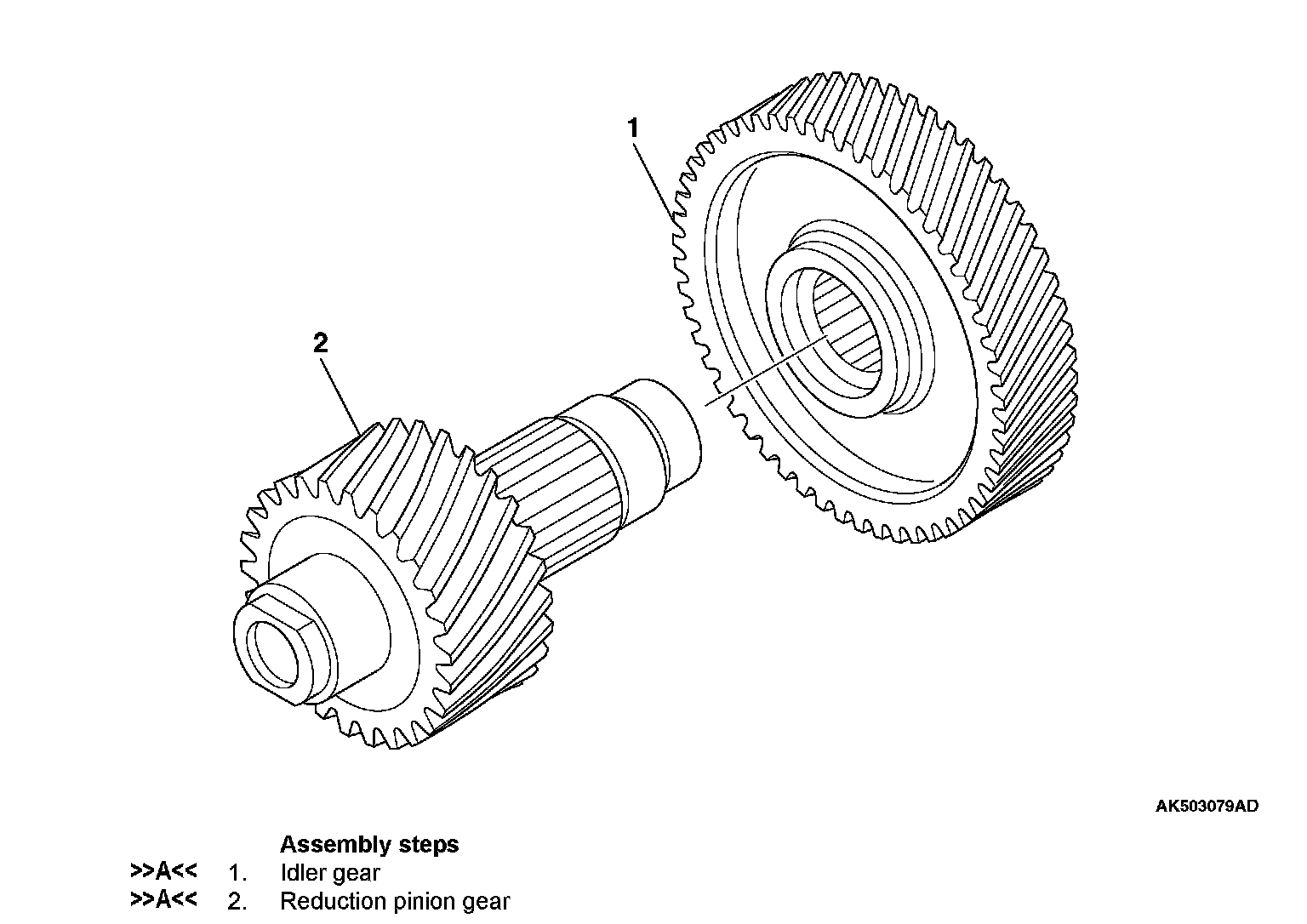

Assembly Steps 1-2:
Required Special Tools:
^ MD998812: Installer Cap
^ MD998813: Installer-100
^ MD998819: Installer adapter (40)
ASSEMBLY SERVICE POINT
]]A[[ REDUCTION PINION GEAR/IDLER GEAR INSTALLATION
CAUTION

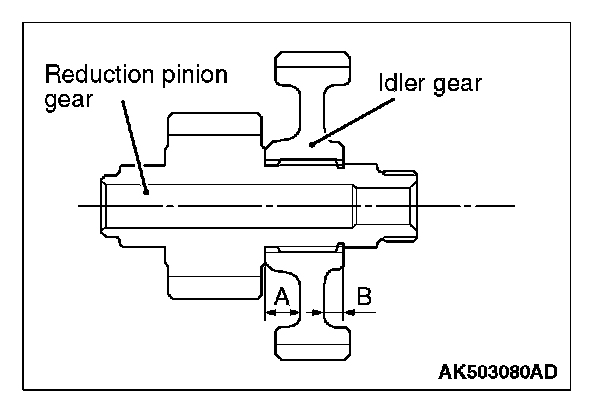

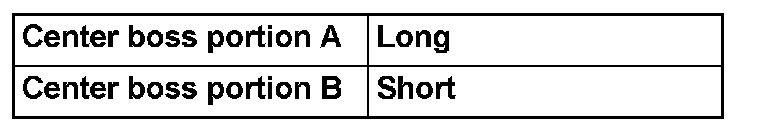

When attaching the idler gear to the reduction pinion gear, make sure the center boss portion A faces the reduction pinion gear.

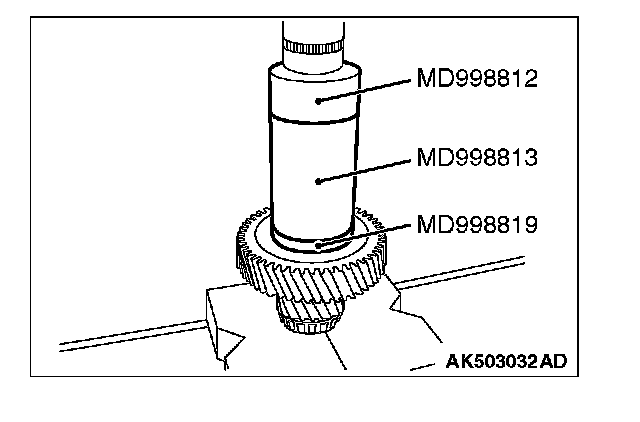

Using the Special Tools MD998812, MD998813 and MD998819, attach the idler gear to the reduction pinion gear.
