Differential Sub-Assembly
DIFFERENTIAL SUB-ASSEMBLYASSEMBLY
CAUTION
The differential sub-assembly can only be assembled, not disassembled.

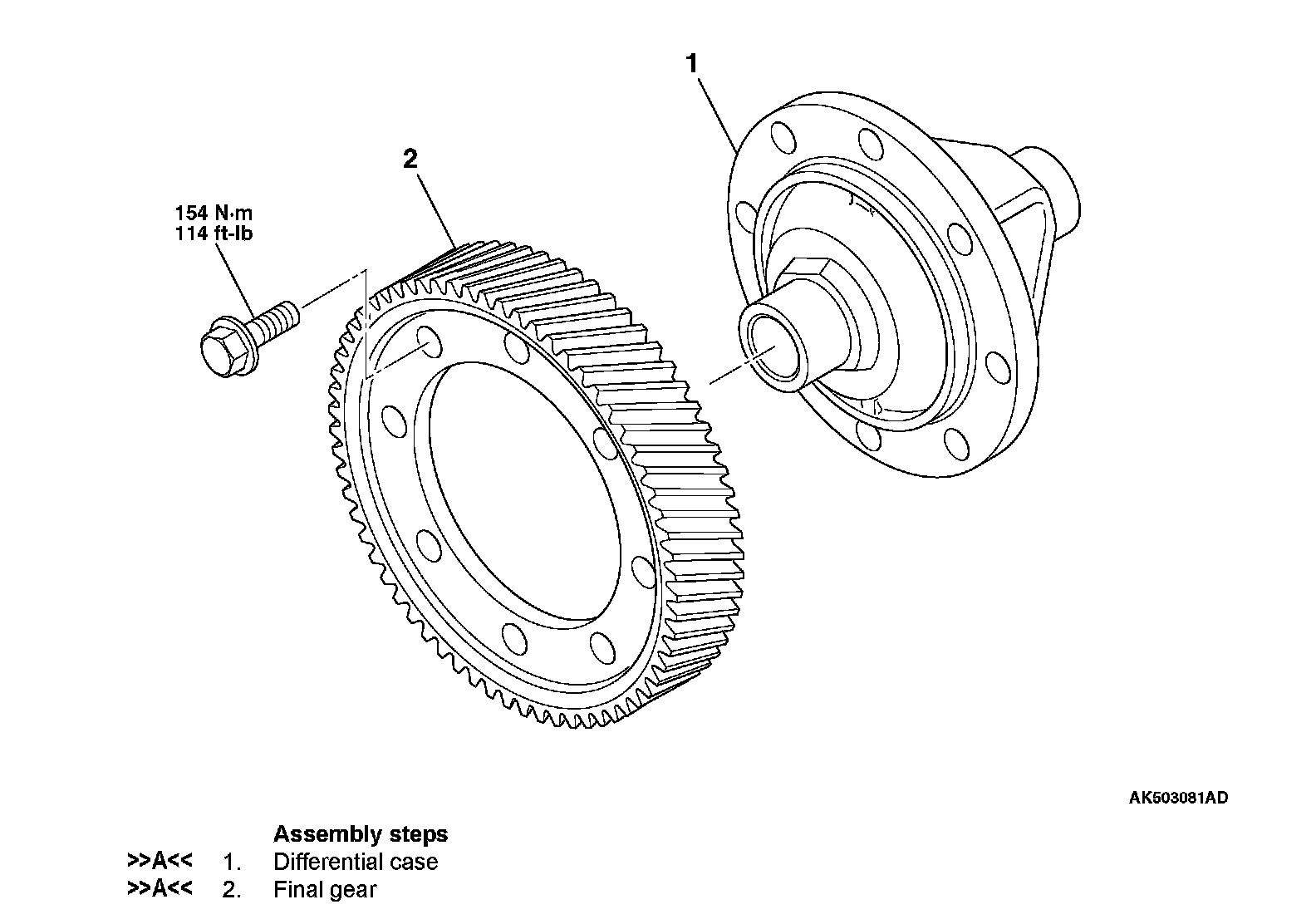

Assembly Steps 1-2:
ASSEMBLY SERVICE POINT
]]A[[ DIFFERENTIAL CASE/FINAL GEAR INSTALLATION
CAUTION

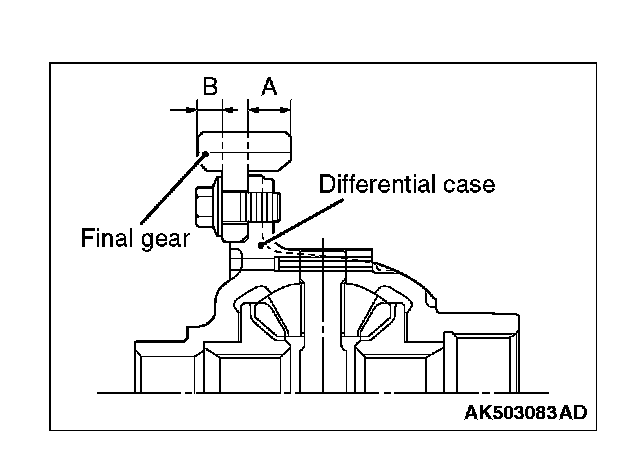

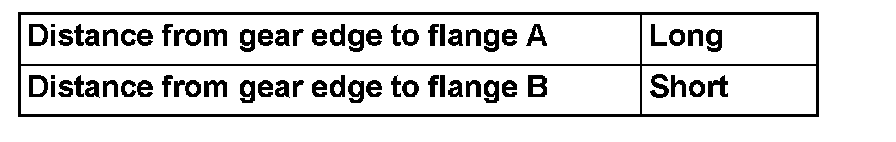

When attaching the final gear to the differential case, make sure the side with the bigger distance from the edge to the flange A face the differential case.

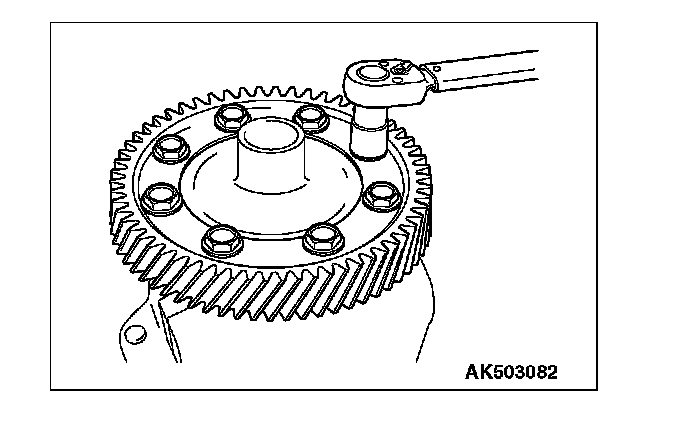

Install the final gear on the differential case, and tighten the fastening bolts to the specified torque.
Tightening torque: 154 Nm (114 ft-lb)
