Removal and Replacement
CLUTCH CONTROLREMOVAL AND INSTALLATION

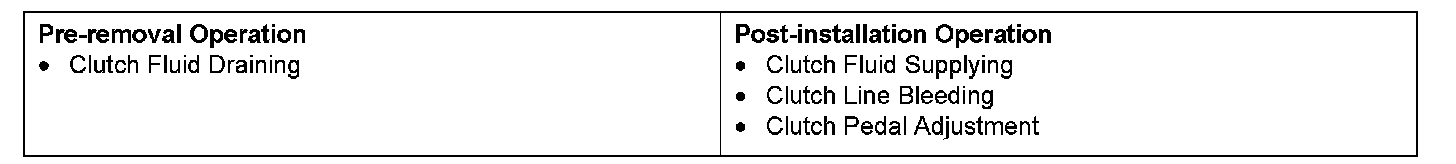

Pre-removal & Post-installation Operation:

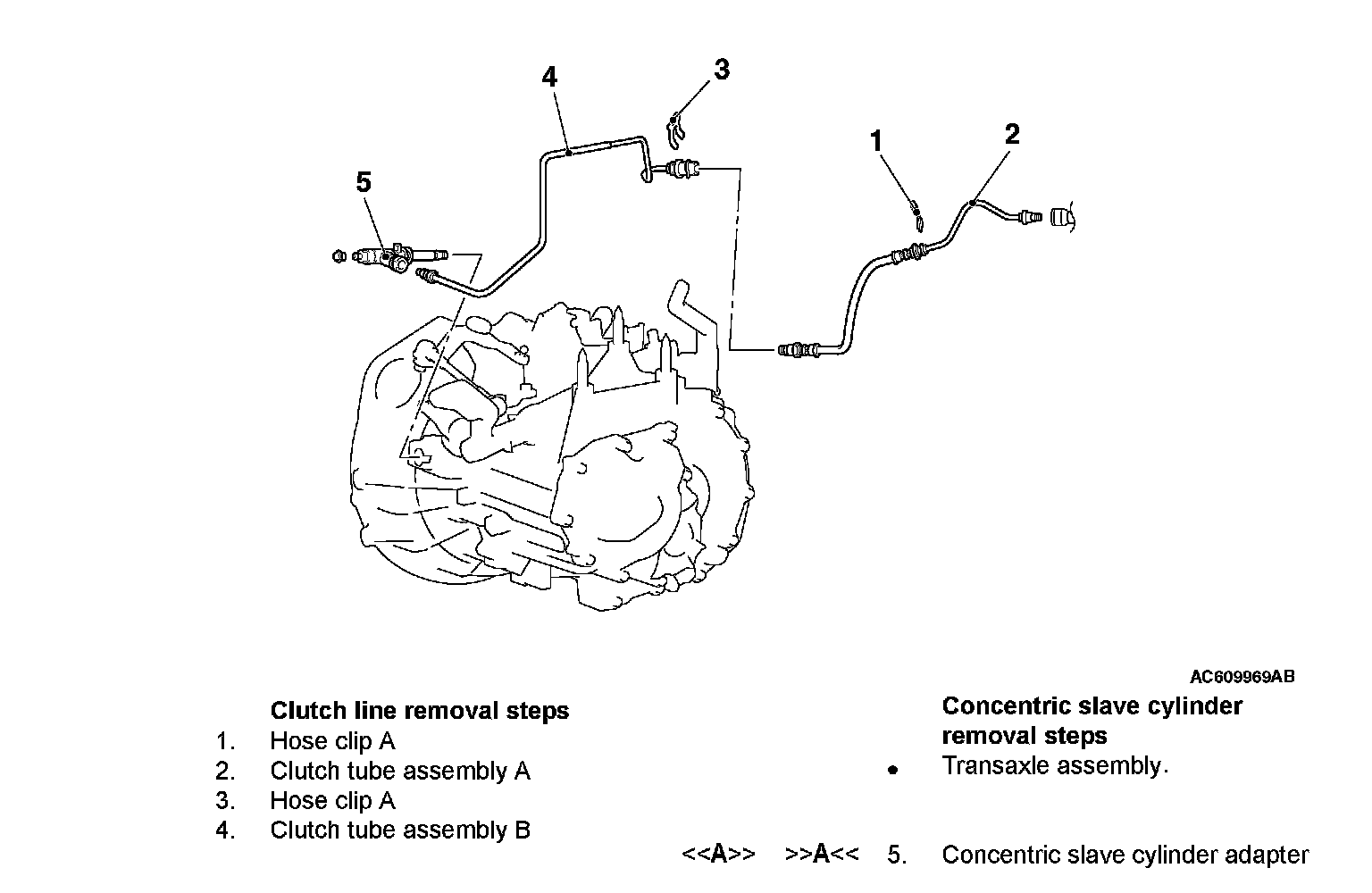

Removal Steps 1-5:
REMOVAL SERVICE POINT

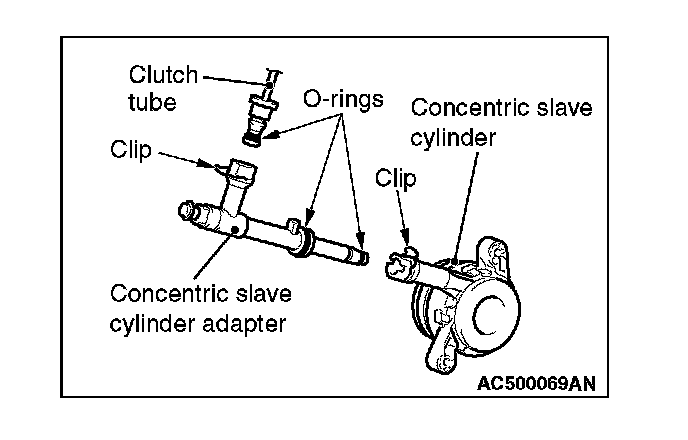

[[A]] CLUTCH TUBE CONNECTION/CONCENTRIC SLAVE CYLINDER ADAPTER REMOVAL
CAUTION
^ Do not remove the O-rings and the clips from the clutch tube, the concentric slave cylinder adapter and the concentric slave cylinder.
^ If the O-rings or the clips of the clutch tube, the concentric slave cylinder adapter and the concentric slave cylinder are damaged, replace each assembly.
INSTALLATION SERVICE POINT

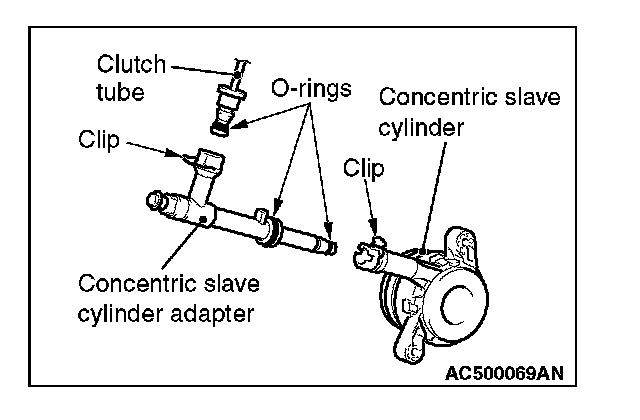

]]A[[ CONCENTRIC SLAVE CYLINDER ADAPTER/CLUTCH TUBE CONNECTION INSTALLATION
CAUTION
^ Check that the O-rings and the clips are not damaged before installing the clutch tube, the concentric slave cylinder adapter and the concentric slave cylinder.
^ If the O-rings of the clutch tube, the concentric slave cylinder adapter and the concentric slave cylinder and their installation positions are contaminated, clean with the clutch fluid before installation.
