Suspension - Revised Rear Suspension Torque Specs.

No.: TSB-07-34-001

DATE: June, 2007

MODEL:
2008 Lancer

SUBJECT:
TIGHTENING TORQUE FOR REAR SUSPENSION - SERVICE MANUAL REVISION

TSB Revision: TSB-07-34-001

PURPOSE

The tightening torque for the parts of the rear suspension are changed in the applicable Service Manual. This Service Bulletin contains the changed tightening torque.

AFFECTED VEHICLES
2008 Lancer





AFFECTED SERVICE MANUALS

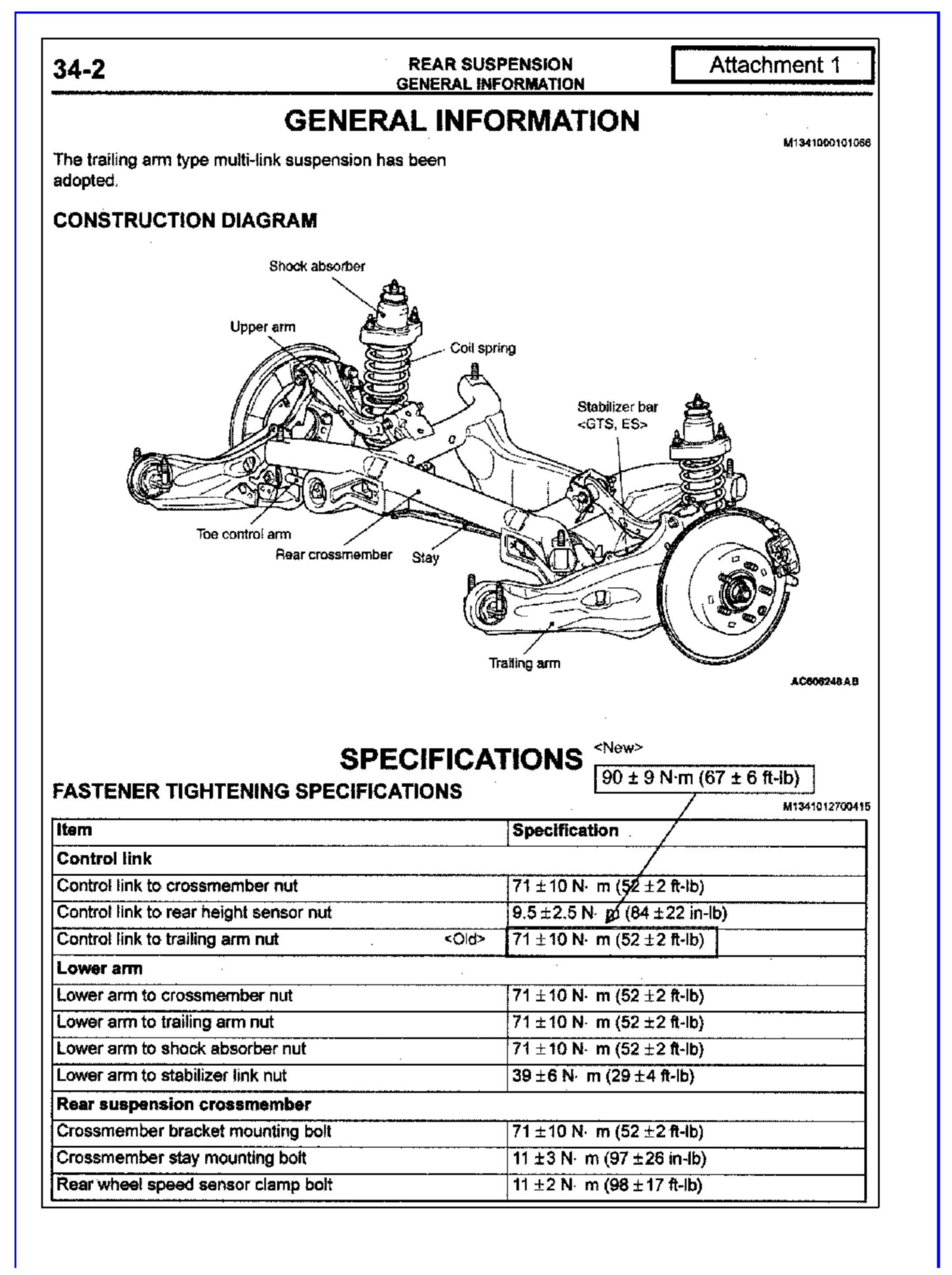

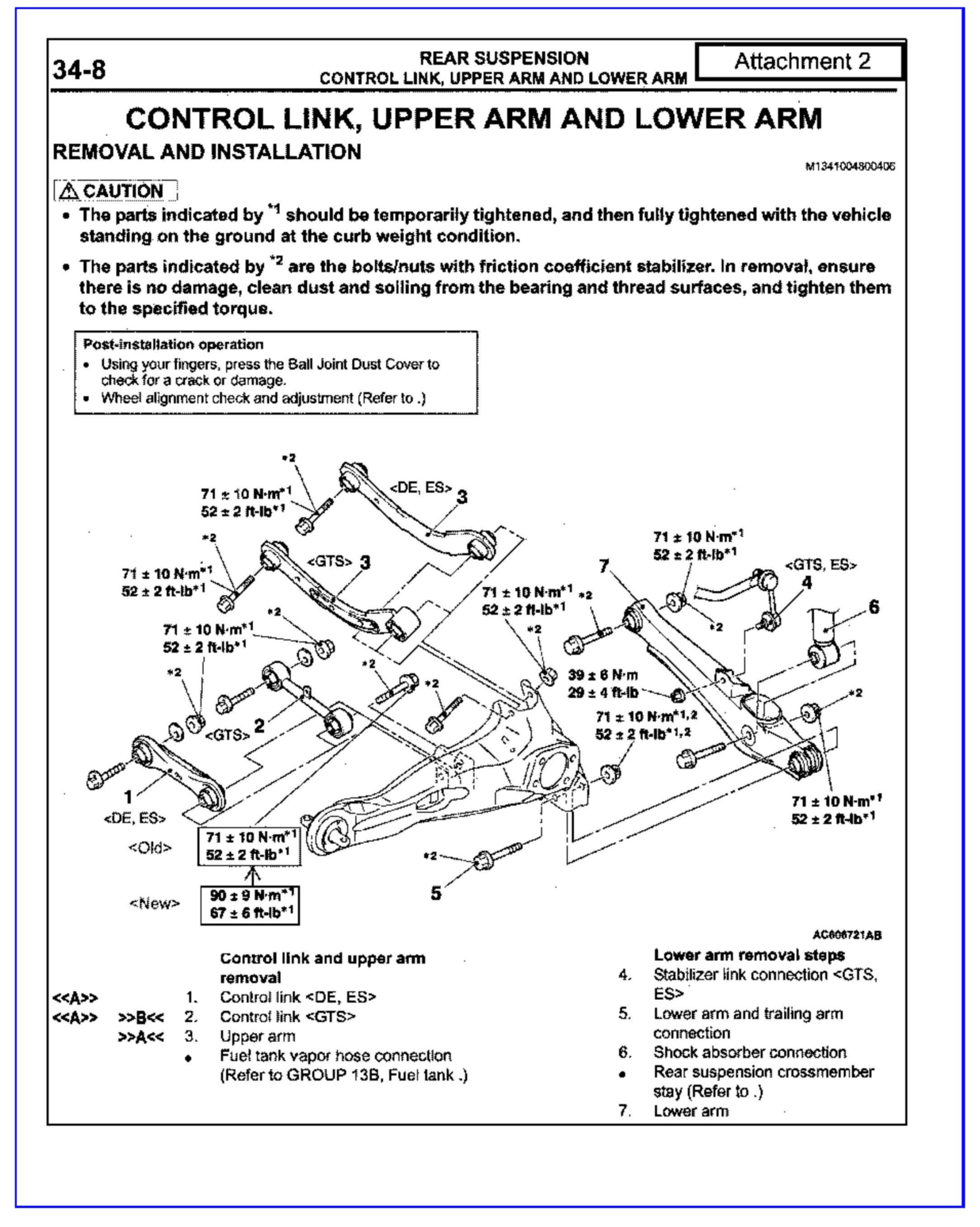

Pages 34-2, 34-8 - Attachment 1, 2

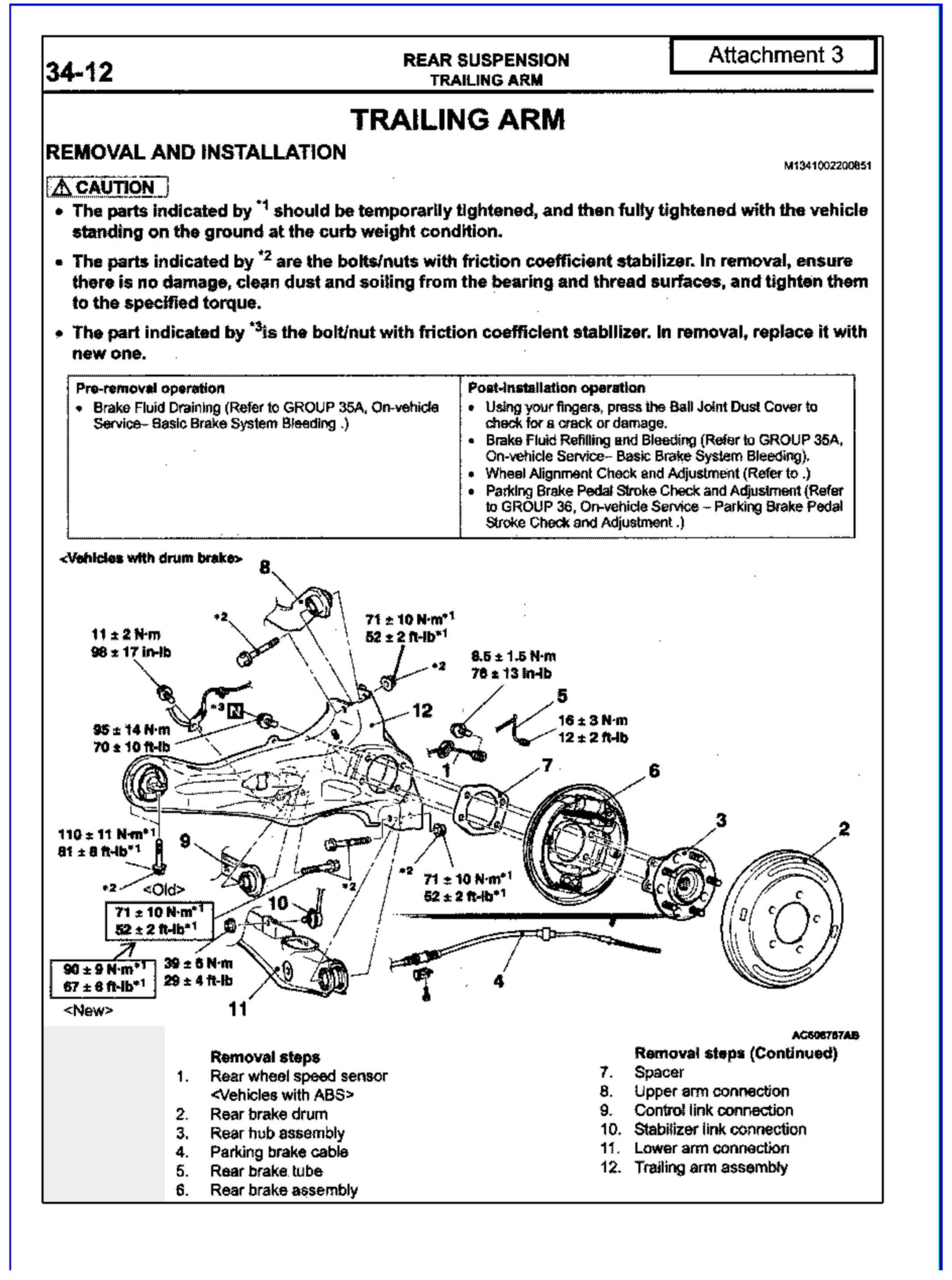

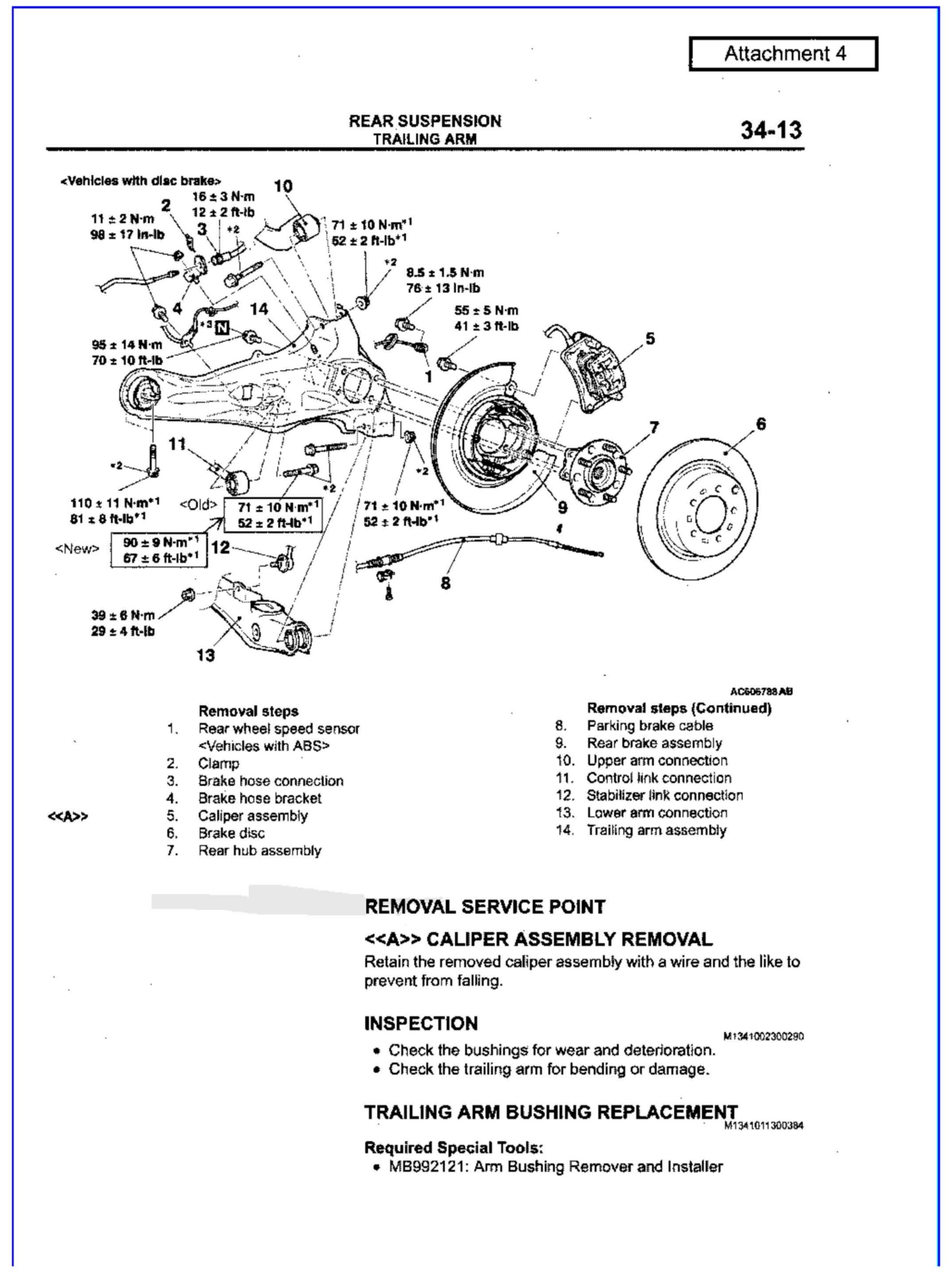

Pages 34-12, 34-13 - Attachment 3, 4
