Steering - Revised Steering Box And Linkage Art Work
No.: TSB-08-37-004Date: May, 2008
Model:
2007 Outlander, 2008 Lancer
SUBJECT:
CORRECTED INFORMATION FOR POWER STEERING GEARBOX AND LINKAGE - SERVICE MANUAL REVISION
PURPOSE
The illustrations relating to the power steering gearbox and linkage are incorrect in the applicable Service Manuals. This Technical Service Bulletin provides corrected illustrations.
AFFECTED VEHICLE(S)
2007 - on Outlander
2008 - on Lancer

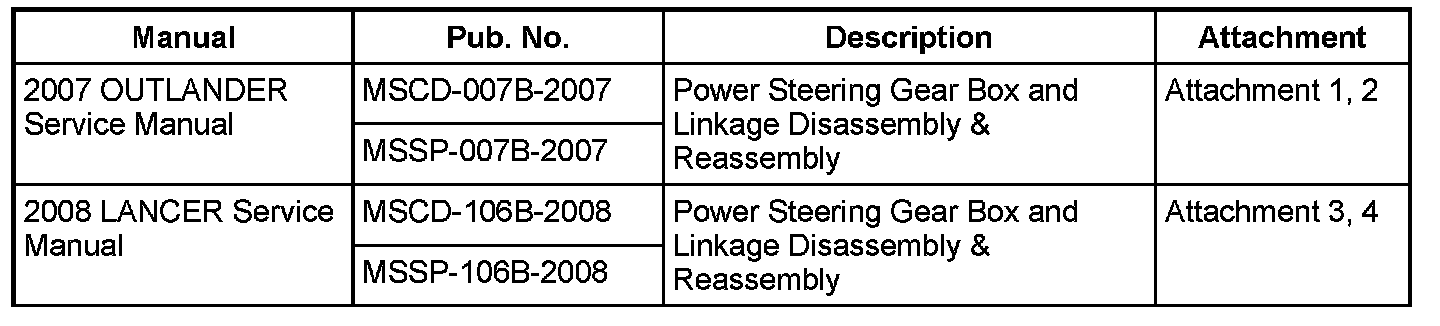

APPLICABLE MANUAL(S)

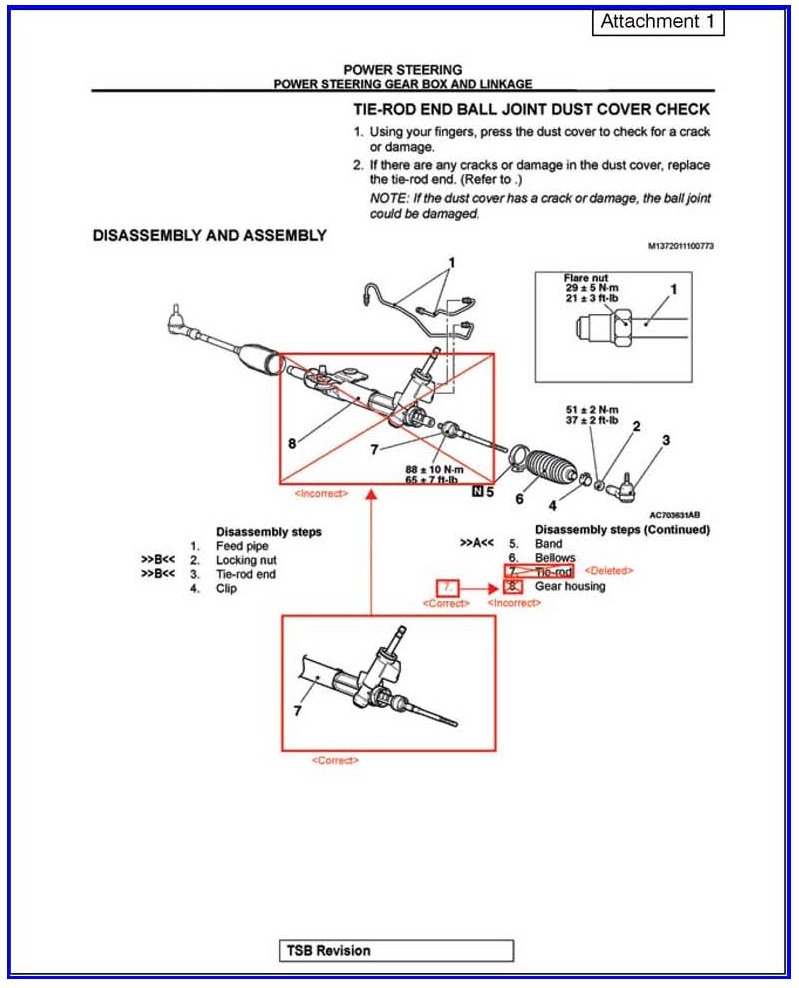

Attachment 1

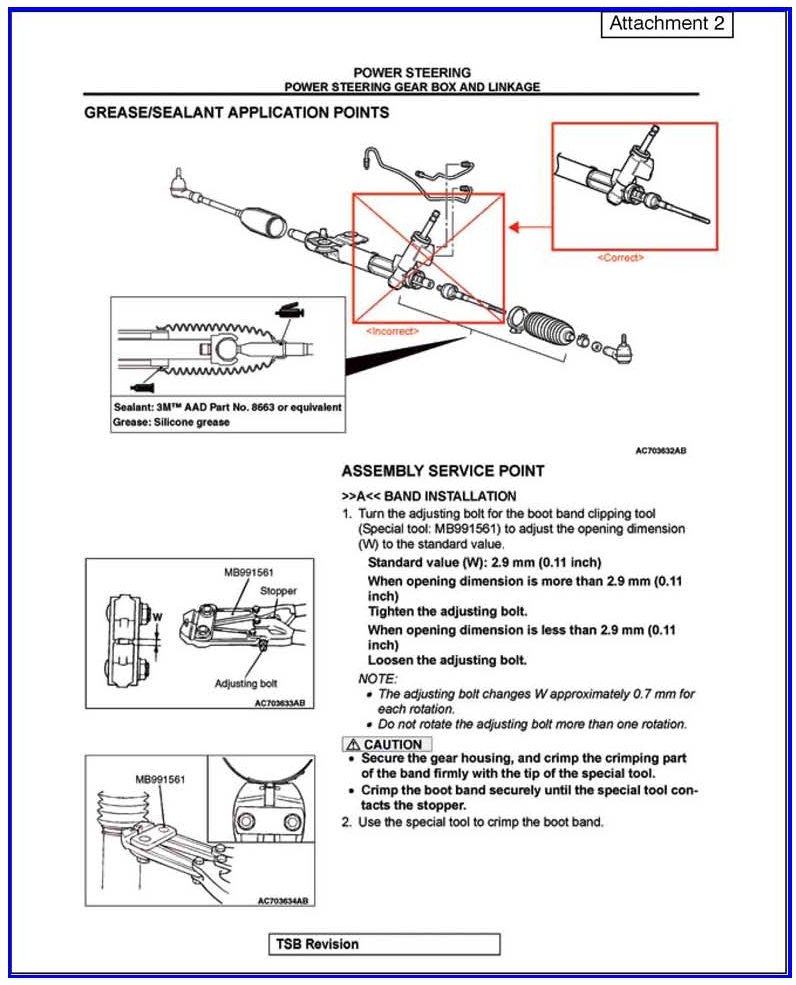

Attachment 2

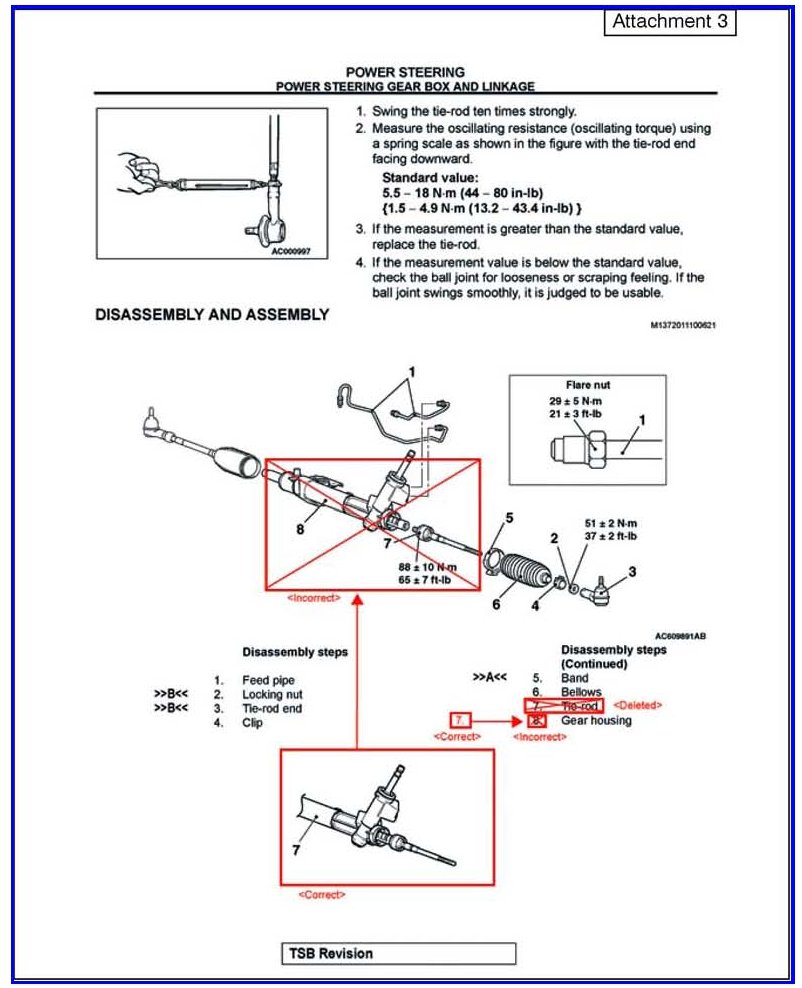

Attachment 3
Attachment 4
Updated Service Manual Pages
