Trailing Arm Bushing Replacement

TRAILING ARM BUSHING REPLACEMENT

Required Special Tools:
^ MB992121: Arm Bushing Remover and Installer
^ MB992125: Arm Bushing Base

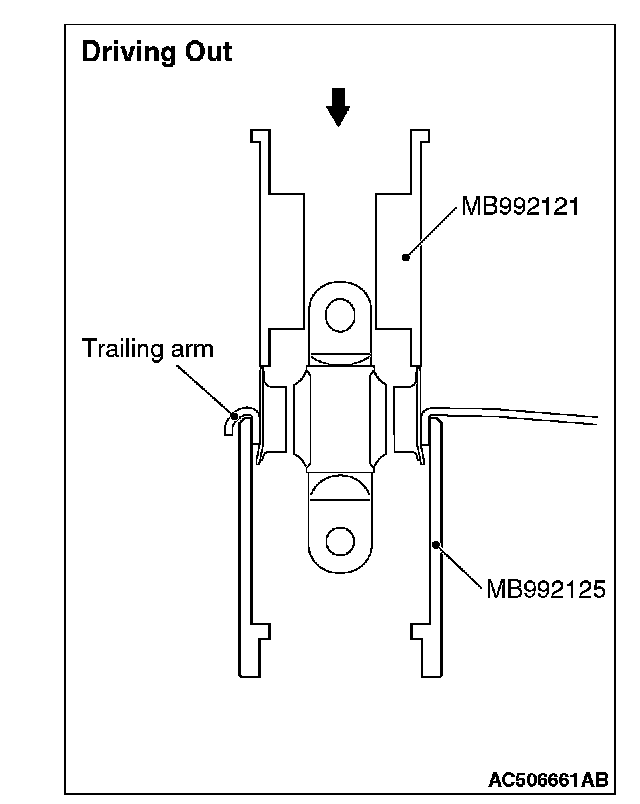

1. Use the special tools MB992121 and MB992125 to remove the trailing arm bushing:





2. Determine the installation direction and the installation position of the trailing arm bushing.
1) Install so that the protruding side of the trailing arm bushing inner pipe faces inside the body.

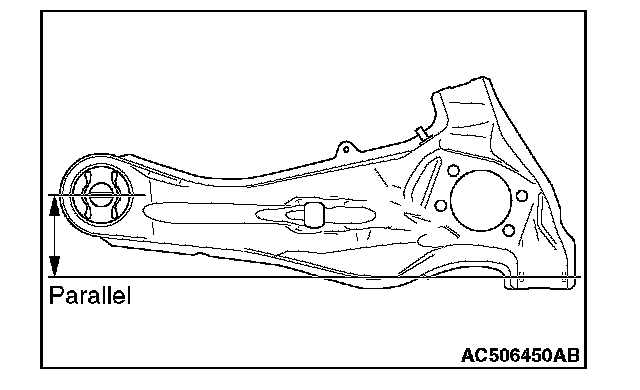

2) Position the trailing arm bushing inner space as shown in the figure.

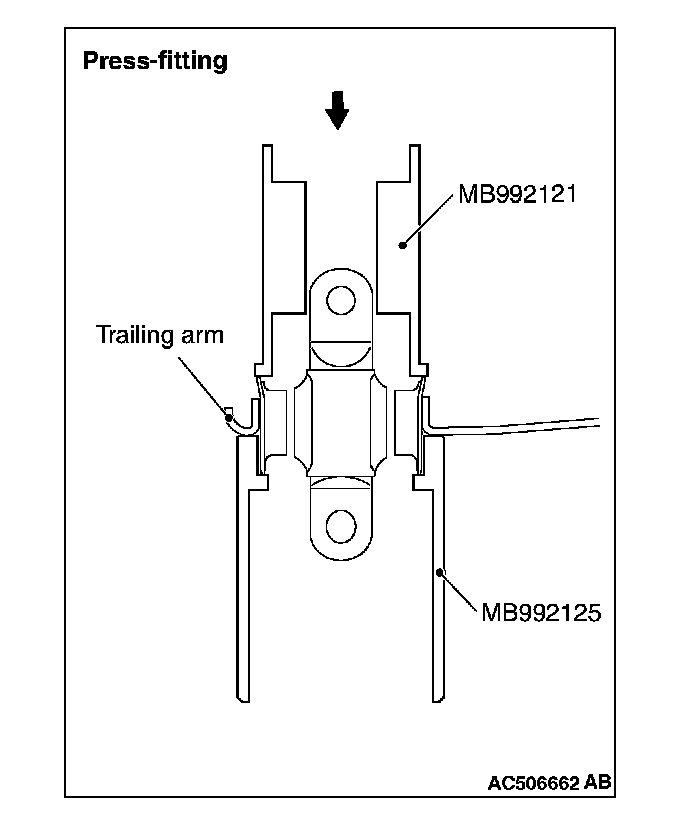

3. Use the special tools MB992121 and MB992125 to press-fit the trailing arm bushing up to the position shown in the figure:
