Removal and Installation

This document has been updated per manufacturer TSB #07-34-001.

TRAILING ARM

REMOVAL AND INSTALLATION

CAUTION
^ The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground at the curb weight condition.
^ The parts indicated by *2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
^ The part indicated by *3 is the bolt/nut with friction coefficient stabilizer. In removal, replace it with new one.

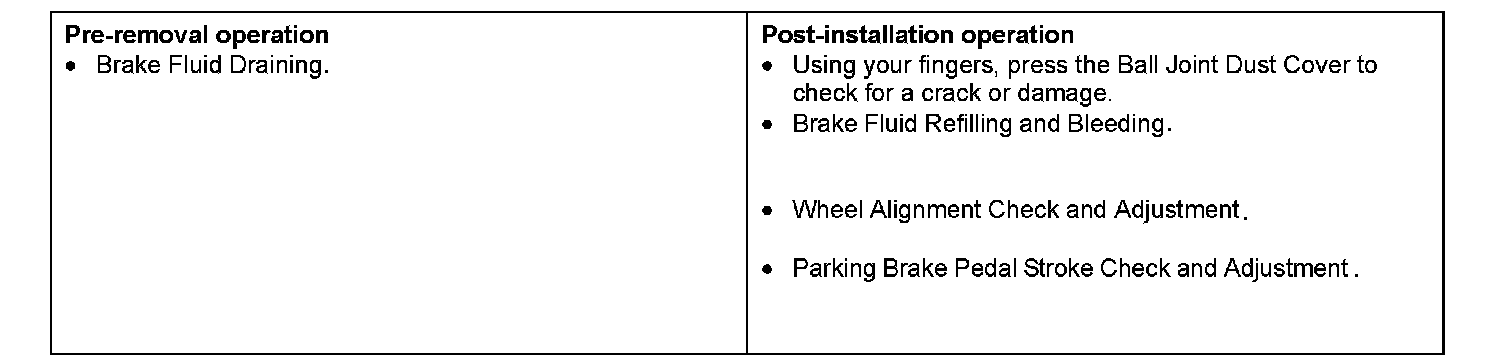

Pre-removal & Post-installation Operation:

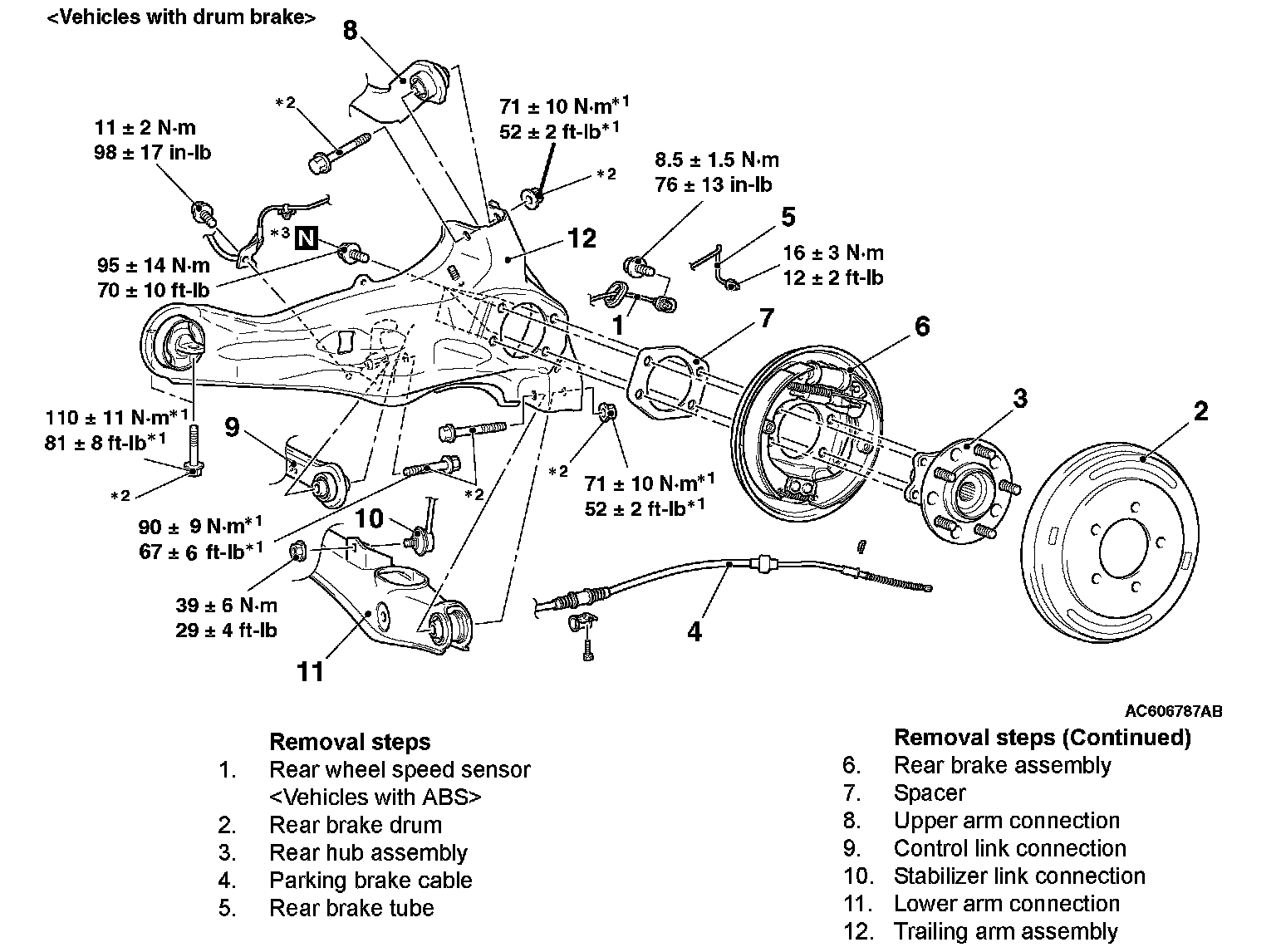

Removal Steps 1-12 (Updated By TSB# 07-34-001):

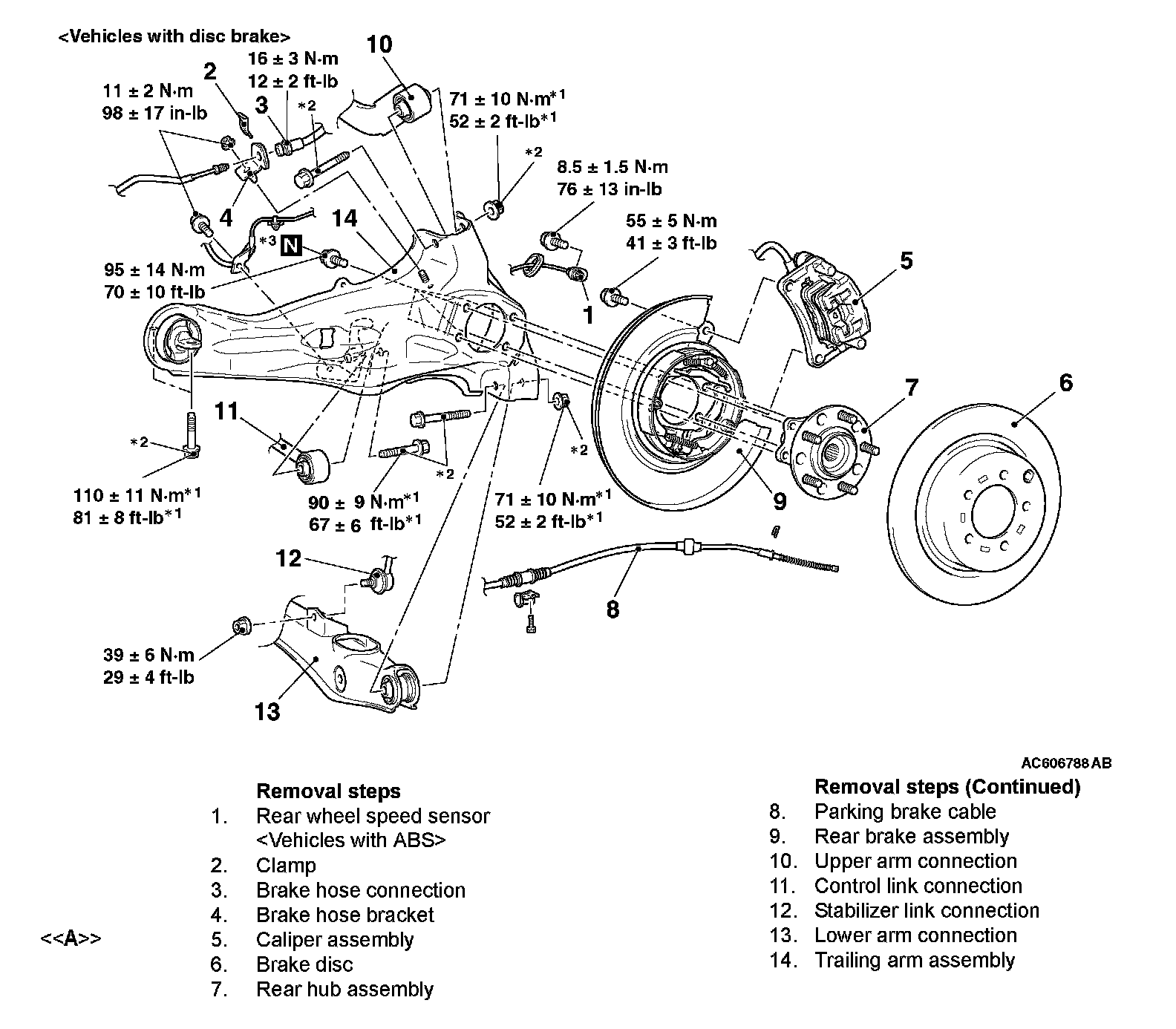

Removal Steps 1-14 (Updated By TSB# 07-34-001):

REMOVAL SERVICE POINT

[[A]] CALIPER ASSEMBLY REMOVAL
Retain the removed caliper assembly with a wire and the like to prevent from falling.
