Rear Suspension

SHOCK ABSORBER ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION
^ The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground at the curb weight condition.
^ The parts indicated by *2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

Pre-removal & Post-installation Operation:

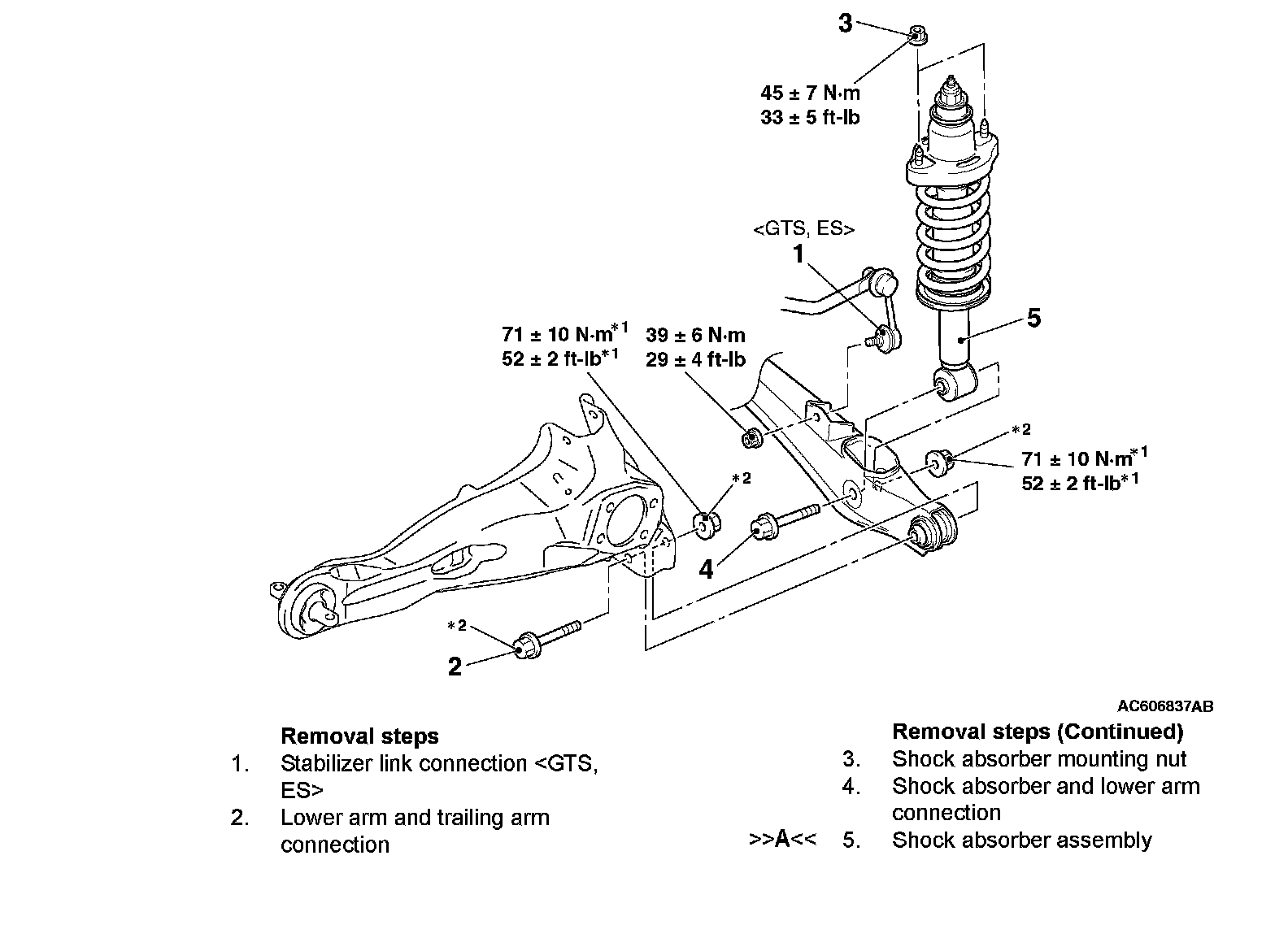

Removal Steps 1-5:

INSTALLATION SERVICE POINT

]]A[[ SHOCK ABSORBER ASSEMBLY INSTALLATION

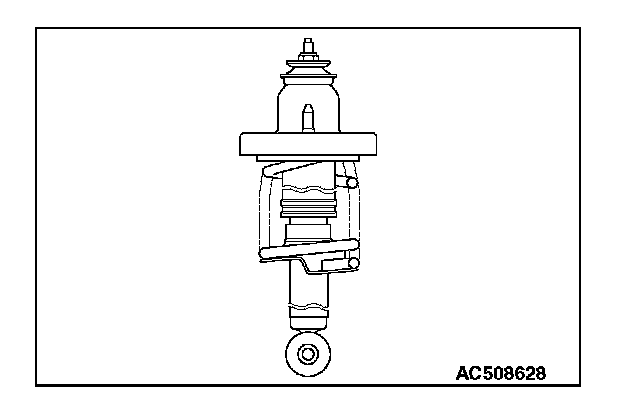

Install the shock absorber assembly so that the coil spring end faces the rear of the vehicle.
