Front Suspension

STABILIZER BAR

REMOVAL AND INSTALLATION

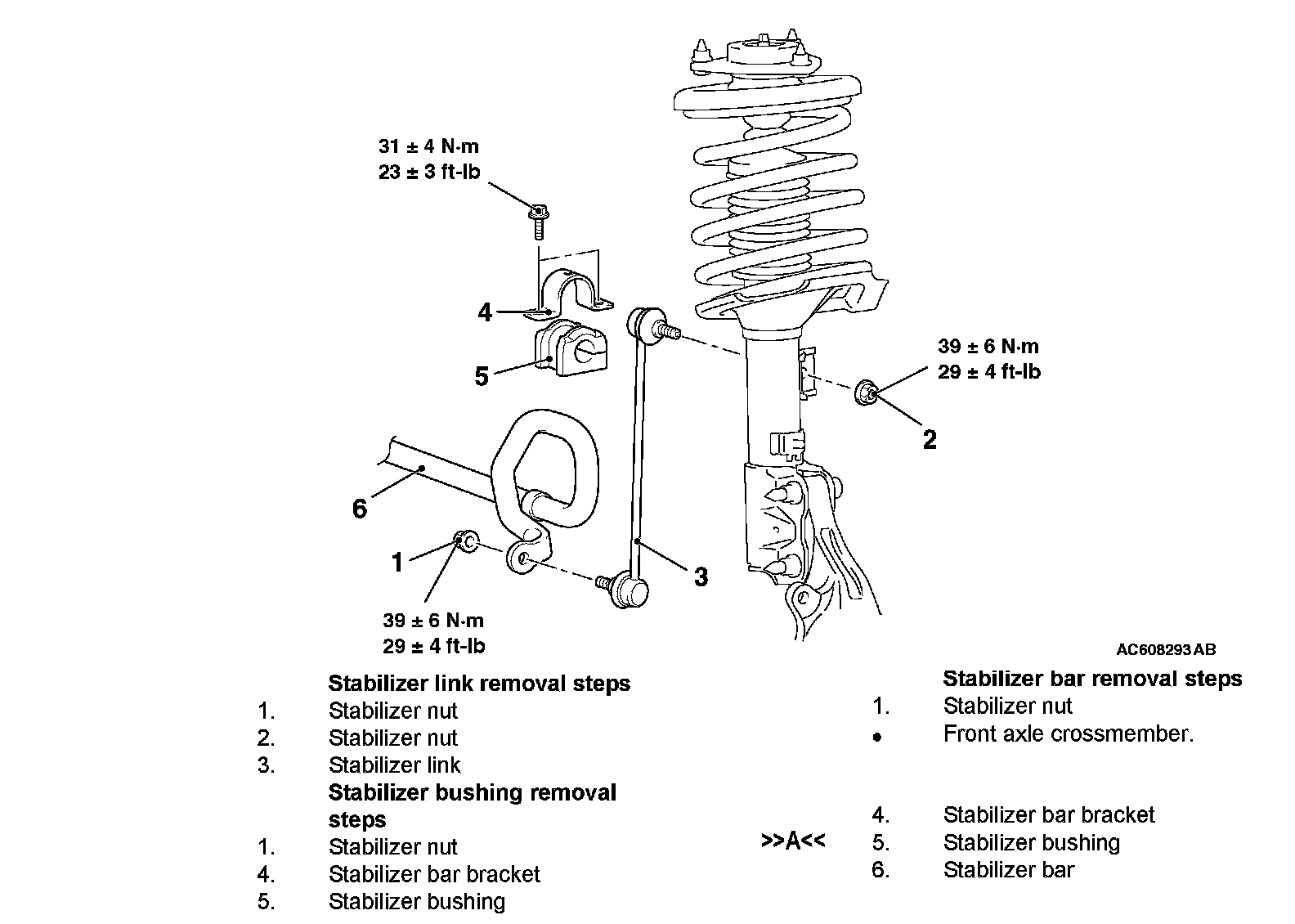

Stabilizer Link Removal Steps 1-3 / Stabilizer Bushing Removal Steps 1-5 / Stabilizer Bar Removal Steps 1-6:





INSTALLATION SERVICE POINT

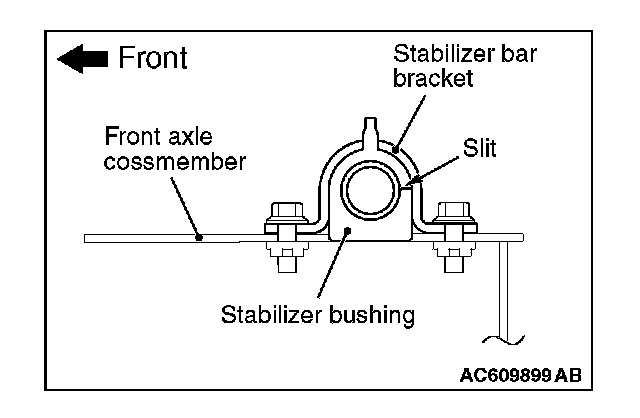

]]A[[ STABILIZER BUSHING INSTALLATION





Install the stabilizer bushing as shown in the figure.
