Front Suspension

LOWER ARM

REMOVAL AND INSTALLATION

CAUTION
^ The parts indicated by *1 indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
^ The parts indicated by *2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

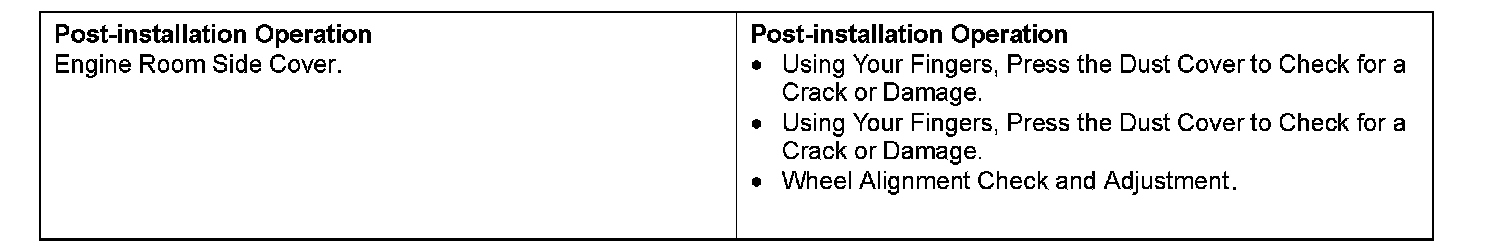

Post-installation Operation:

Removal Steps 1-2:

REMOVAL SERVICE POINT

[[A]] LOWER ARM ASSEMBLY REMOVAL

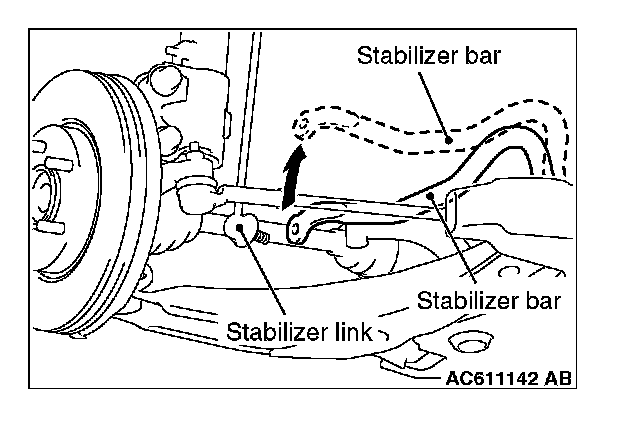

1. Raise up the stabilizer bar as shown in the figure and remove it.
