Removal and Replacement

POWER STEERING OIL PUMP ASSEMBLY

REMOVAL AND INSTALLATION

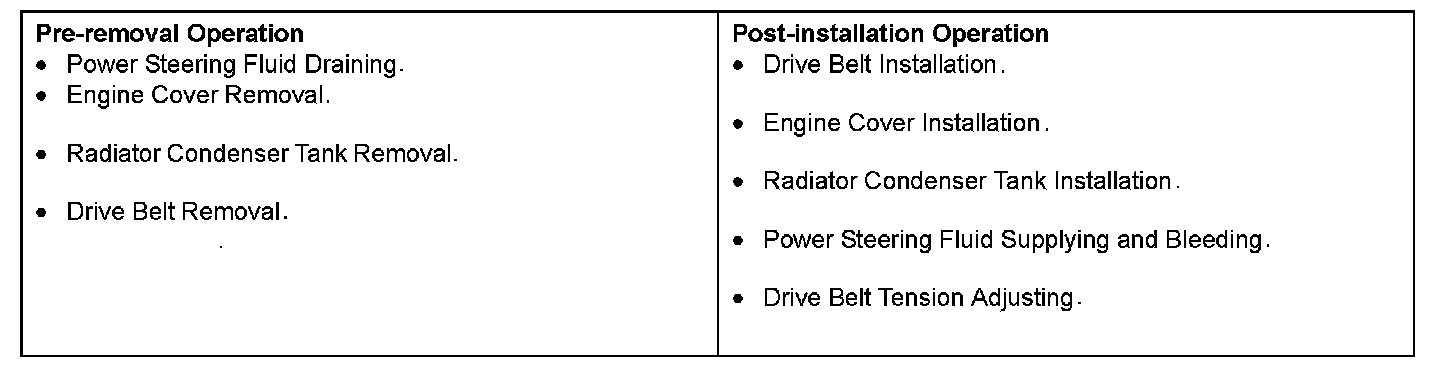

Pre-removal & Post-installation Operation:

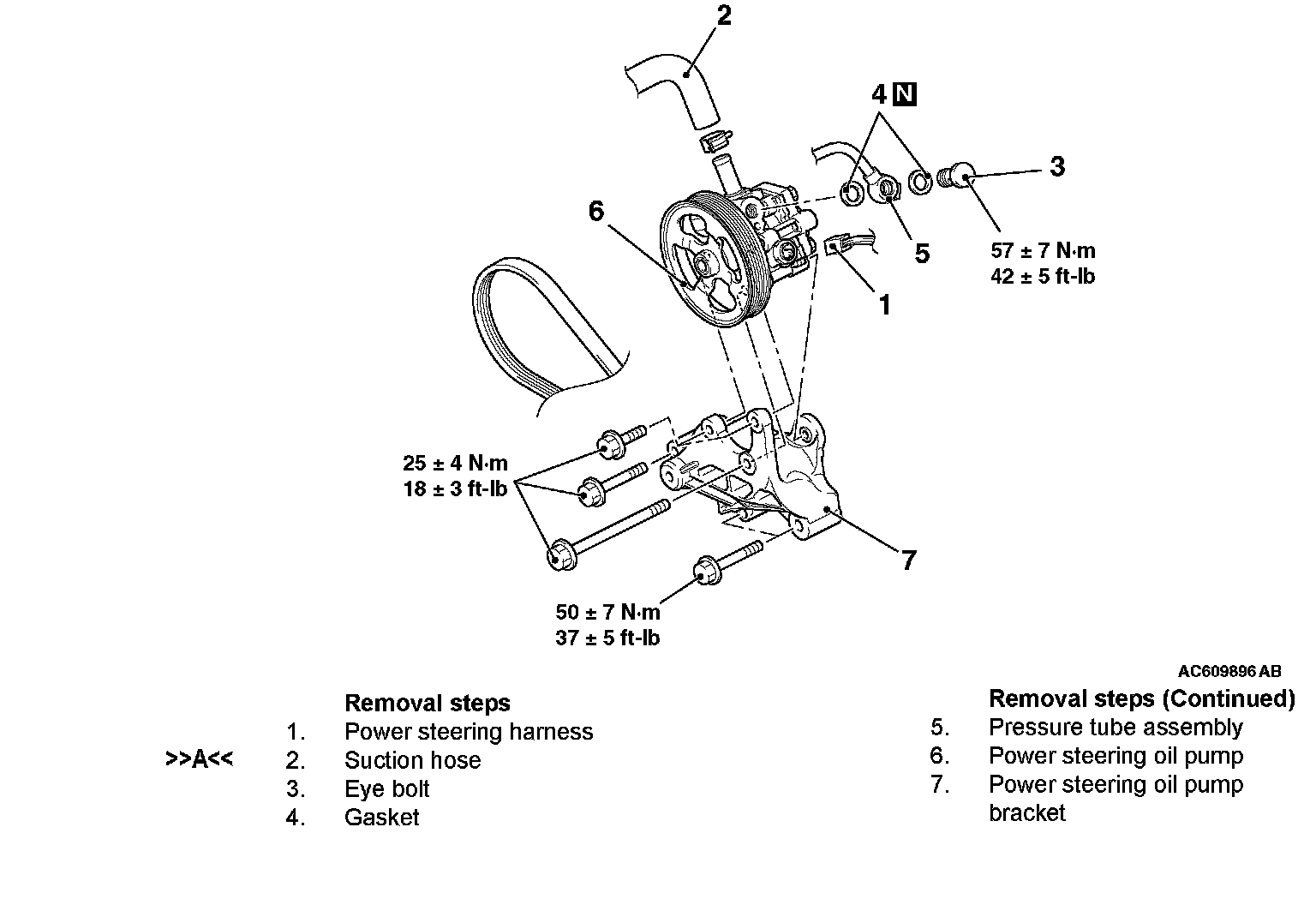

Removal Steps 1-7:





INSTALLATION SERVICE POINT

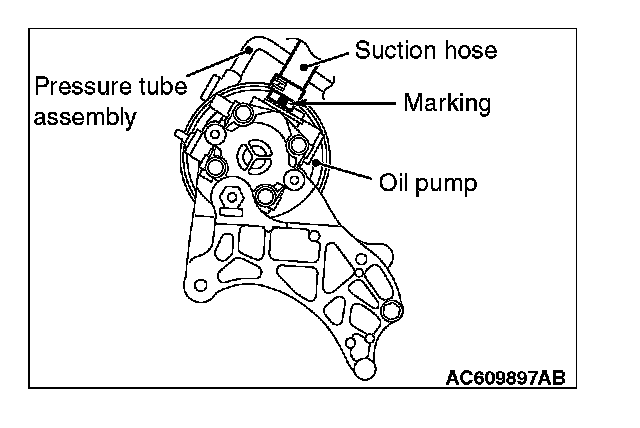

]]A[[ SUCTION HOSE INSTALLATION





Install the suction hose so that the marking is positioned toward vehicle left side as shown in the illustration.
