Flywheel

Flywheel

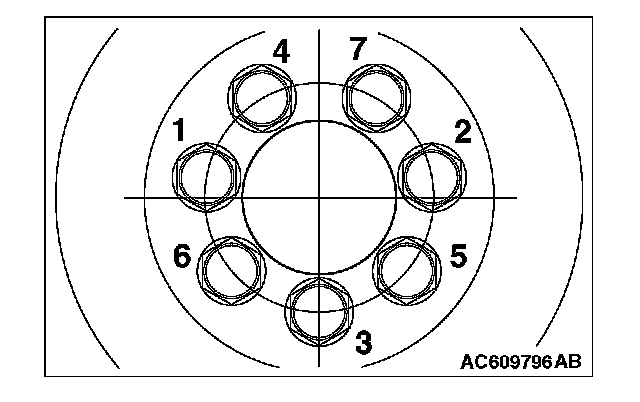

Tighten flywheel bolts to temporary torque 40 Nm (30 ft-lb) in the order shown in the illustration.
Tighten flywheel bolts to temporary torque in the order shown in the illustration.
Tightening torque: 130 Nm (96 ft-lb)
