System Specifications

CYLINDER BLOCK
Underhead length of bearing cap bolt
Standard value 75.3 mm (2.96 in)
Crankshaft end play
Standard value 0.05 - 0.25 mm (0.002 - 0.010 in)
Limit 0.4 mm (0.016 in)
Crankshaft journal oil clearance
Standard value 0.012 - 0.030 mm (0.0005 - 0.0012 in)
Limit 0.1 mm (0.004 in)
Distortion of cylinder block top surface
Standard value 0.05 mm (0.002 in)
Limit 0.02 mm (0.0008 in)
Grinding limit of cylinder block top surface
Limit 0.2 mm (0.008 in)
Cylinder block cylinder bore
Standard value 86 mm (3.4 in)
Cylindricity of cylinder block
Standard value 0.15 mm (0.006 in)

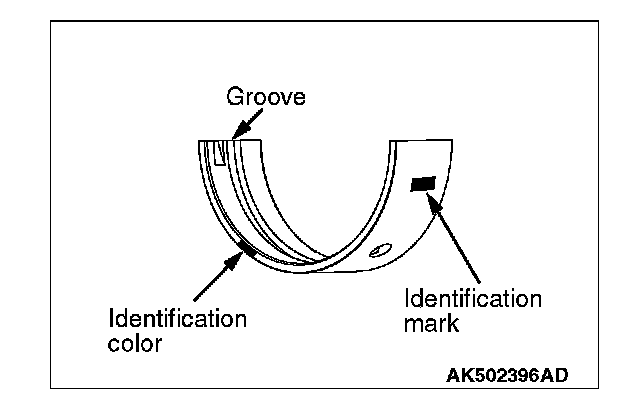

CRANKSHAFT BEARING UPPER

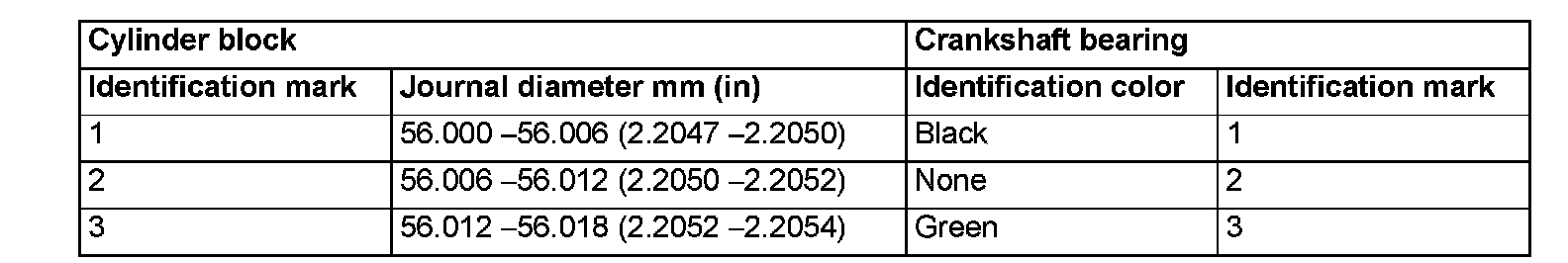

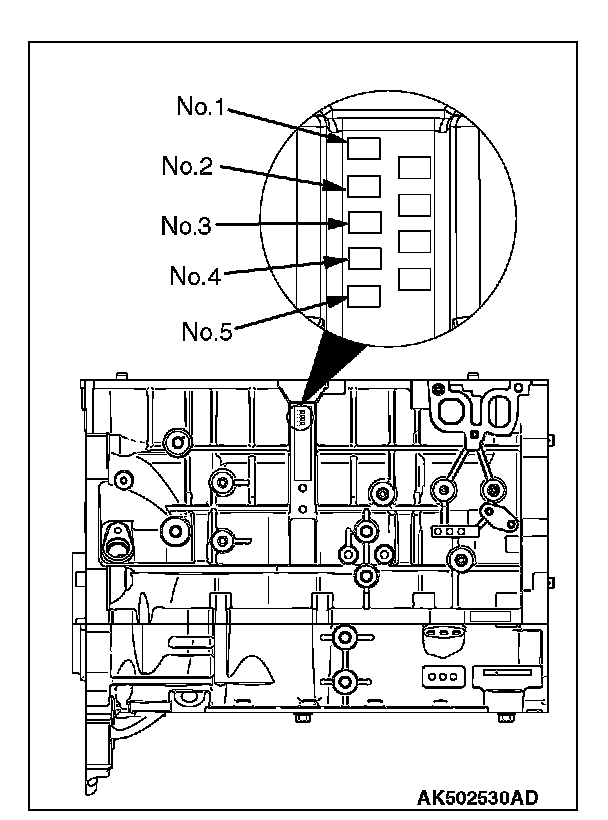

When replacing the crankshaft bearing upper, select a bearing with the size corresponding to the crankshaft journal diameter in the table below.

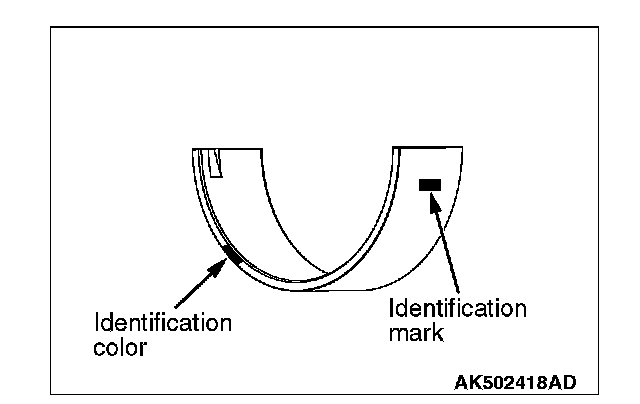

CRANKSHAFT BEARING LOWER

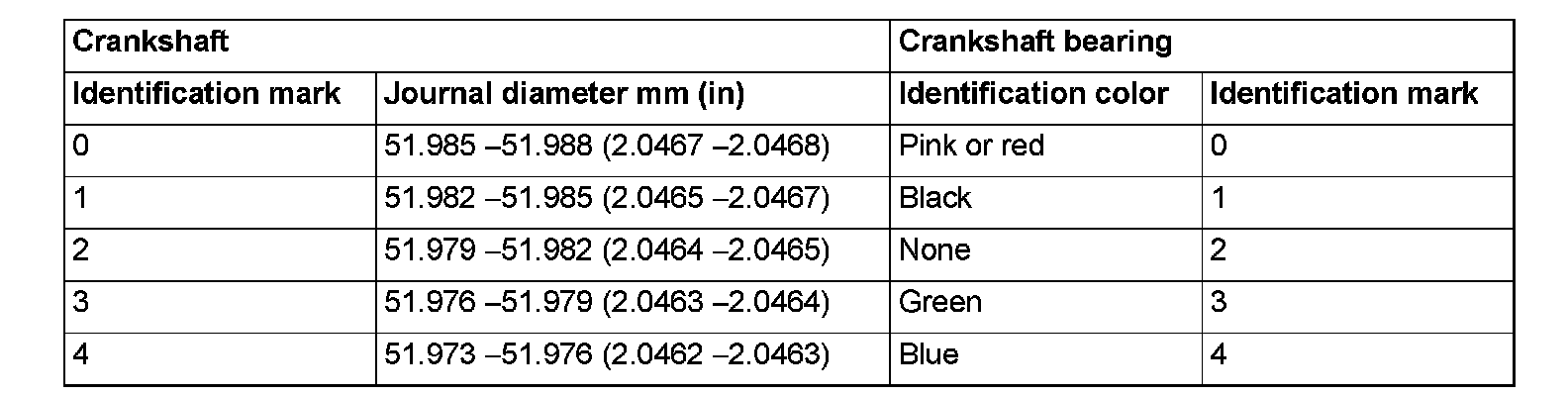

When replacing the crankshaft bearing lower, select a bearing with the size corresponding to the crankshaft journal diameter in the table below.








CRANKSHAFT BEARING CAP CRANKSHAFT BEARING CAP BOLT





Install the crankshaft bearing cap with reference to the identification mark as illustrated.

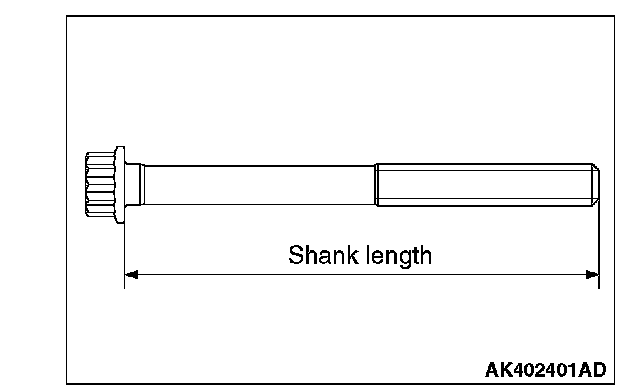

Make sure that the underhead length of the bolt is at or below the limit before installing the crankshaft bearing cap bolt. If the length exceeds the limit, replace the bolt with a new one.

Limit 75.3 mm (2.96 inch)

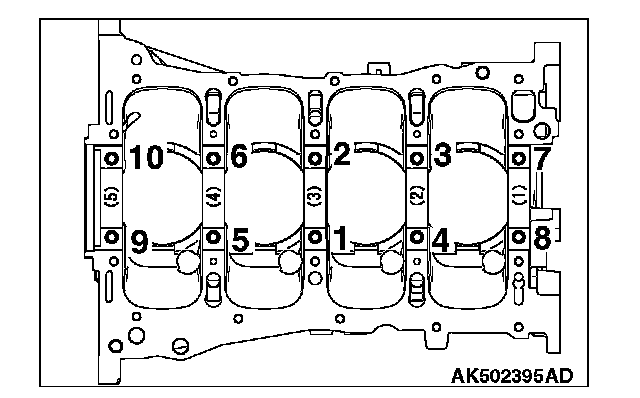

Tighten crankshaft bearing cap bolts to the torque of 26.5 ± 2.0 Nm (20 ± 1 ft-lb) according to the tightening order.





CAUTION
^ If the tightening angle is less than 45°, tightening performance may not be secured. Use caution to the tightening angle during tightening.
^ If the tightening angle becomes more than 45°, completely loosen bolts and start tightening over again according to the procedure.

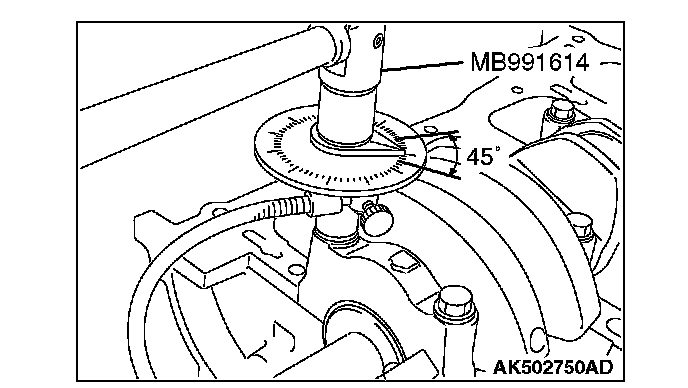

Use special tool MB991614 to tighten bolts 45° according to the tightening order.

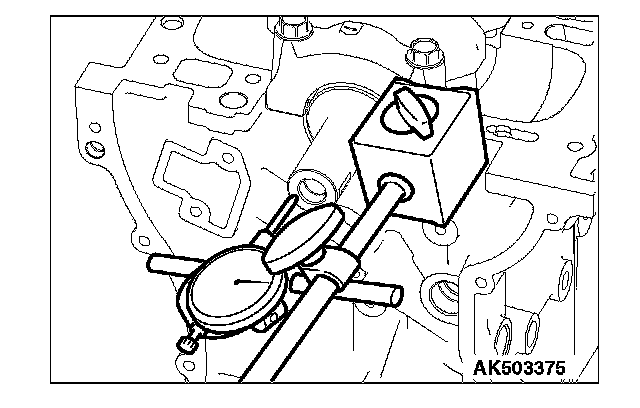

Check end play of the crankshaft after installing the crankshaft bearing cap. If the end play exceeds the limit, replace the thrust bearing.
Standard value 0.05 - 0.25 mm (0.002 - 0.010 inch)
Limit 0.4 mm (0.016 inch)

Clearance of connecting rod big end thrust
Standard value 0.10 - 0.25 mm (0.004 - 0.010 in)
Limit 0.4 mm (0.016 in)
Outside diameter of connecting rod bolt
Limit 0.1 mm (0.004 in)
Connecting rod bearing oil clearance
Standard value 0.018 - 0.045 mm (0.0007 - 0.0018 in)
Limit 0.1 mm (0.004 in)
Connecting rod cap bolt 5.0 Nm (44 in-lb) plus 20 Nm (15 ft-lb) + 90°

Piston pin press-fit load (pound)
Standard value 7,500 - 17,500 N (1,686 - 3,934 pound)
Clearance between piston ring and ring groove
No.1
Standard value 0.03 - 0.07 mm (0.001 - 0.003 in)
Limit 0.1 mm (0.004 in)
No.2
Standard value 0.03 - 0.07 mm (0.001 - 0.003 in)
Limit 0.1 mm (0.004 in)
Piston ring end gap
No.1
Standard value 0.15 - 0.28 mm (0.006 - 0.011 in)
Limit 0.8 mm (0.03 in)
No.2
Standard value 0.30 - 0.45 mm (0.012 - 0.018 in)
Limit 0.8 mm (0.03 in)
Oil
Standard value 0.10 - 0.35 mm (0.004 - 0.014 in)
Limit 1.0 mm (0.004 in)

Idler pulley bolt 48 ± 7 Nm (36 ± 4 ft-lb)
