Ignition Switch: Service and Repair
REMOVAL AND INSTALLATIONCAUTION: To remove the driver airbag module, refer to SRS Service Precautions and Air Bag Module(s) and Clock Spring.

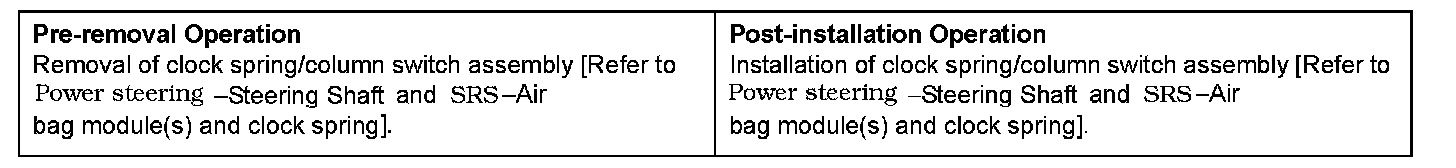

Pre-Removal & Post-Installation Operation:

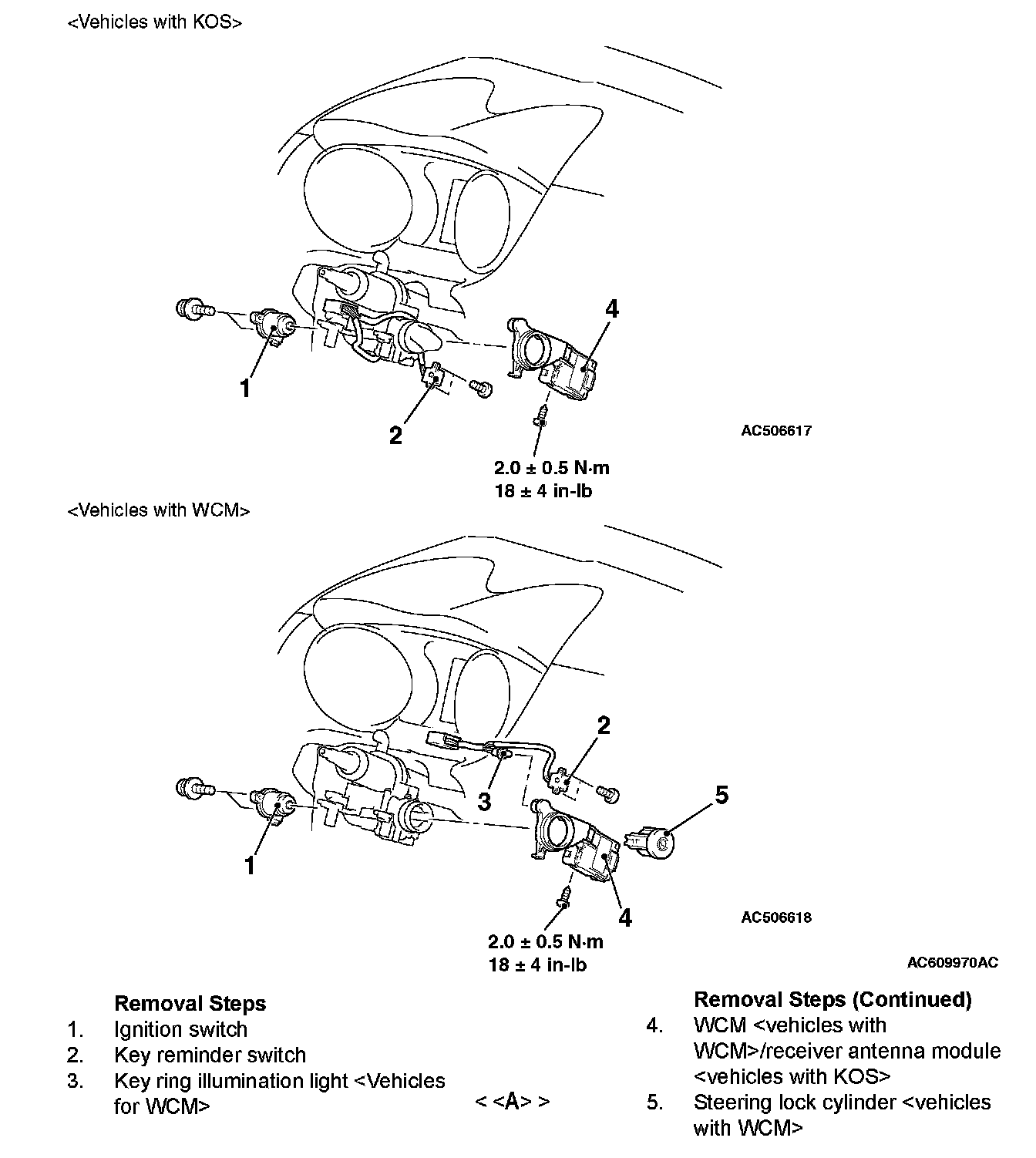

Removal Steps 1-5:
REMOVAL SERVICE POINTS
<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key into the steering lock cylinder, and turn the ignition key to the ACC position.

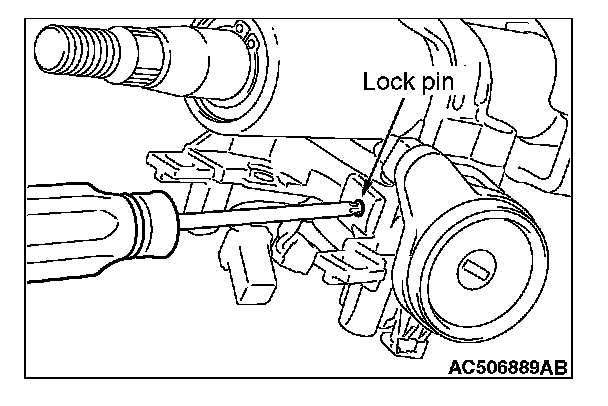

2. With using a cross-headed screw driver (small) or similar items to press in the lock pin, remove the ignition key, and then remove the steering lock cylinder.
