Wheel Speed Sensor: Service and Repair

WHEEL SPEED SENSOR

REMOVAL AND INSTALLATION

CAUTION
The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.

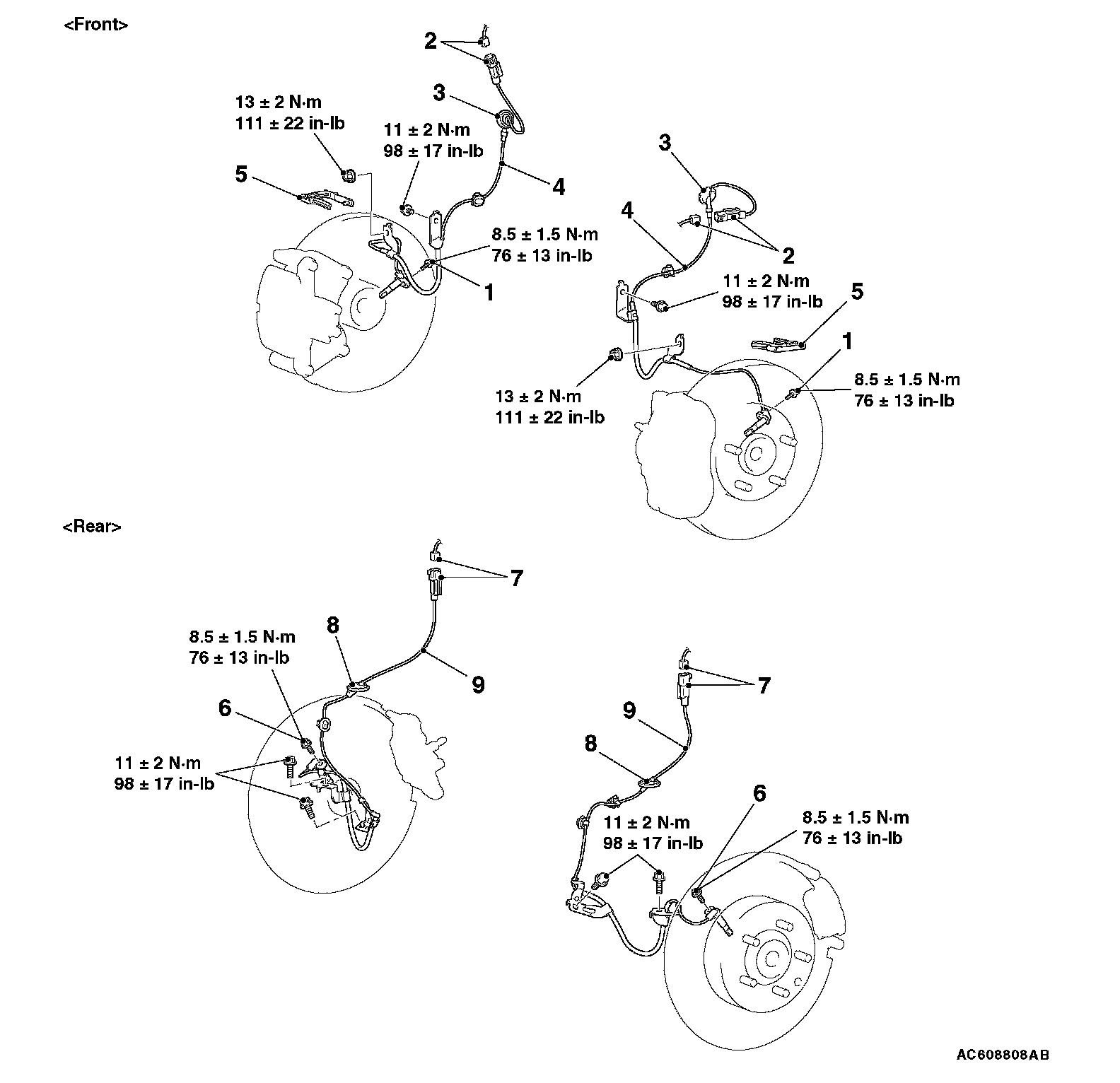

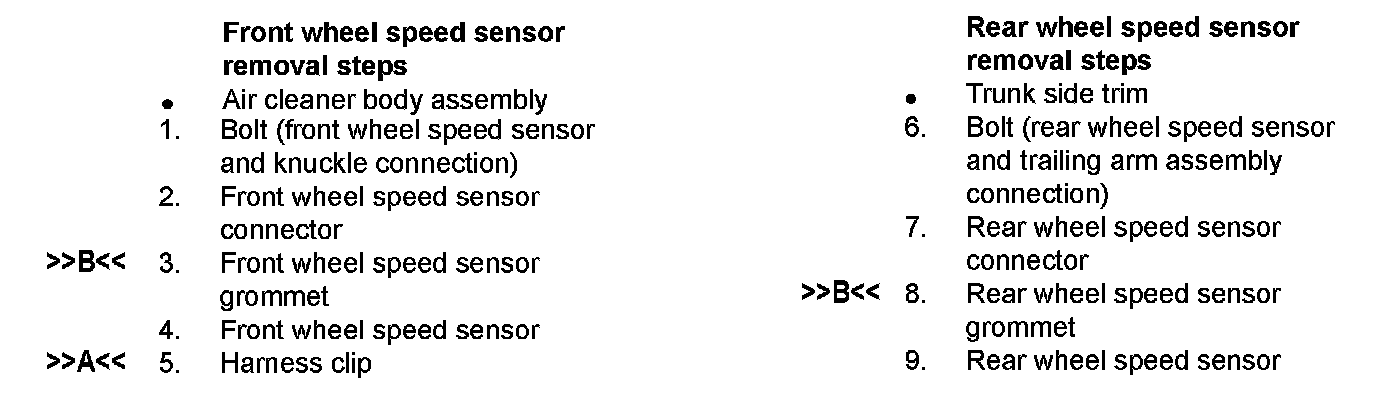

Front Wheel Speed Sensor Removal Steps 1-5 / Rear Wheel Speed Sensor Removal Steps 6-9:

NOTE:
The vehicle speed detection encoder is integrated with the front wheel bearing and the rear hub assembly, which cannot be disassembled.

INSTALLATION SERVICE POINTS

]]A[[ HARNESS CLIP INSTALLATION

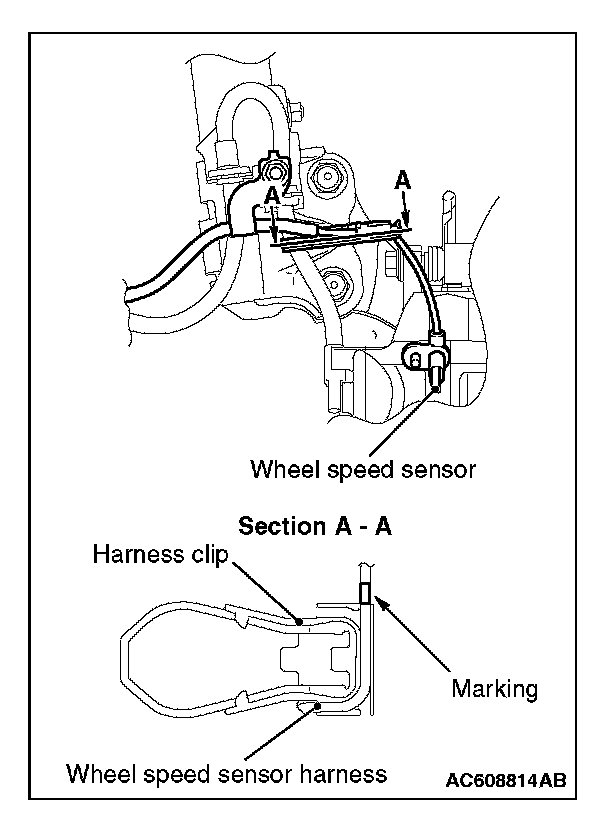

Install the front wheel speed sensor to the harness clip as shown in the figure.

]]B[[ FRONT WHEEL SPEED SENSOR GROMMET/REAR WHEEL SPEED SENSOR GROMMET INSTALLATION

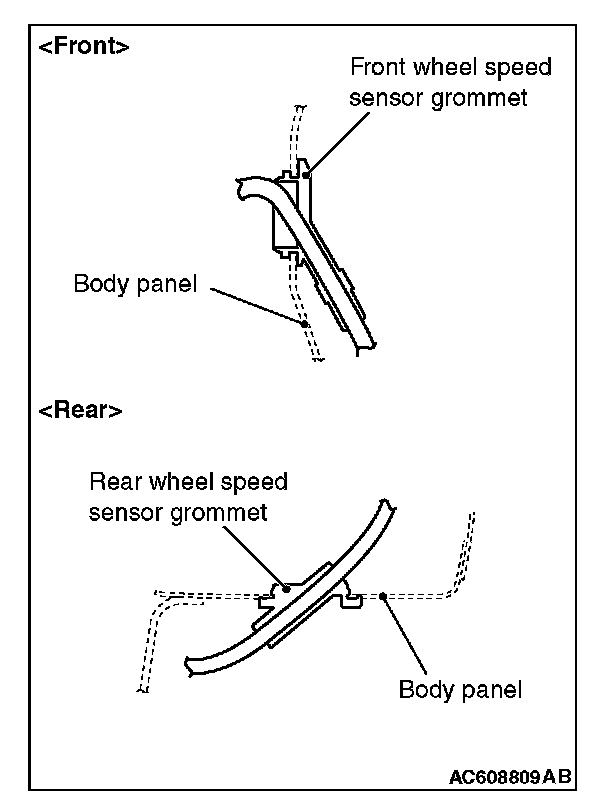

Install the front wheel speed sensor grommet and the rear wheel speed sensor grommet to the body panel snugly as shown in the figure.
