Front Seat Belt

FRONT SEAT BELT

REMOVAL AND INSTALLATION

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS - SRS Service Precautions and Seat Belt with Pre-tensioner.

Pre-removal & Post-installation Operation:

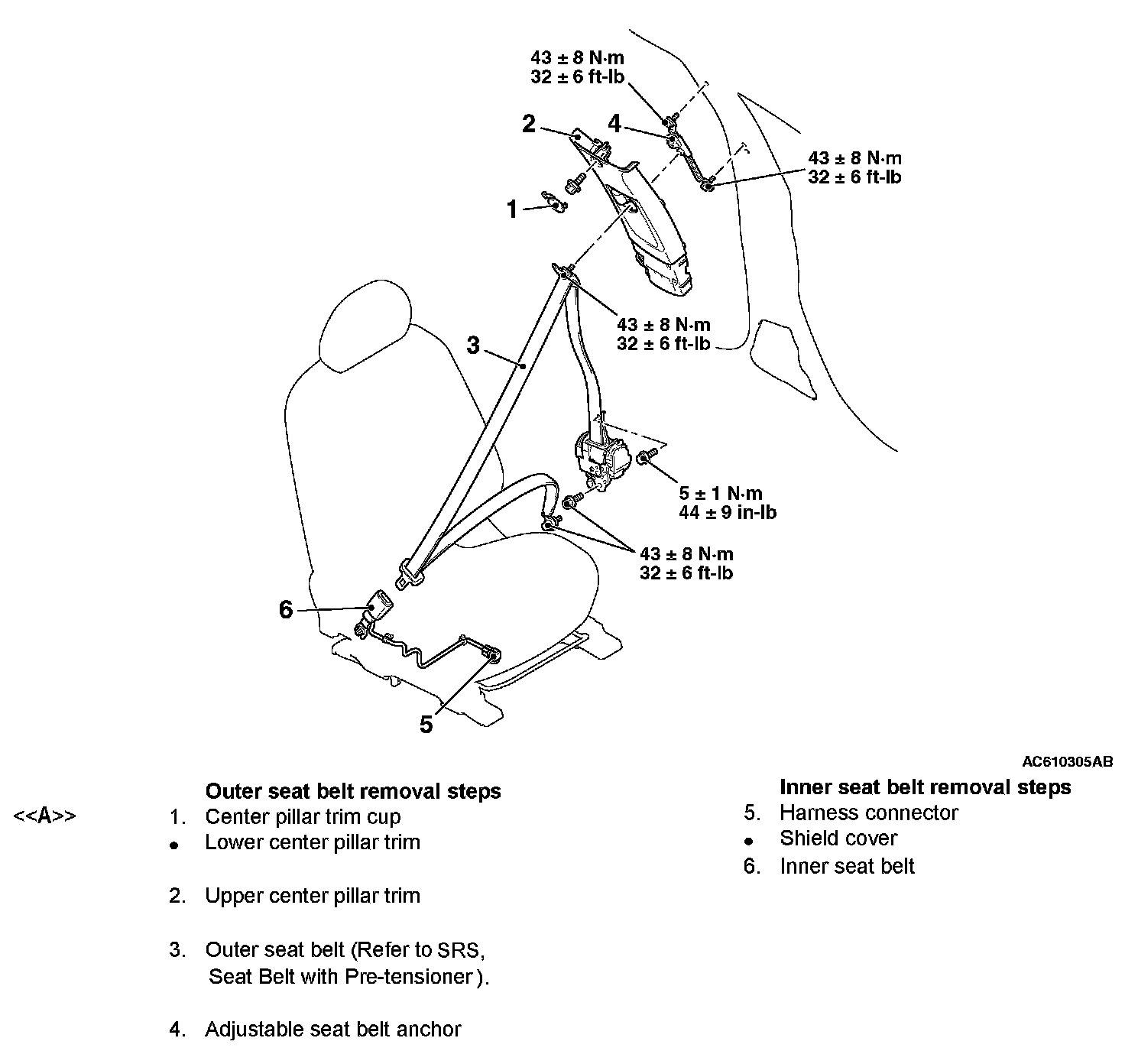

Removal Steps 1 - 6:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

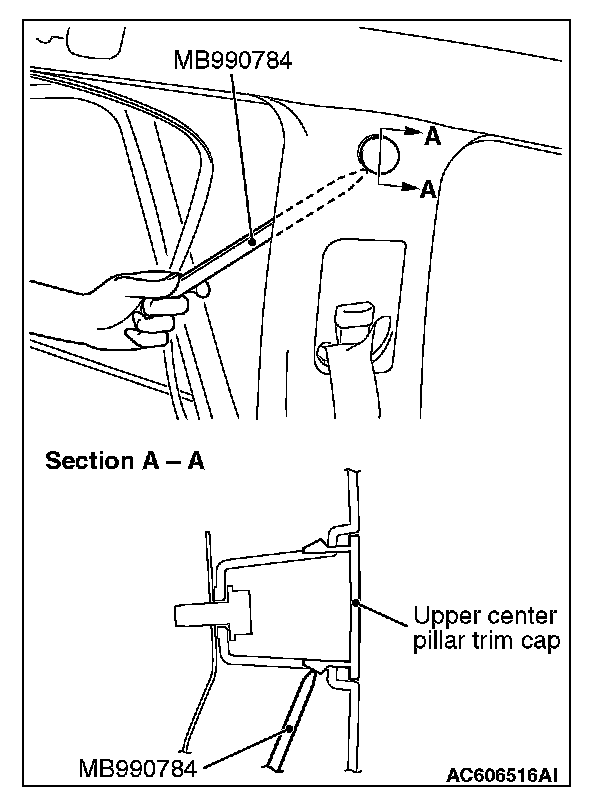

]]A[[ UPPER CENTER PILLAR TRIM CAP REMOVAL






Remove the opening trim. Remove the upper center pillar trim cap by inserting the special tool MB990784 between the upper center pillar trim and body as shown in the illustration.
