Programming and Relearning

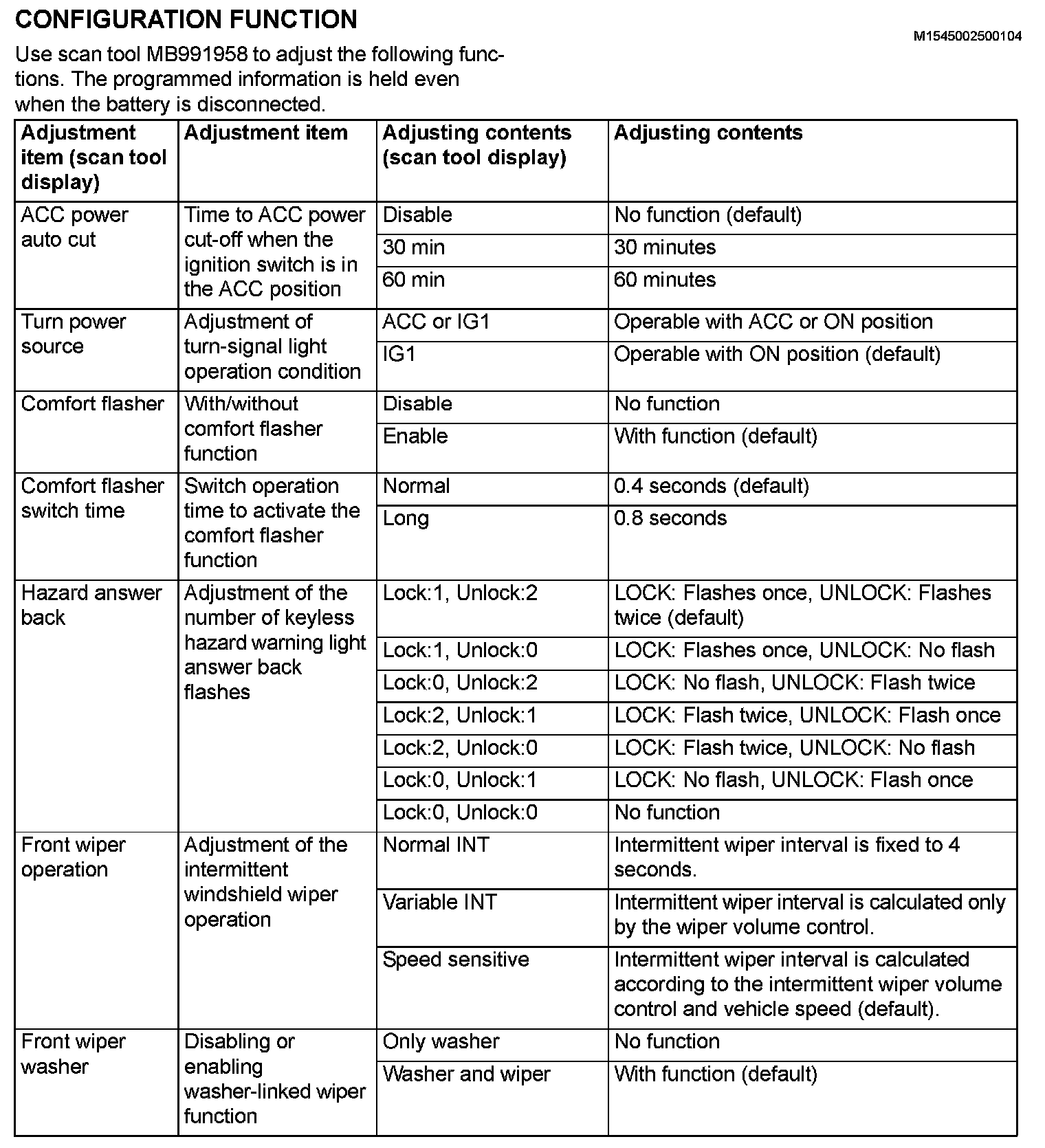

Configuration Function (Part 1):

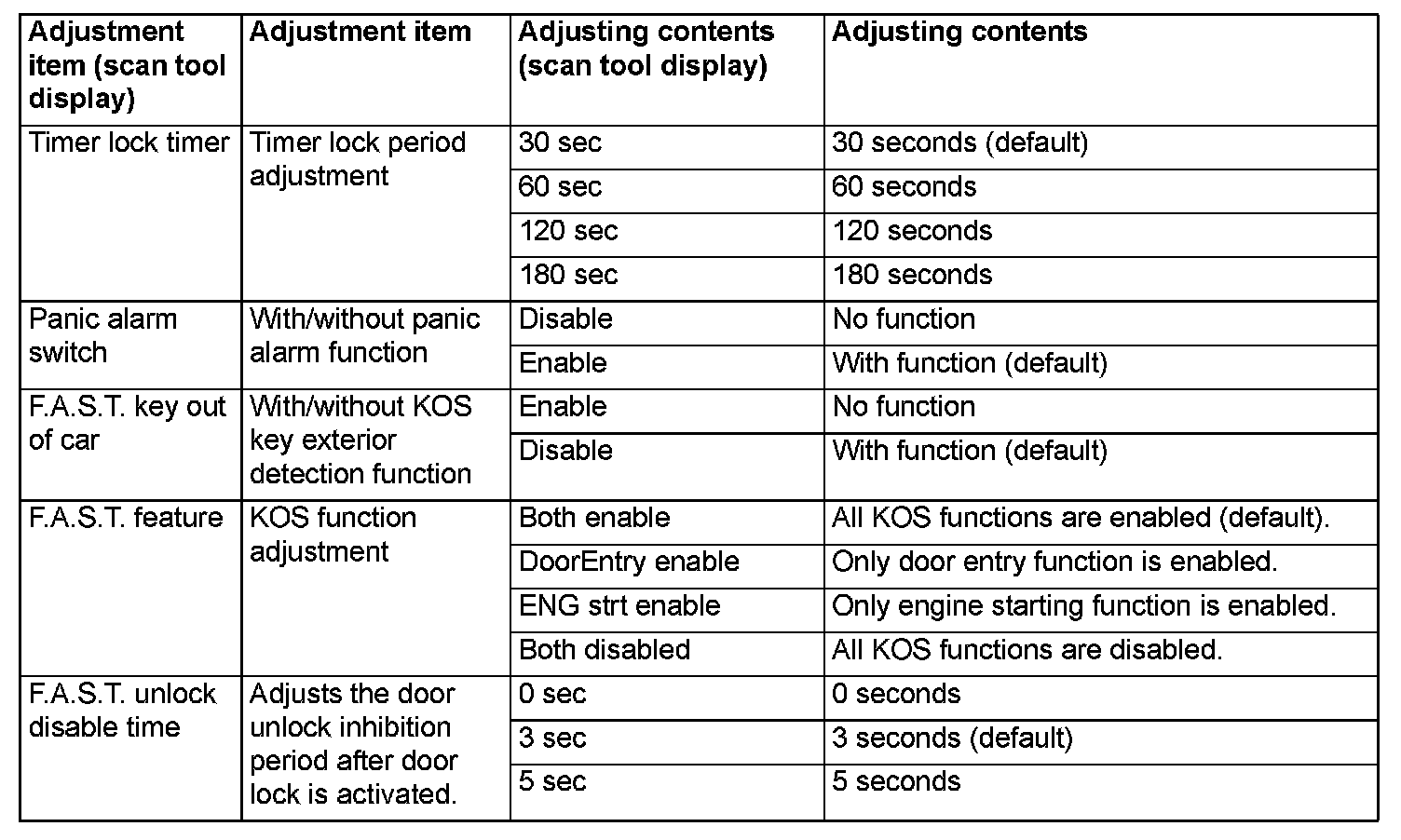

Configuration Function (Part 2):

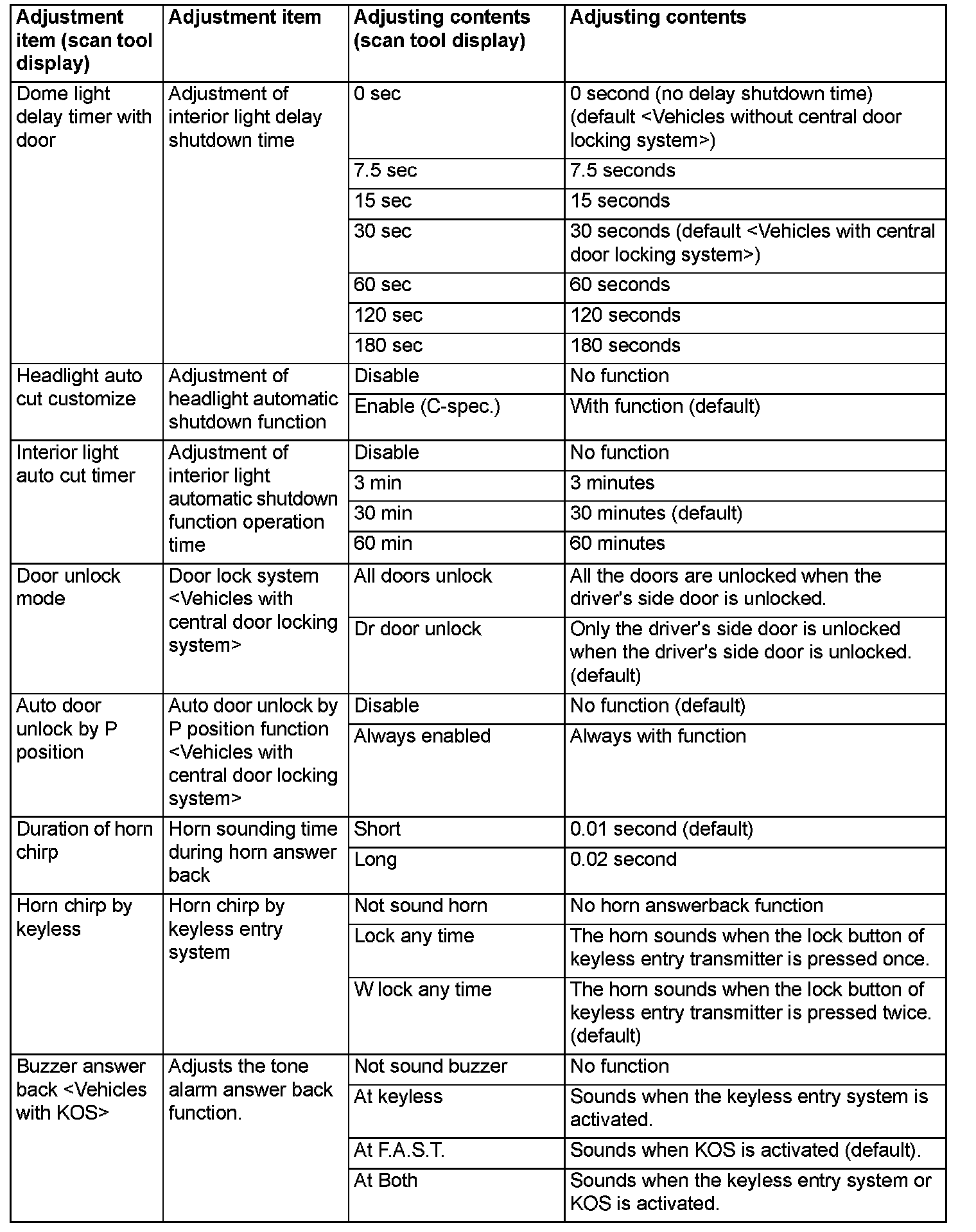

Configuration Function (Part 3):
