Fuel - Revised Fuel Pump Circuit Diagram

No. TSB-08-13-012

Date: May, 2008

Model:
2008 Lancer

SUBJECT:
CHANGES TO FUEL PUMP CIRCUIT DIAGRAM - SERVICE MANUAL REVISION

PURPOSE

Due to changes in the wire diameter and wire color in the fuel pump circuit, revisions are necessary to the circuit diagram in the Applicable Service Manual. This Technical Service Bulletin provides the corrected information.

AFFECTED VEHICLE(S)
2008 Lancer

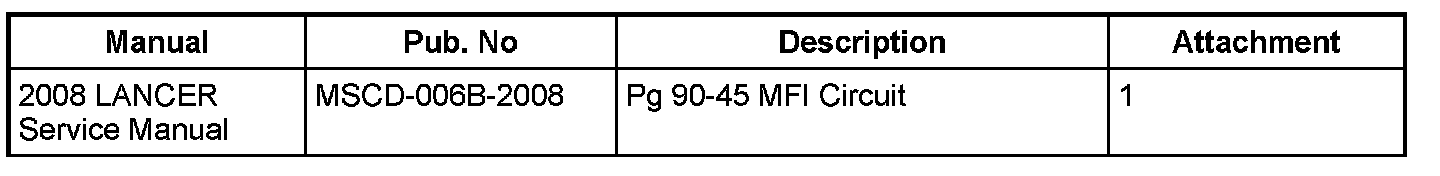

APPLICABLE MANUAL(S)

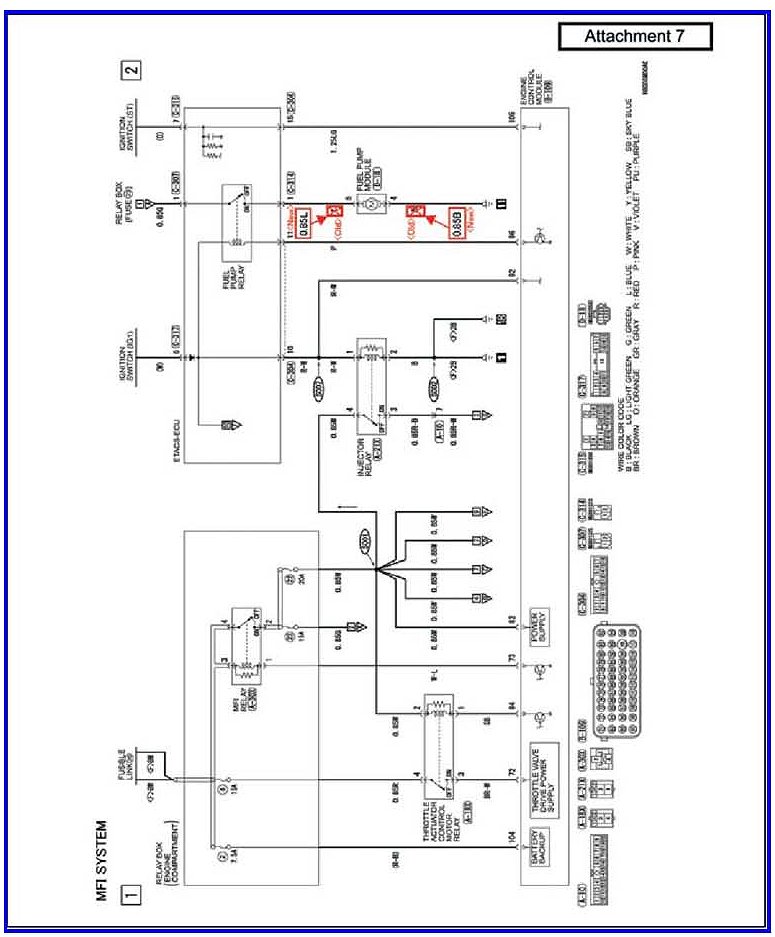

Updated service manual page.
