Injector Check

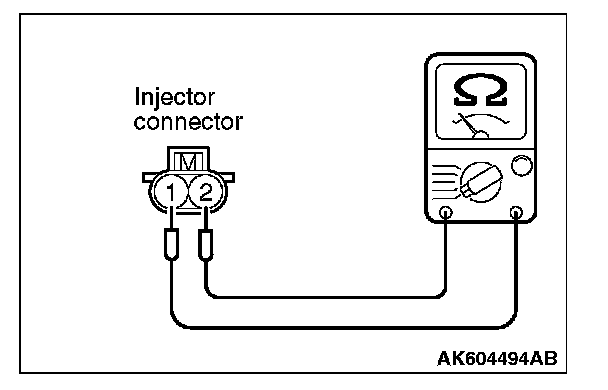

INJECTOR CHECK
1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.
Standard value: 10.5 - 13.5 ohms [at 20 °C (68 °F)]
3. Connect the injector connector.
1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.
Standard value: 10.5 - 13.5 ohms [at 20 °C (68 °F)]
3. Connect the injector connector.
