Rear Suspension

ON-VEHICLE SERVICE

REAR WHEEL ALIGNMENT CHECK AND ADJUSTMENT
1. Before the wheel alignment measurement, adjust the rear suspension, wheel, and tires in good condition.
2. Park the vehicle on a level surface to measure the wheel alignment.

TOE-IN
Standard value: 3±2 mm (0.12±0.08 inch)

If it is out of the standard range, adjust as follows:

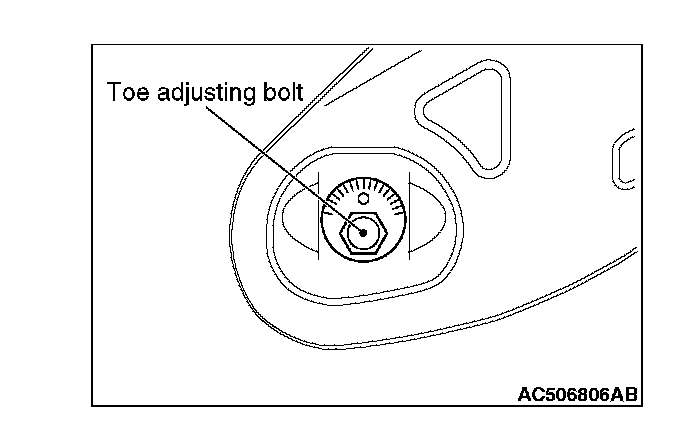

Turn the toe adjusting bolt (the mounting bolt inside the body on the control link) to adjust.
Left wheels: Clockwise-](+) Toe in
Right wheels: Clockwise-](-) Toe in

Toe-in varies approximately 2.6 mm (0.10 inch) (equivalent to 0°16' of the toe angle for one side) for each scale mark.

CAMBER
Standard value:-0°55'±0°30' (left/right difference 0°30' max)

NOTE:





^ For vehicles with aluminum wheels, attach the camber/caster/kingpin gauge by using a compensator.
^ The camber is pre-adjusted at factory and is not adjustable.
