Home >> Mitsubishi >> 2008 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair >> Headlight and Front Combination Light

Headlight and Front Combination Light

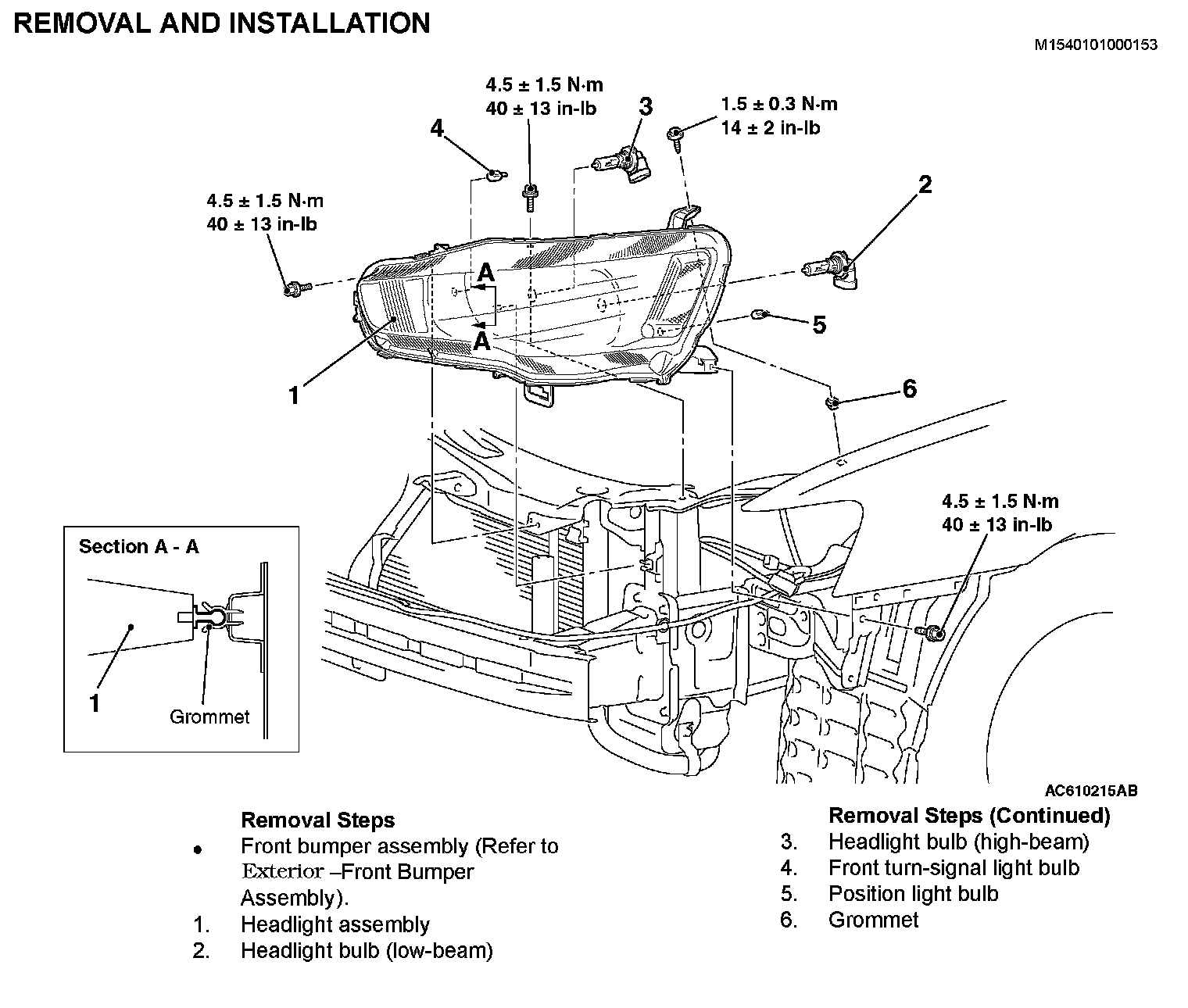

Removal Steps 1-6:
