Inspection Procedure 5

Inspection Procedure 5: The headlight(s) do not illuminate.

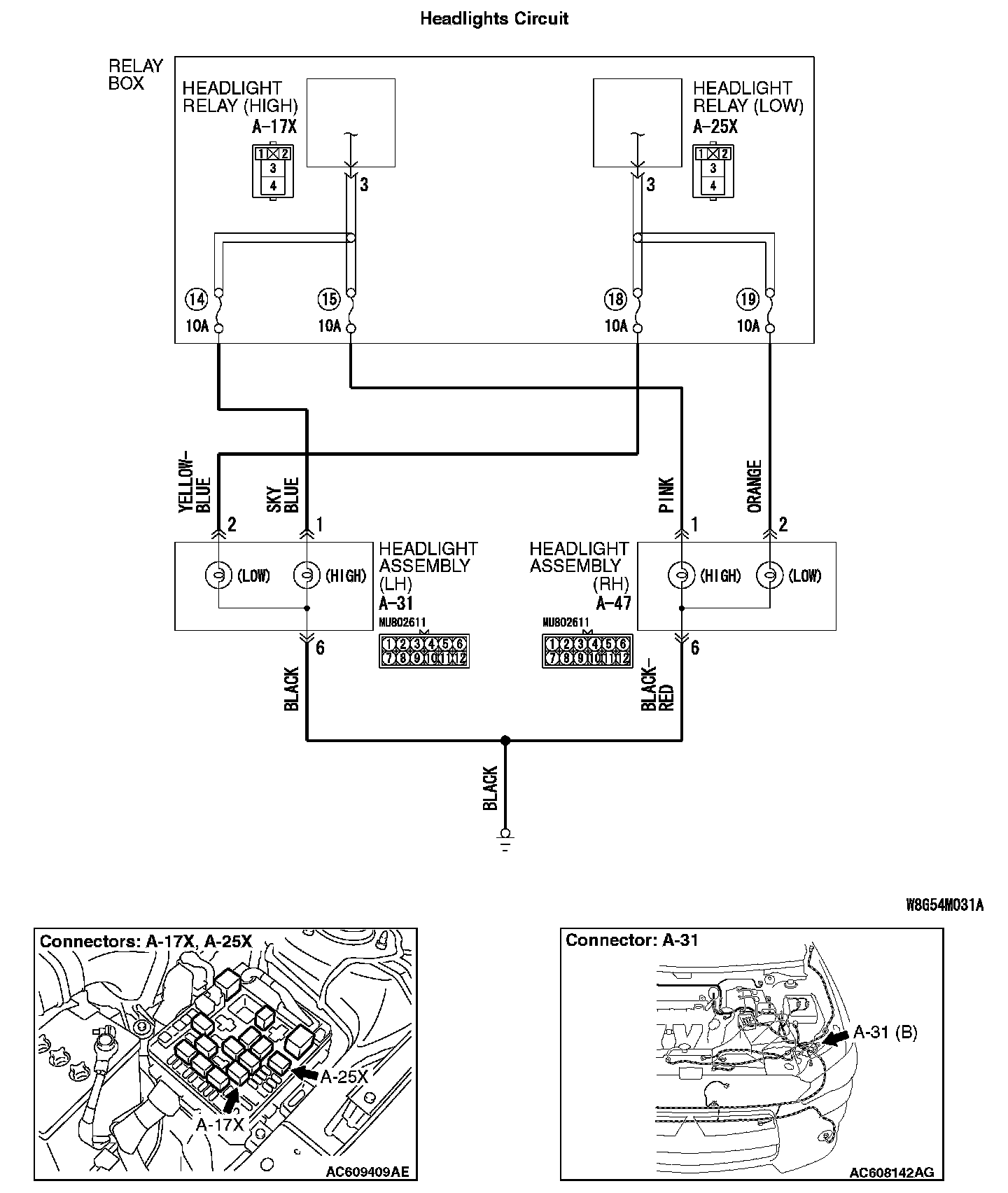

Headlights Circuit (Part 1):

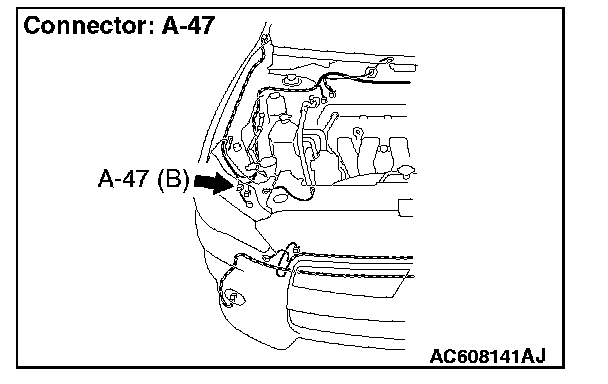

Headlights Circuit (Part 2):

TROUBLESHOOTING HINTS
- Malfunction of the headlight bulbs
- Malfunction of the headlight assembly
- Damaged harness wires and connectors

TECHNICAL DESCRIPTION (COMMENT)
If any of the headlights do not illuminate, the wiring harness, connector(s), or the bulb may have a problem, or the fuse may be burned out.

DIAGNOSIS

Required Special Tools:
- MB992006: Extra fine probe
- MB991223: Harness set

STEP 1. Check headlight assembly connector A-31 or A-47 , for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q: Is headlight assembly connector A-31 or A-47 in good condition?

YES : Go to Step 2.

NO : Repair or replace the damaged component(s). Refer to general (electrical), Harness Connector Inspection.

STEP 2. Check bulb.

Check the bulb(s) of headlight that does not illuminate.

NOTE: If discharge-type lower beam headlights do not illuminate, their bulbs cannot be inspected. In this case, assume the bulbs to be normal and proceed with steps.

Q: Is the bulb in good condition?

YES : Go to Step 3.

NO : Replace the bulb(s) of the light that does not illuminate.

STEP 3. Check the wiring harness between headlight assembly connector and headlight relay connector.

Check the power supply line for open circuit.

- Check the wiring harness between headlight assembly (LH) connector A-31 (terminal 2) and headlight relay (LOW) connector A-25X (terminal 3).
- Check the wiring harness between headlight assembly (LH) connector A-31 (terminal 1) and headlight relay (HIGH) connector A-17X (terminal 3).
- Check the wiring harness between headlight assembly (LH) connector A-31 (terminal 6) and ground.
- Check the wiring harness between headlight assembly (RH) connector A-47 (terminal 2) and headlight relay (LOW) connector A-25X (terminal 3).
- Check the wiring harness between headlight assembly (RH) connector A-47 (terminal 1) and headlight relay (HIGH) connector A-17X (terminal 3).
- Check the wiring harness between headlight assembly (RH) connector A-47 (terminal 6) and ground.

Q: Is the wiring harness between headlight assembly connector and headlight relay connector in good condition?

YES : Replace the headlight assembly that does not illuminate.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the headlights illuminate normally.
