Fog/Driving Lamp Bulb: Service and Repair

BULB REPLACEMENT

1. Remove the front fog light bezel and the front fog light assembly.

CAUTION: Don't touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, clean it with alcohol or thinner immediately and dry well, and then install it.

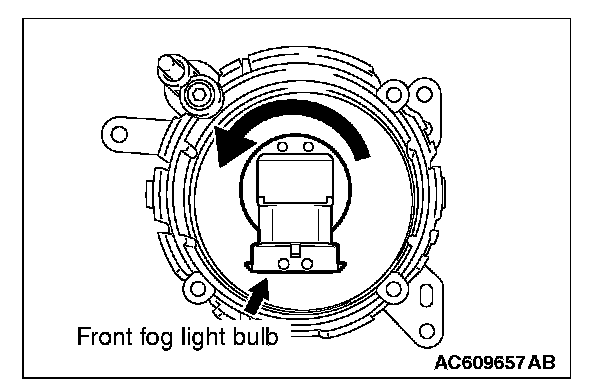

2. Disconnect the connector and withdraw the bulb.
3. Replace the bulb, and connect securely the connector.
