Key Reminder Switch: Testing and Inspection
KEY REMINDER SWITCH INSPECTION

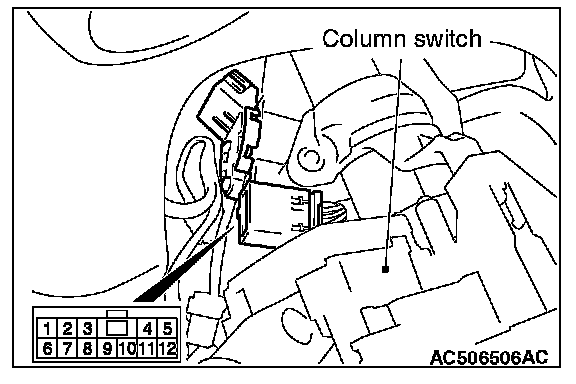

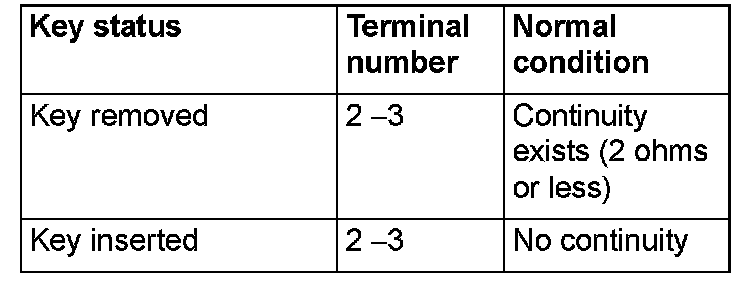

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
