A/C - Diagnostic Procedures Revisions
No.: TSB-08-55-003DATE: March, 2008
MODEL:
2008 Lancer
SUBJECT:
CORRECTED INFORMATION FOR PHOTO SENSOR - SERVICE MANUAL REVISION
PURPOSE
Due to the elimination of the photo sensor in production descriptions and information relating to certain diagnosis procedures have changed.
This Technical Service Bulletin provides information relating to those changes
AFFECTED VEHICLE(S)
2008 Lancer built on or after December 1, 2007.
Check vehicle production date prior to applying this Service Manual Revision.

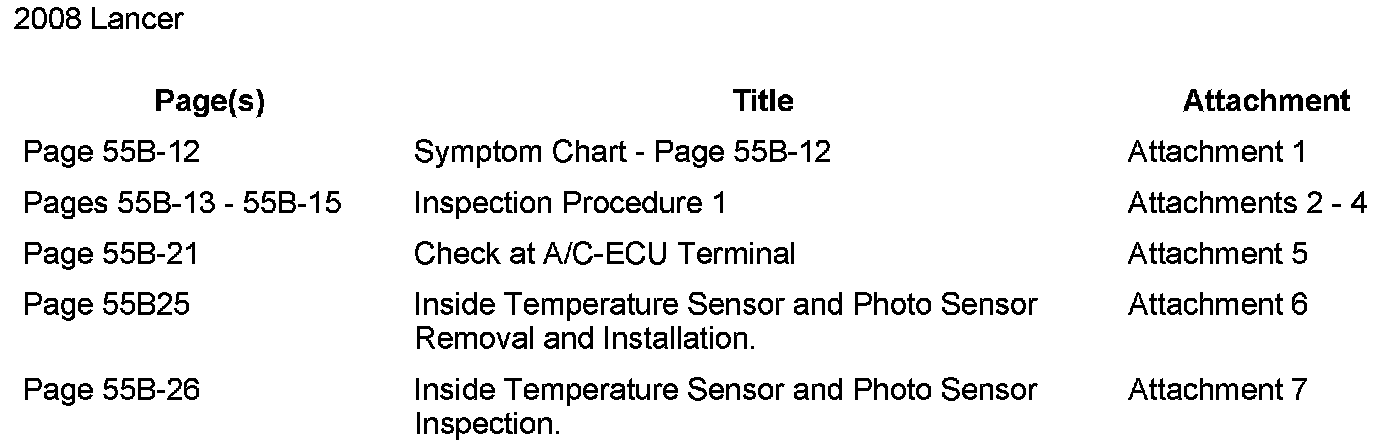

AFFECTED SERVICE MANUAL(S)

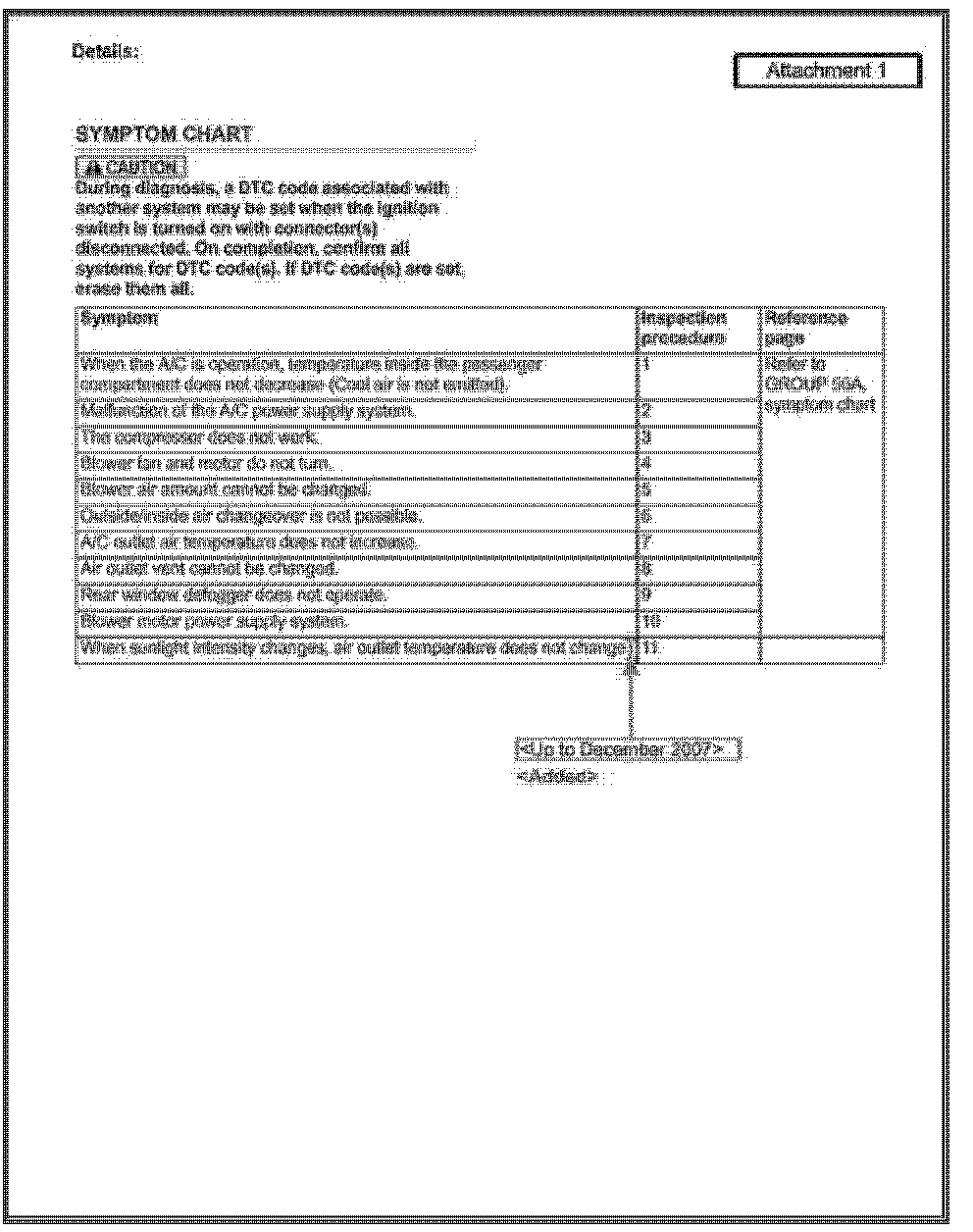

Service Manual Revision - Attachment 1

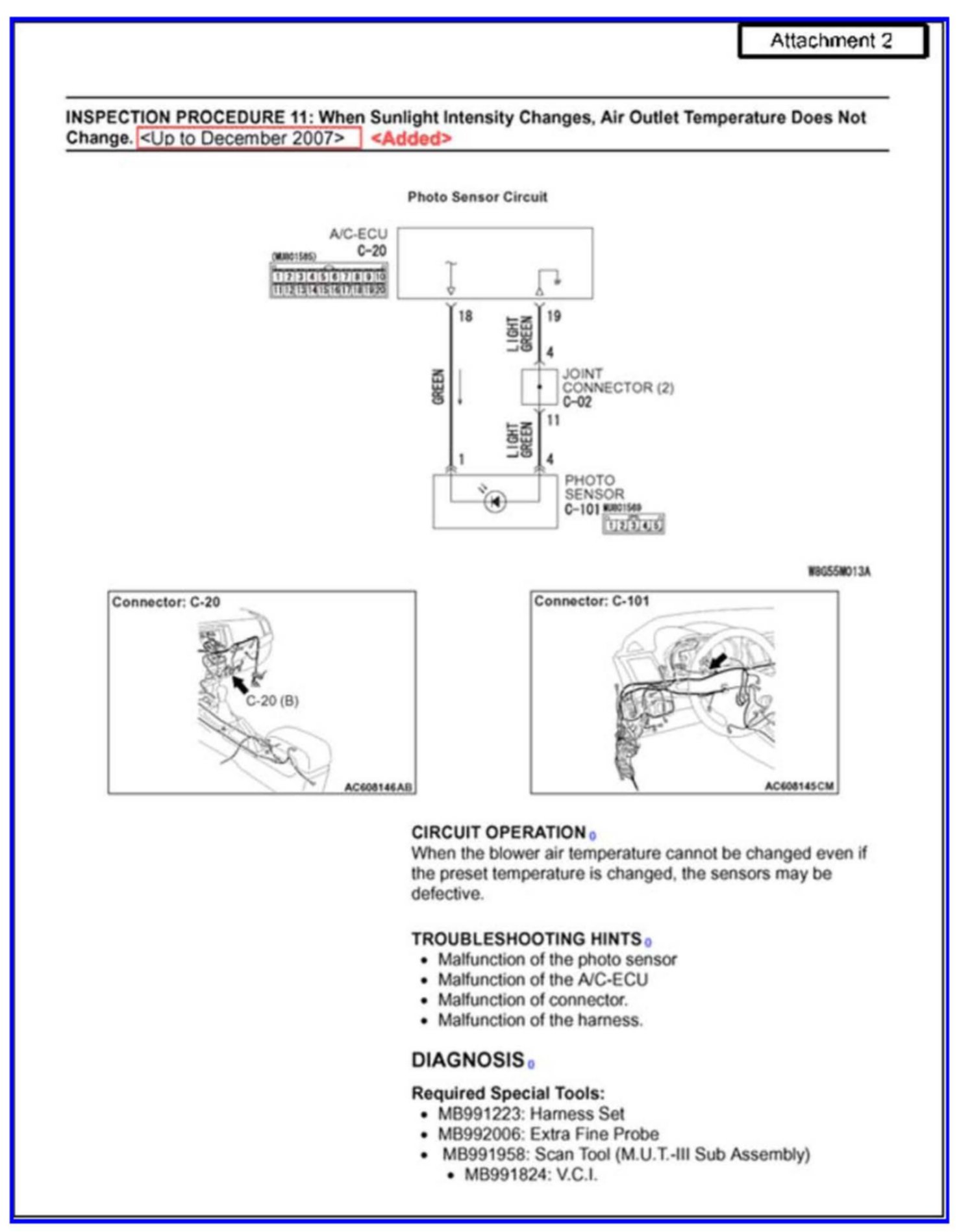

Service Manual Revision - Attachment 2

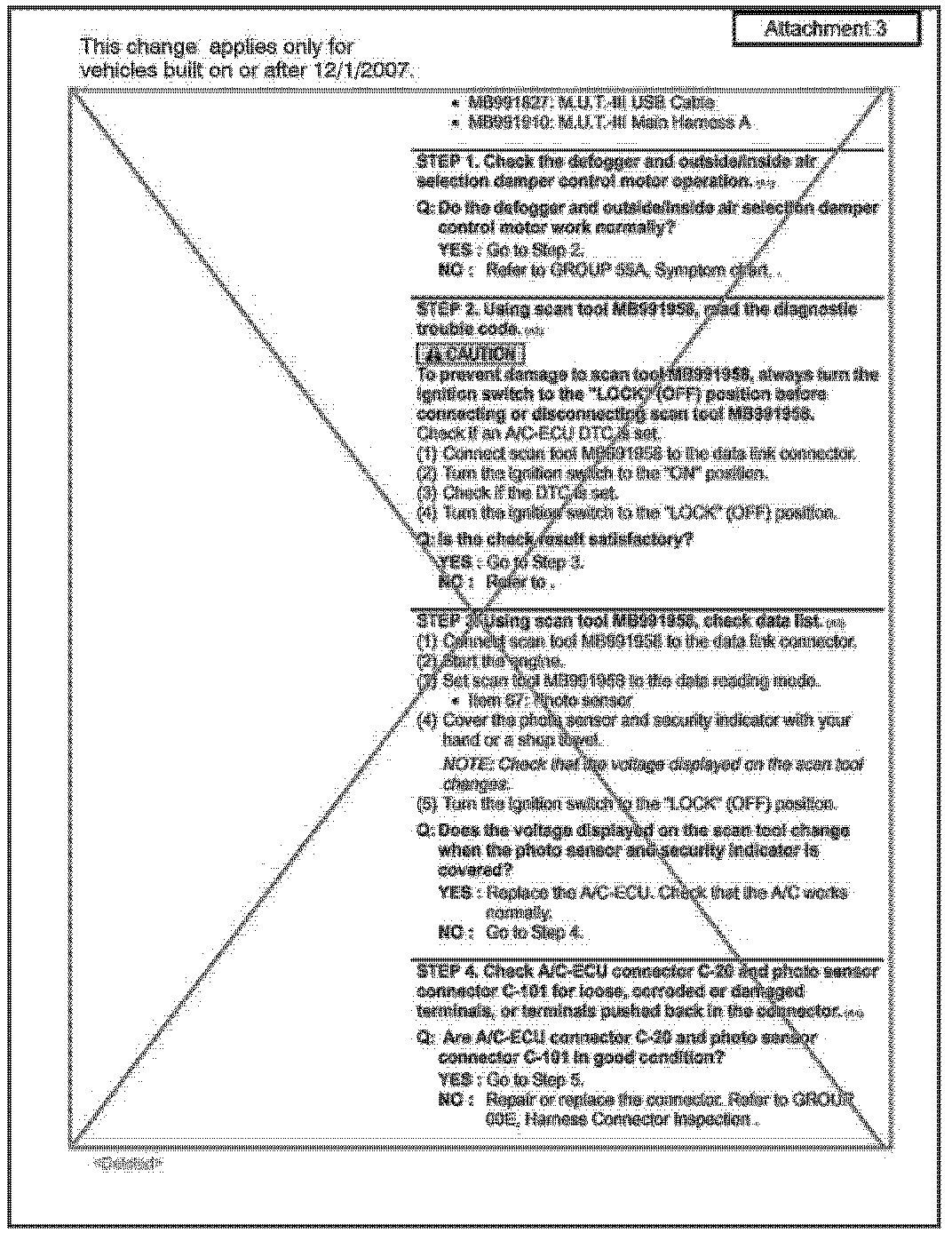

Service Manual Revision - Attachment 3

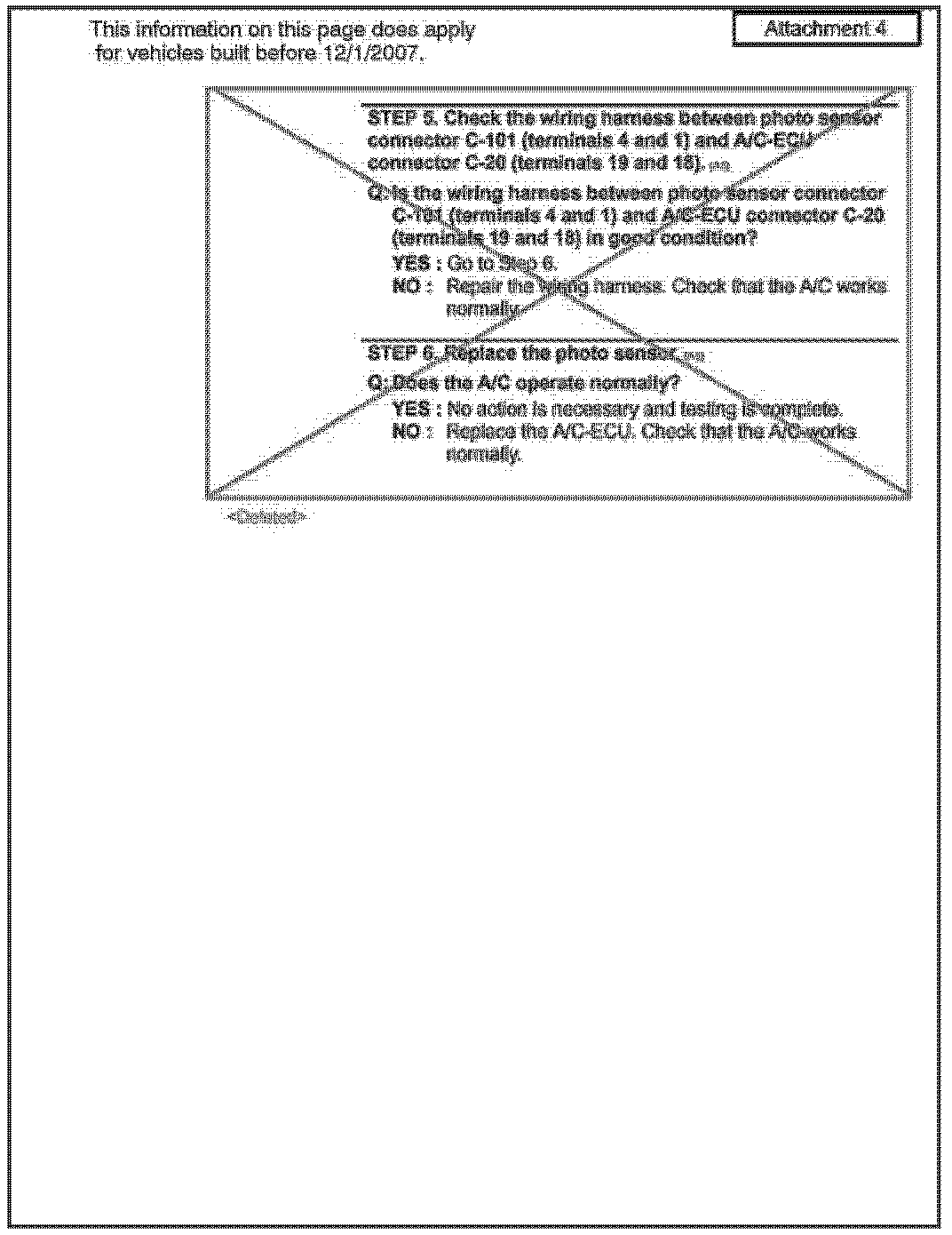

Service Manual Revision - Attachment 4

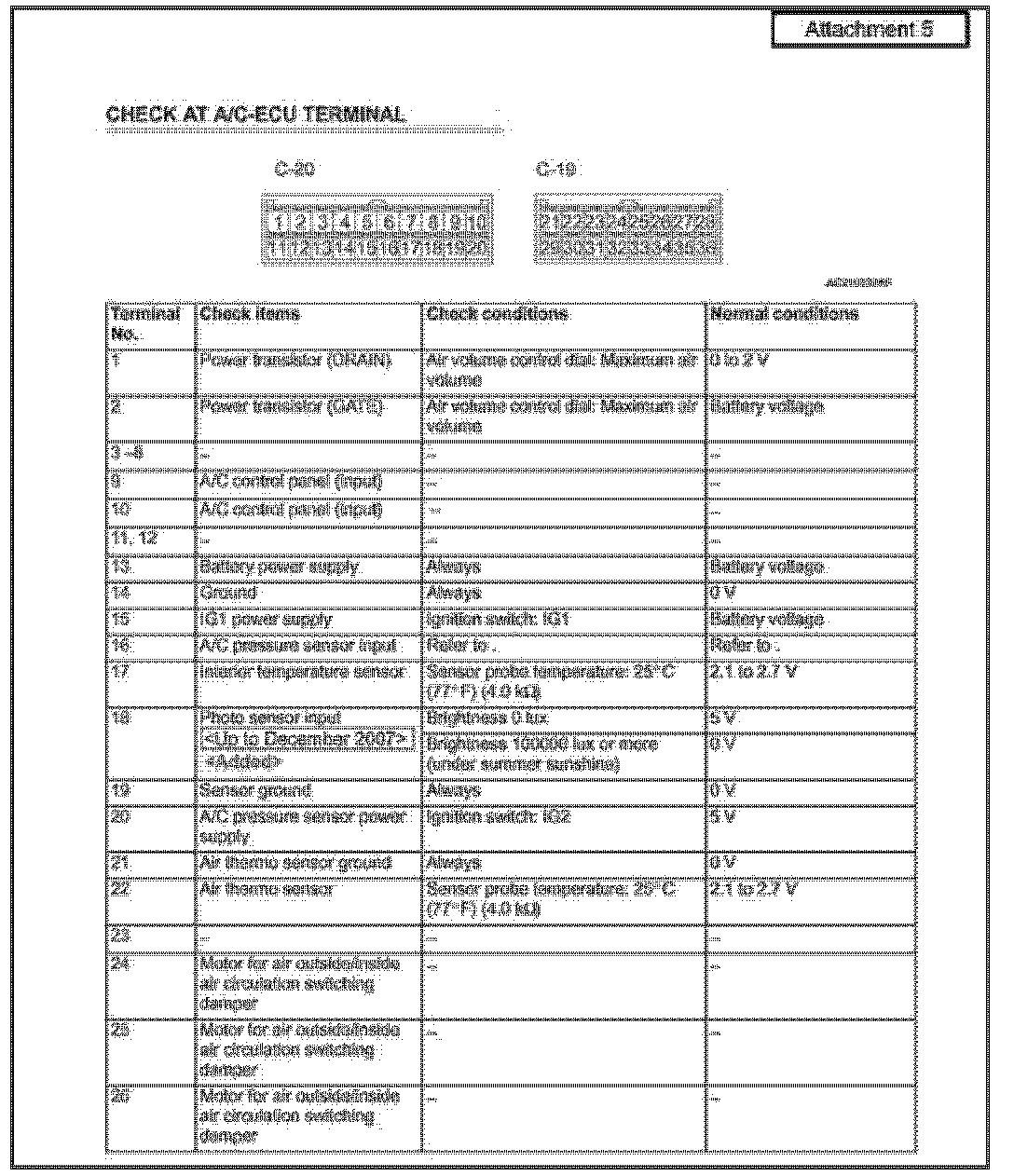

Service Manual Revision - Attachment 5

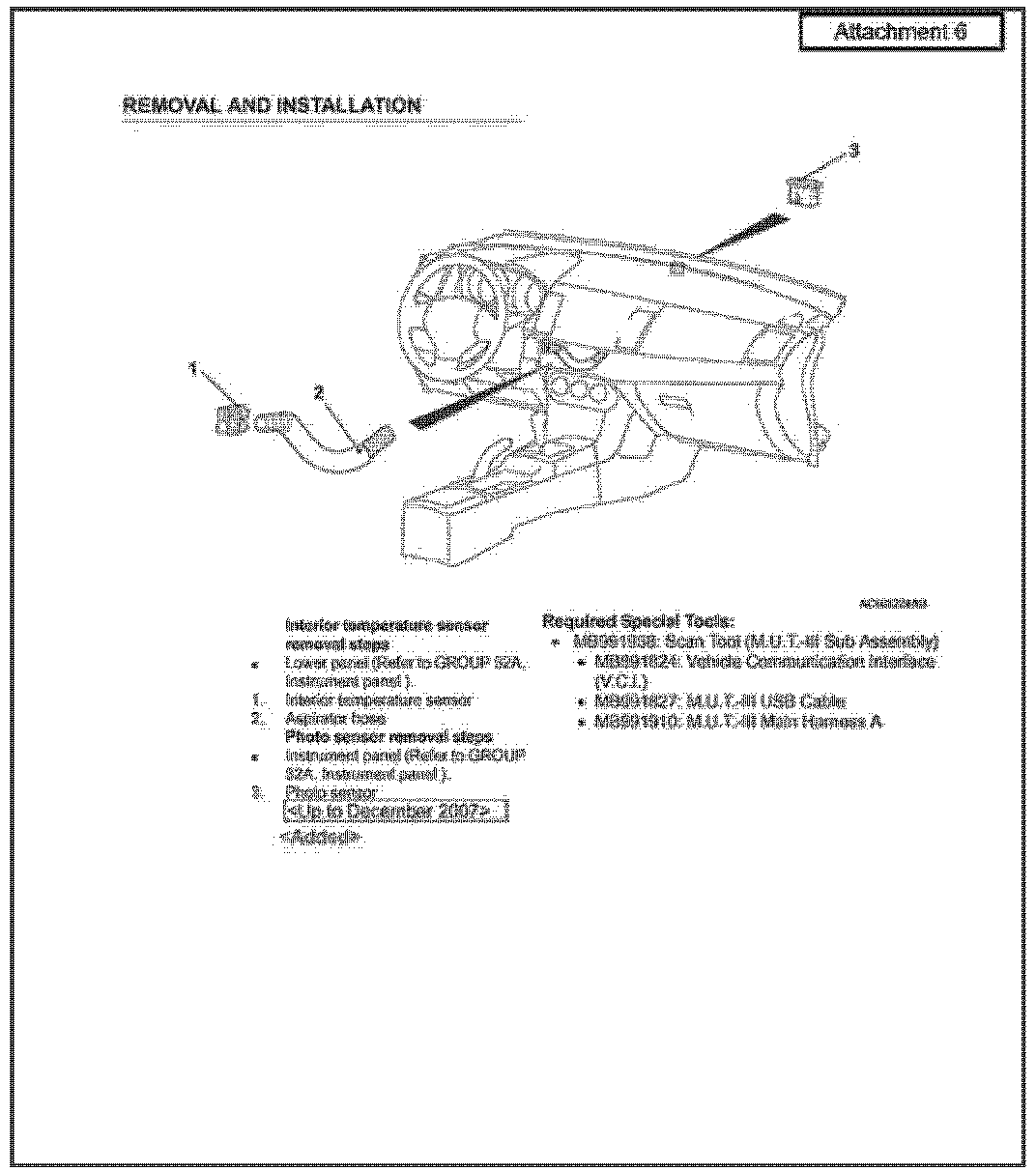

Service Manual Revision - Attachment 6

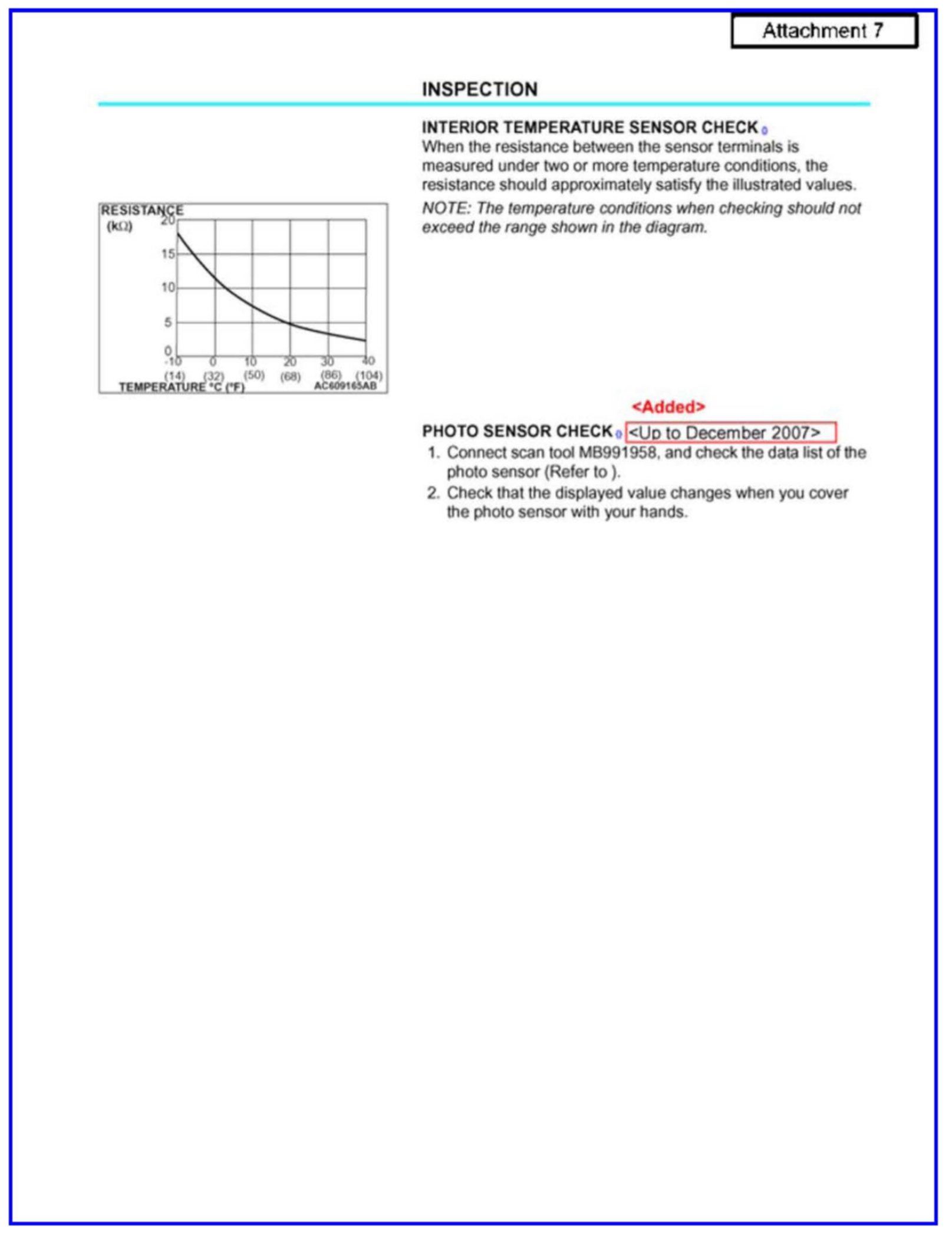

Service Manual Revision - Attachment 7
