Heater Unit and Blower Assembly
HEATER UNIT AND BLOWER ASSEMBLYREMOVAL AND INSTALLATION
WARNING
- Before removing the front seat assembly, refer to SRS Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle (Refer to SRS On-Vehicle Service).
Pre-Removal And Post-Installation Operation:

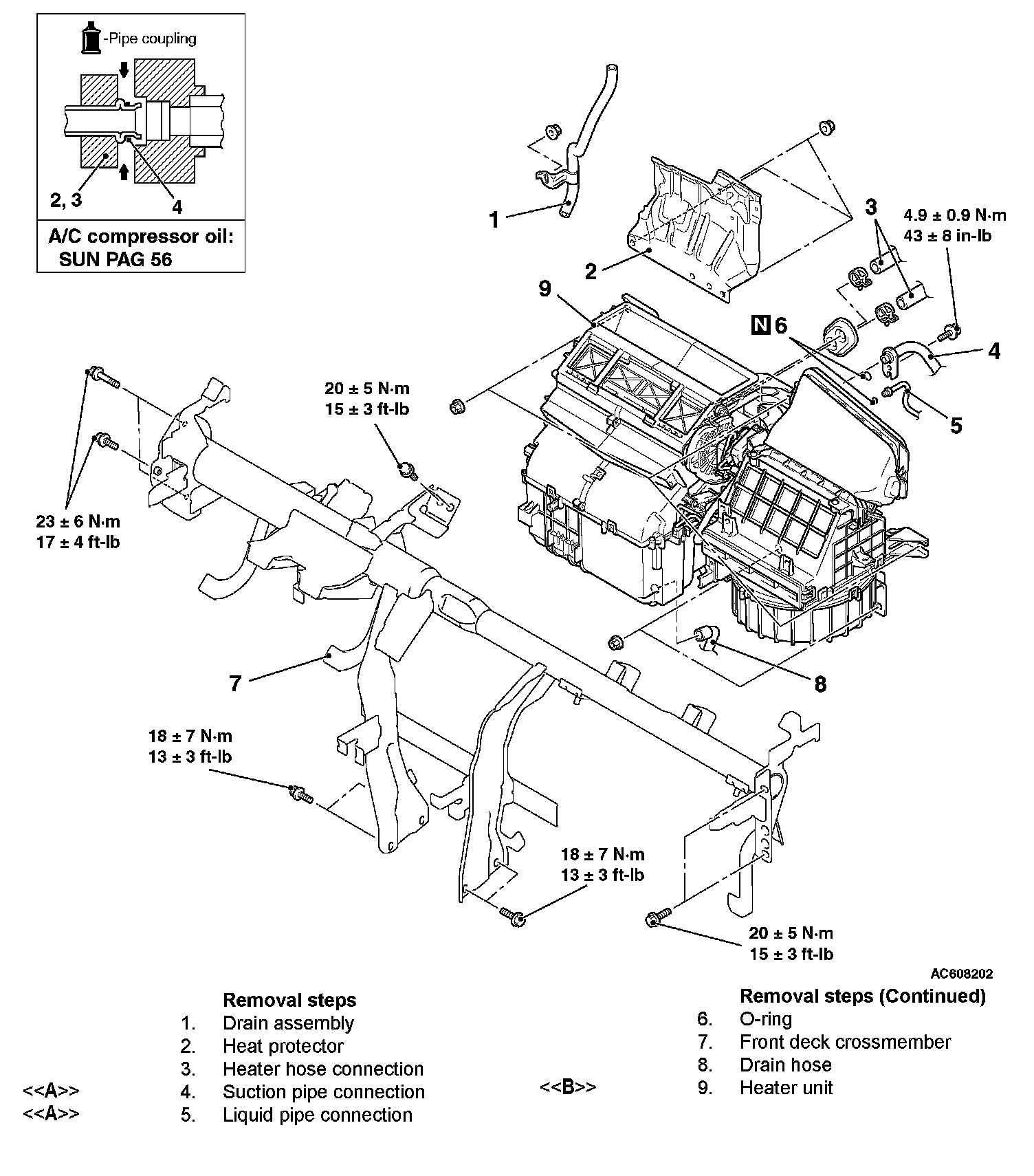

Removal Steps 1-9:
REMOVAL SERVICE POINTS
<> SUCTION PIPE AND LIQUID PIPE DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
<> HEATER UNIT AND DECK CROSSMEMBER ASSEMBLY REMOVAL

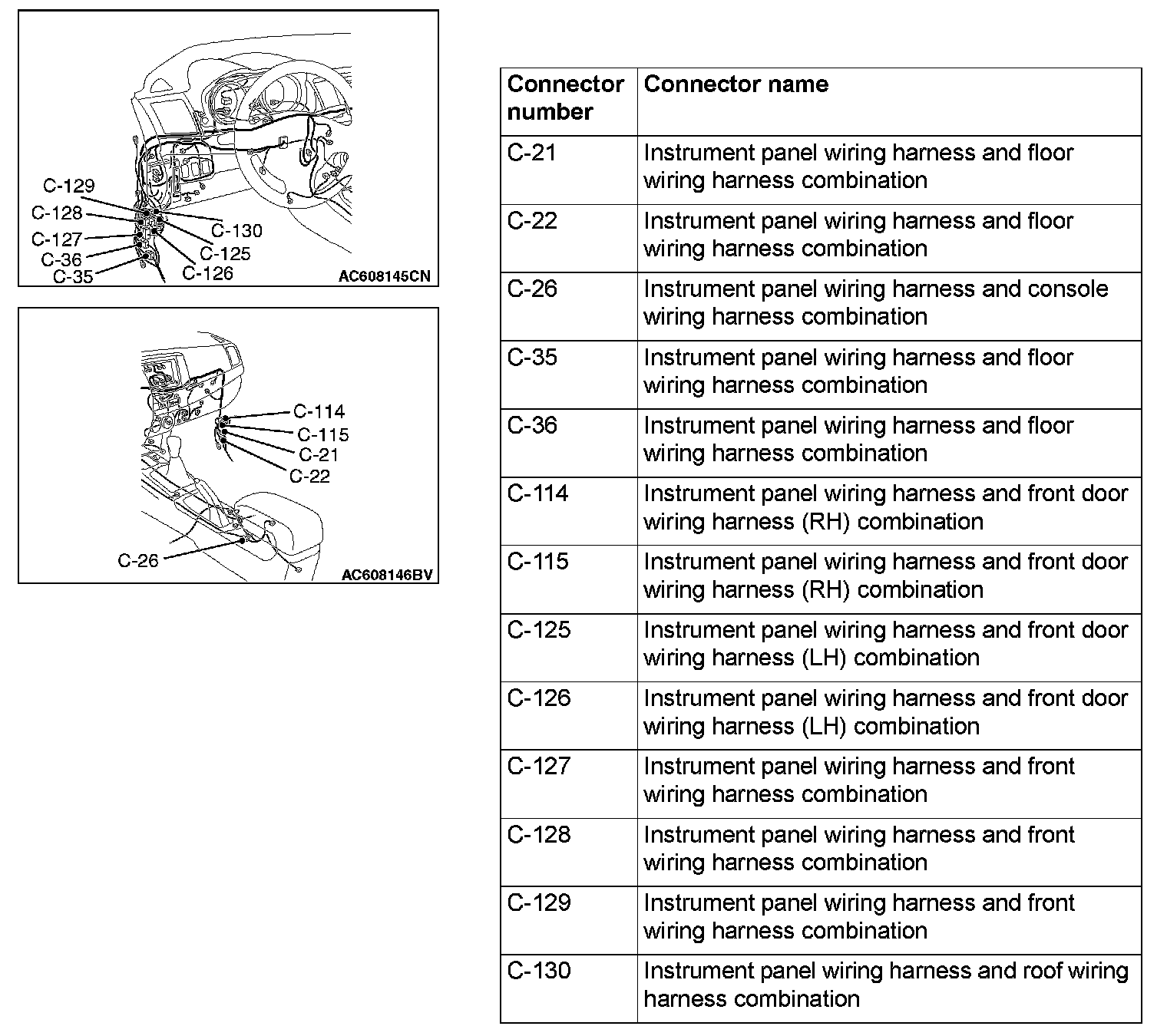

Disconnect the following connectors to gain access to the front deck crossmember.
