Condenser HVAC: Service and Repair

CONDENSER ASSEMBLY

REMOVAL AND INSTALLATION

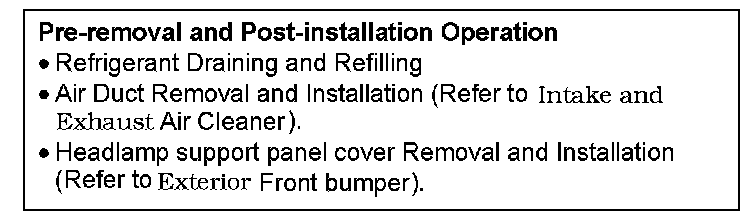

Pre-Removal And Post-Installation Operation:

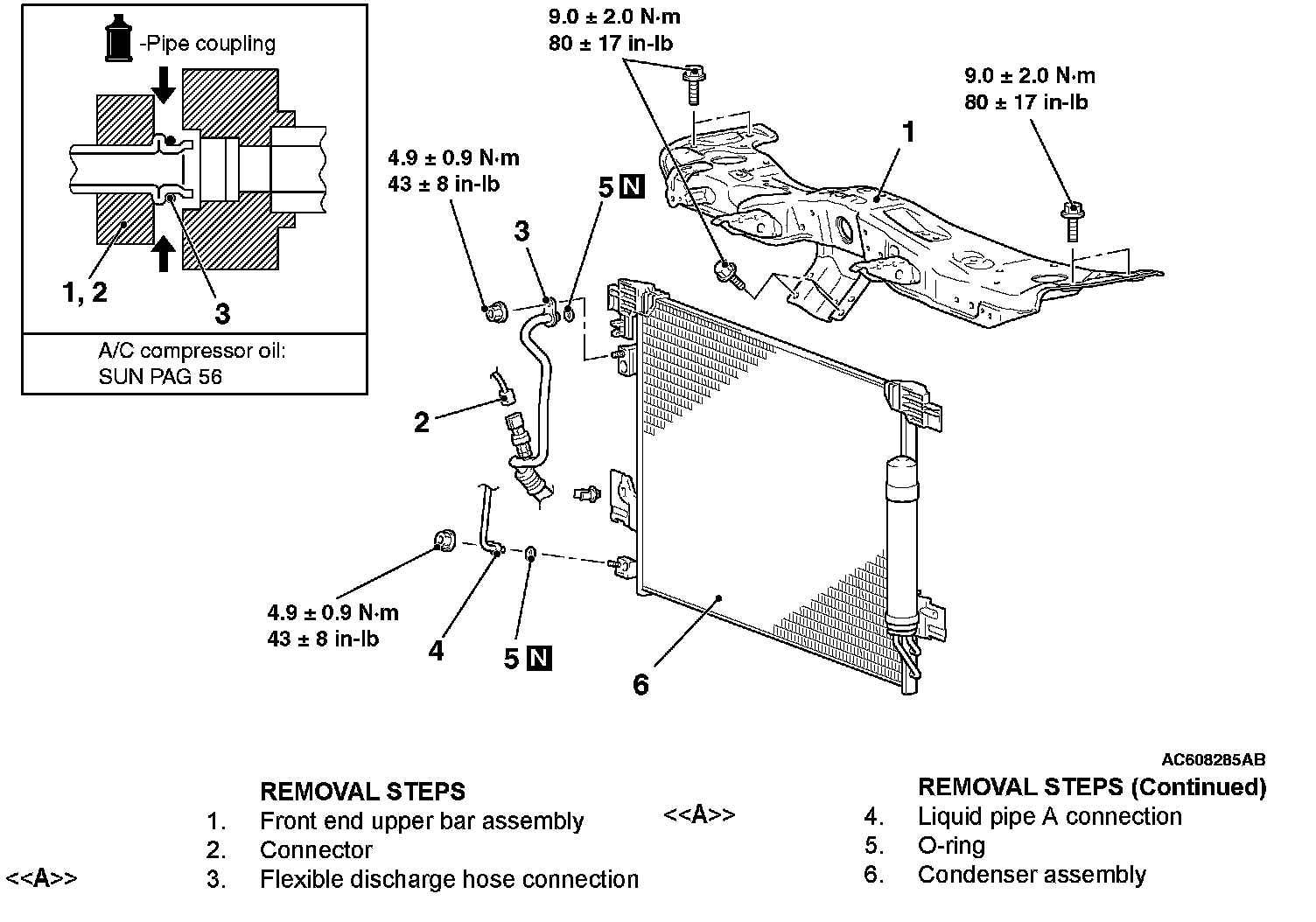

Removal Steps 1-6:

REMOVAL SERVICE POINTS

<> FLEXIBLE SUCTION HOSE AND LIQUID PIPE A DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.

INSTALLATION SERVICE POINT

>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount of compressor oil and install it to the vehicle.

Compressor oil: SUN PAG 56
Quantity: 15 cu.cm (0.5 fl.oz)
