Overhaul

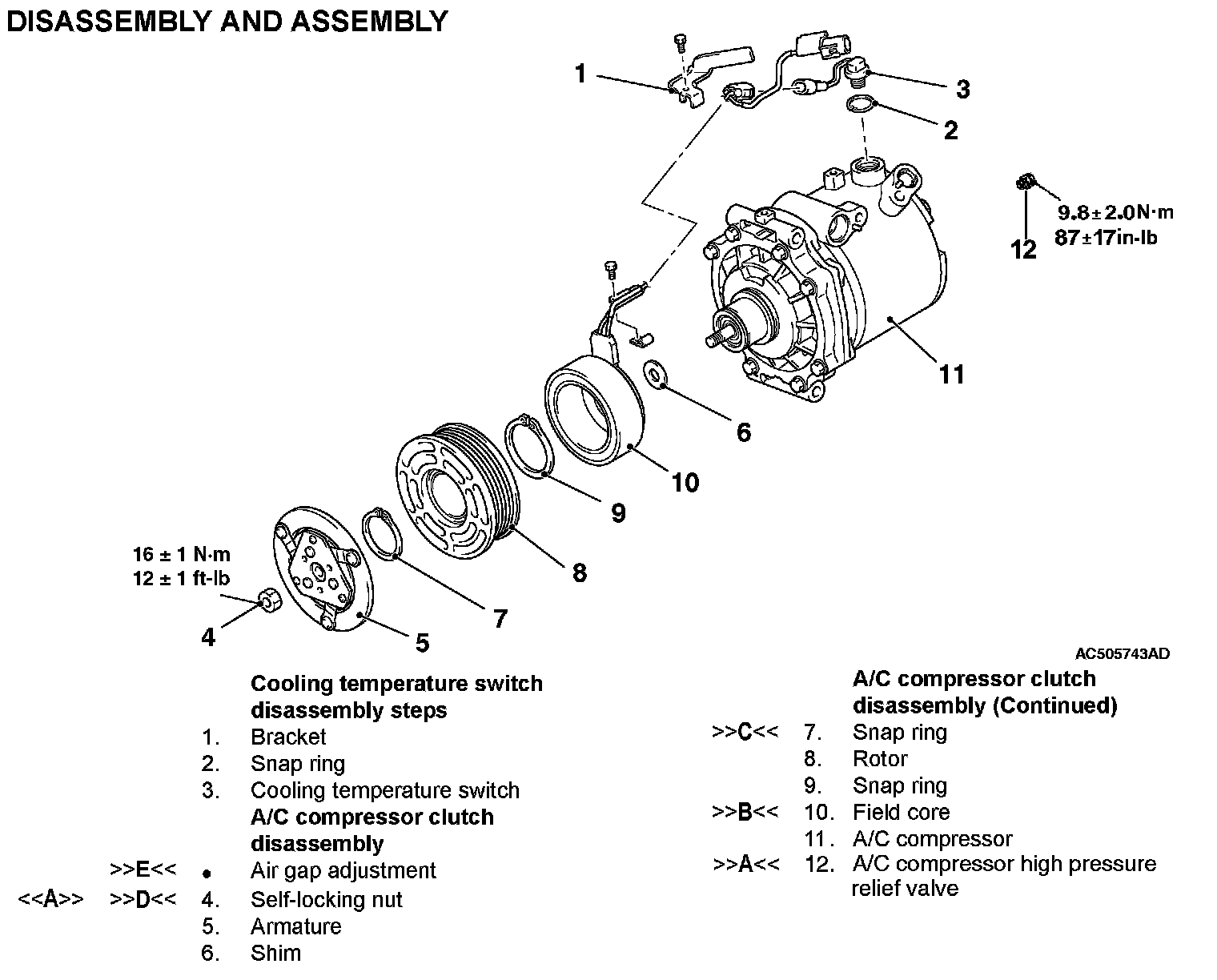

DISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-11:
DISASSEMBLY SERVICE POINT
<> SELF-LOCKING NUT REMOVAL
ASSEMBLY SERVICE POINTS
>>A<< A/C COMPRESSOR HIGH PRESSURE RELIEF VALVE INSTALLATION
CAUTION:
Be careful not to damage the O-ring when installing the high-pressure relief valve. Apply the specified refrigerating machine oil the high-pressure relief valve mounting hole before installation.
Check the O-ring is installed to the high-pressure relief and use the adjust torque wrench to install the high-pressure relief value to the main body of the compressor.

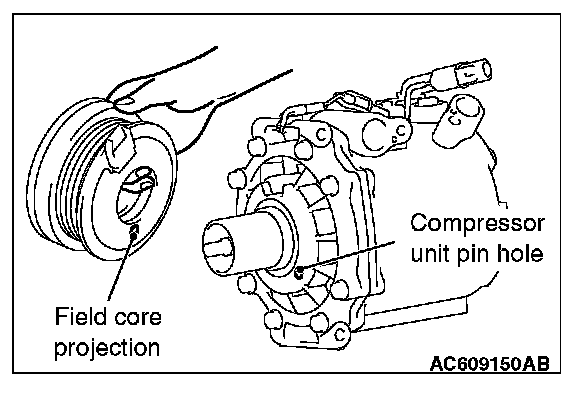

>>B<< FIELD CORE ATTACHMENT
Line up the pin hole on the compressor unit with the field core projection and attach.

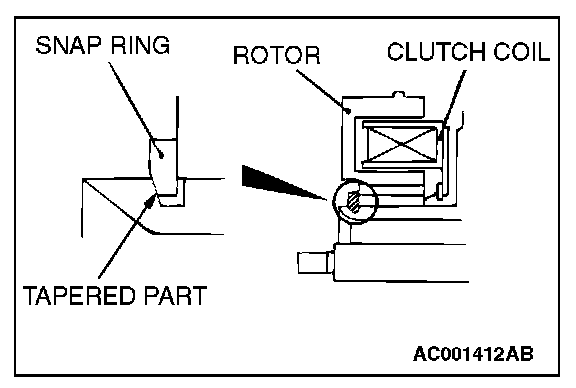

>>C<< SNAP RING INSTALLATION
Using snap ring pliers, fit the snap ring so that the snap ring's tapered part is on the outside.

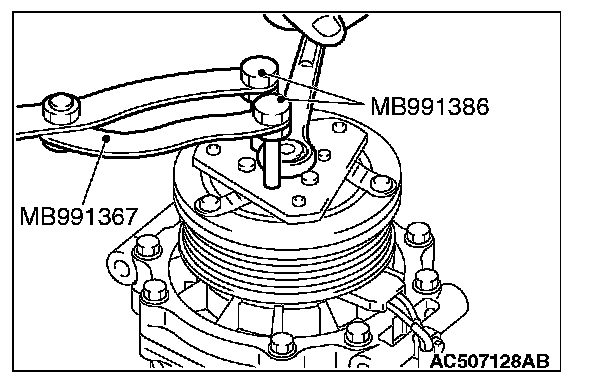

>>D<< SELF-LOCKING NUT INSTALLATION
Using a special tool, as when removing the nut, secure the armature and tighten the self-locking nut.
>>E<< AIR GAP ADJUSTMENT
Check whether or not the air gap of the clutch is within the standard value.
Standard value: 0.3-0.5 mm (0.012-0.020 inch)
NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
