Engine - Revised Valve Stem/Crankshaft Oil Seal Service
No: TSB-07-11-003DATE: April, 2007
MODEL: 2008 Lancer
SUBJECT:
REMOVAL & INSTALLATION PROCEDURE FOR VALVE STEM SEAL & CRANKSHAFT OIL SEAL - SERVICE MANUAL REVISION
TSB Revision: TSB-07-11-003
PURPOSE
The removal and installation procedures of the valve stem seal is omitted and the removal and installation procedures of the crankshaft oil seal are corrected in the applicable Service Manual. This Service Bulletin contains these modified procedures and the related descriptions.
AFFECTED VEHICLES
2008 Lancer
AFFECTED SERVICE MANUAL
2008 LANCER Service Manual

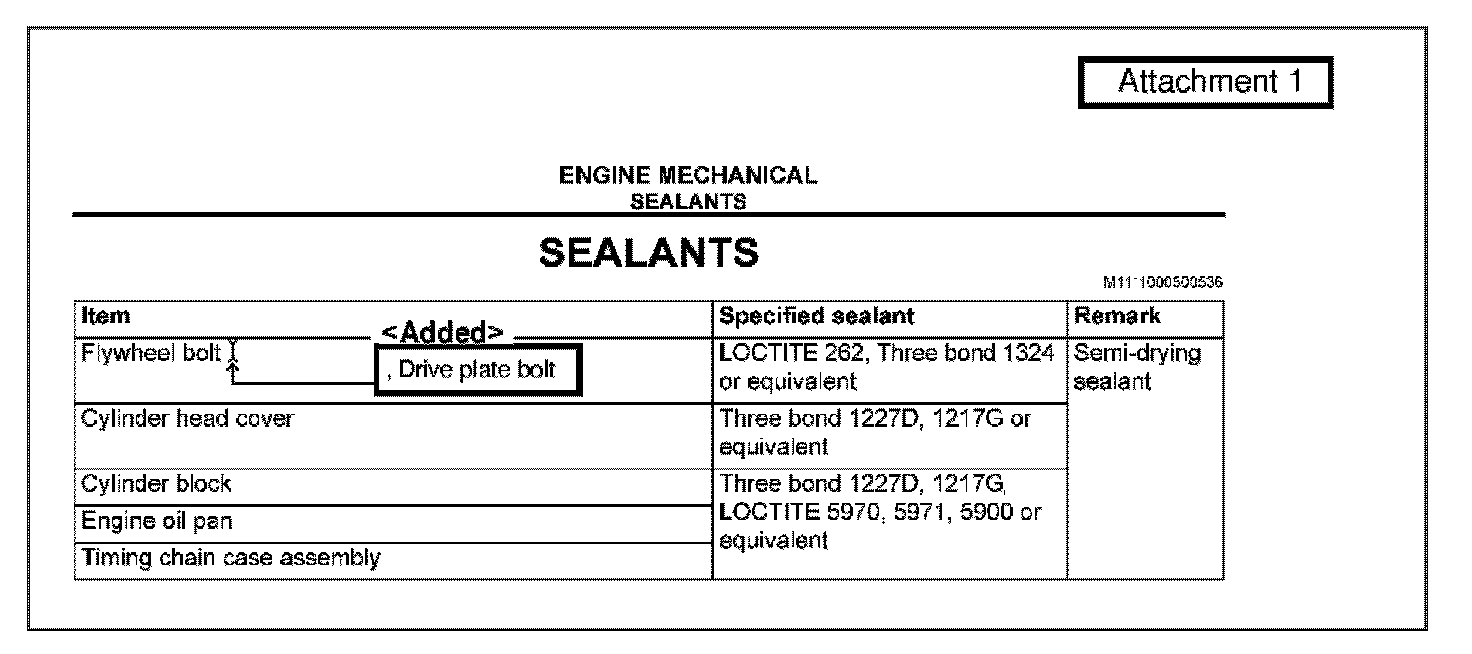

Page 11A-4, See attachment 1

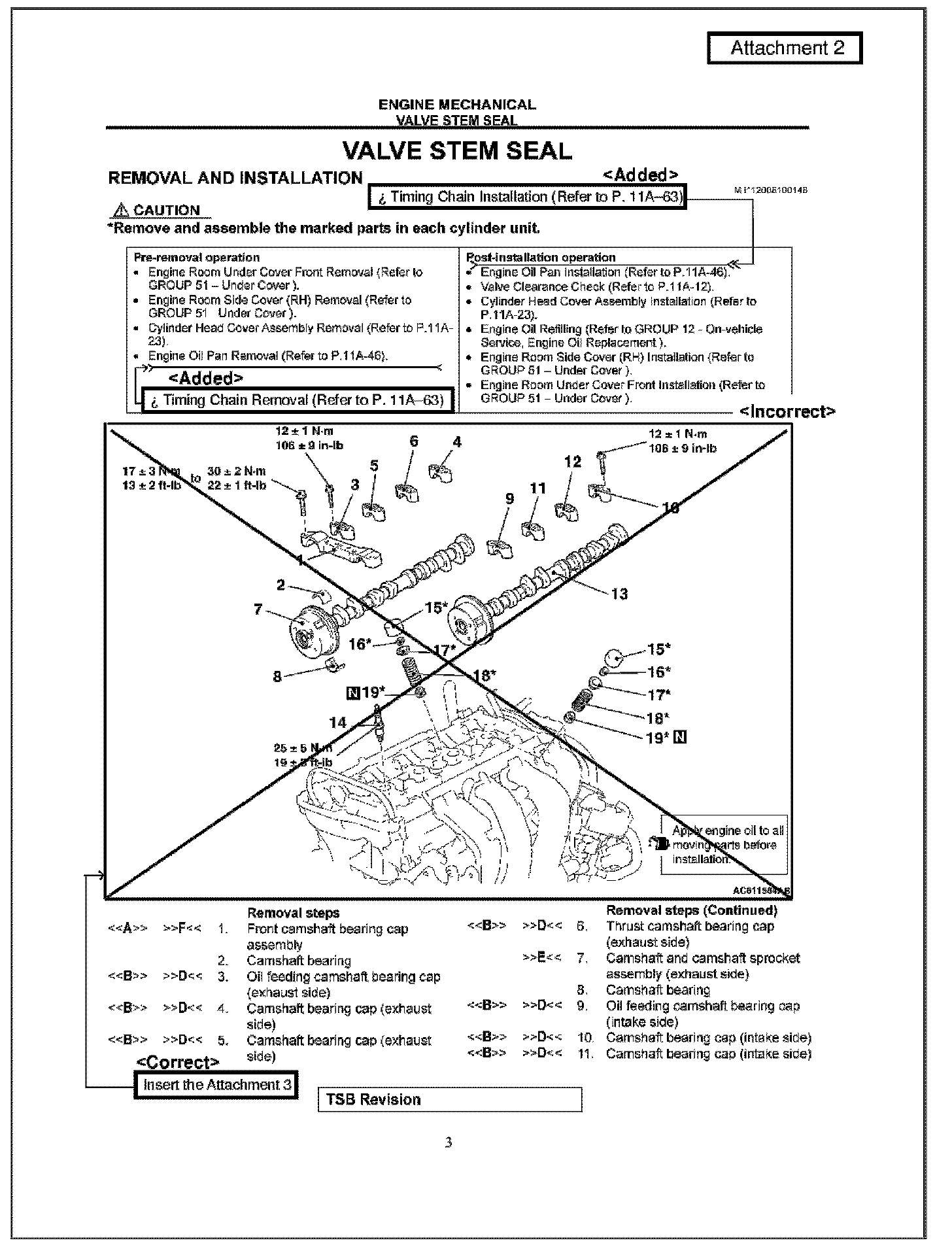

Page 11A-38 See attachment 2

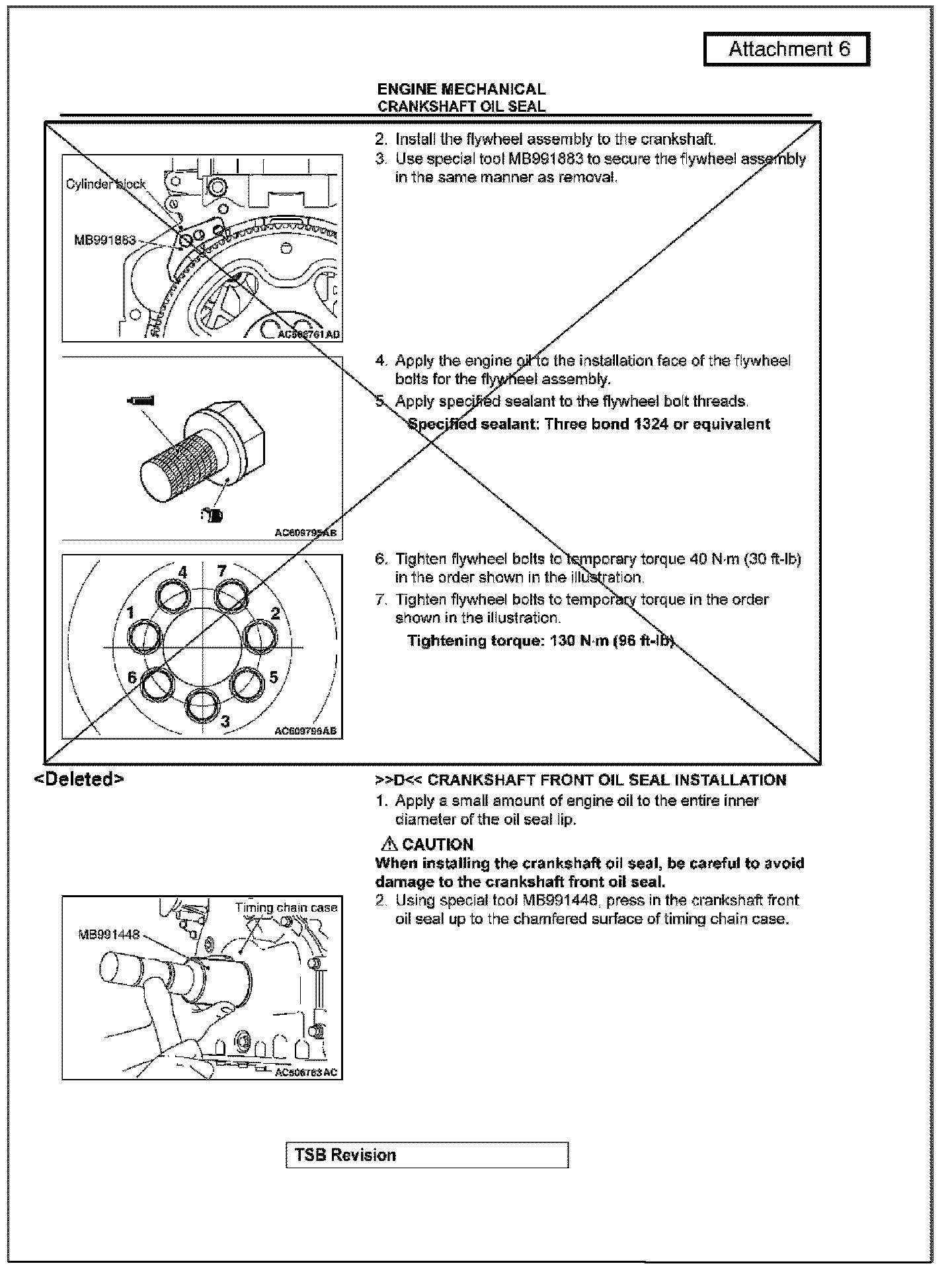

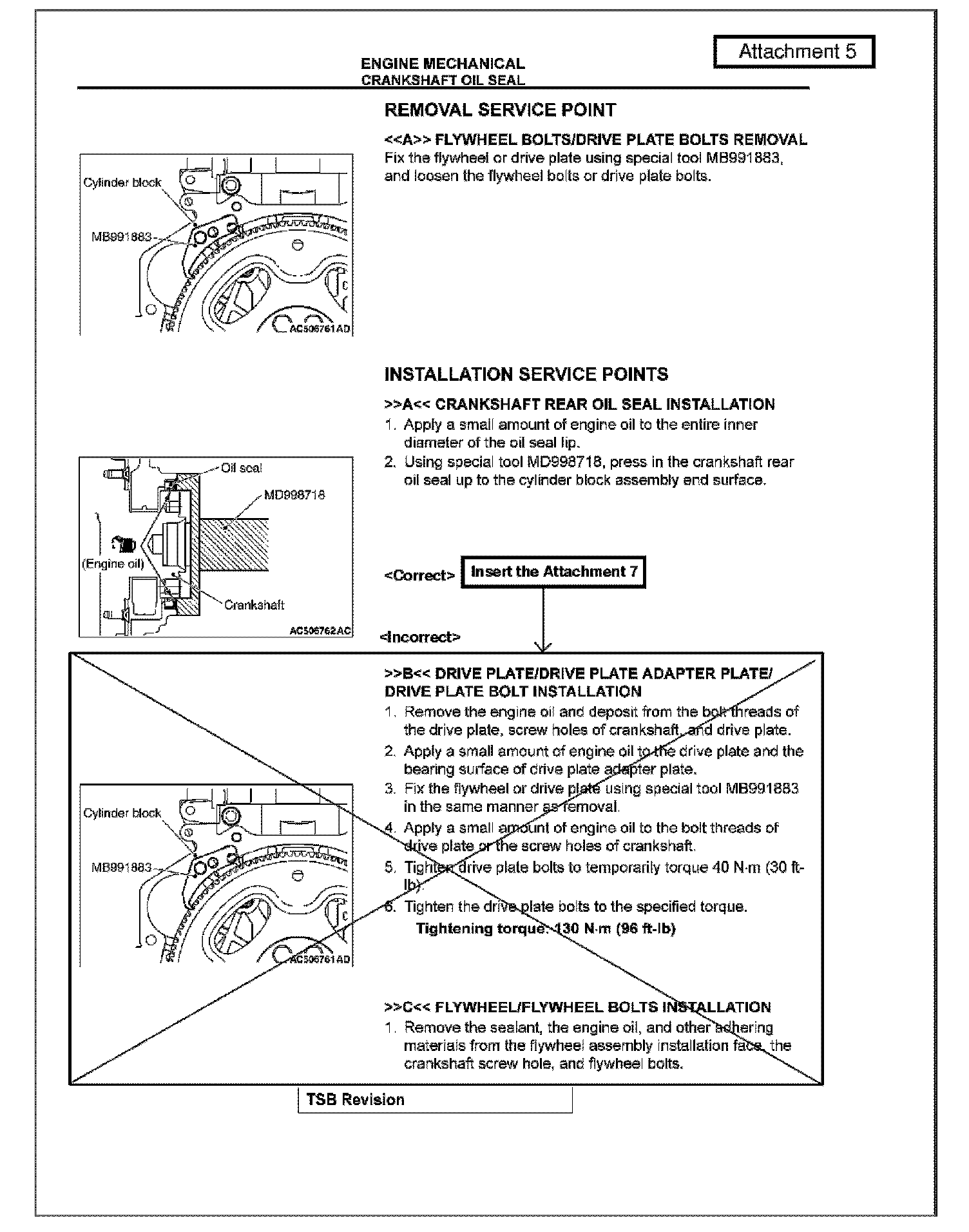

Pages 11A-49 thru 11A-51 See attachments 4 thru 7
