Water Hose and Pipe

WATER HOSE AND PIPE

REMOVAL AND INSTALLATION

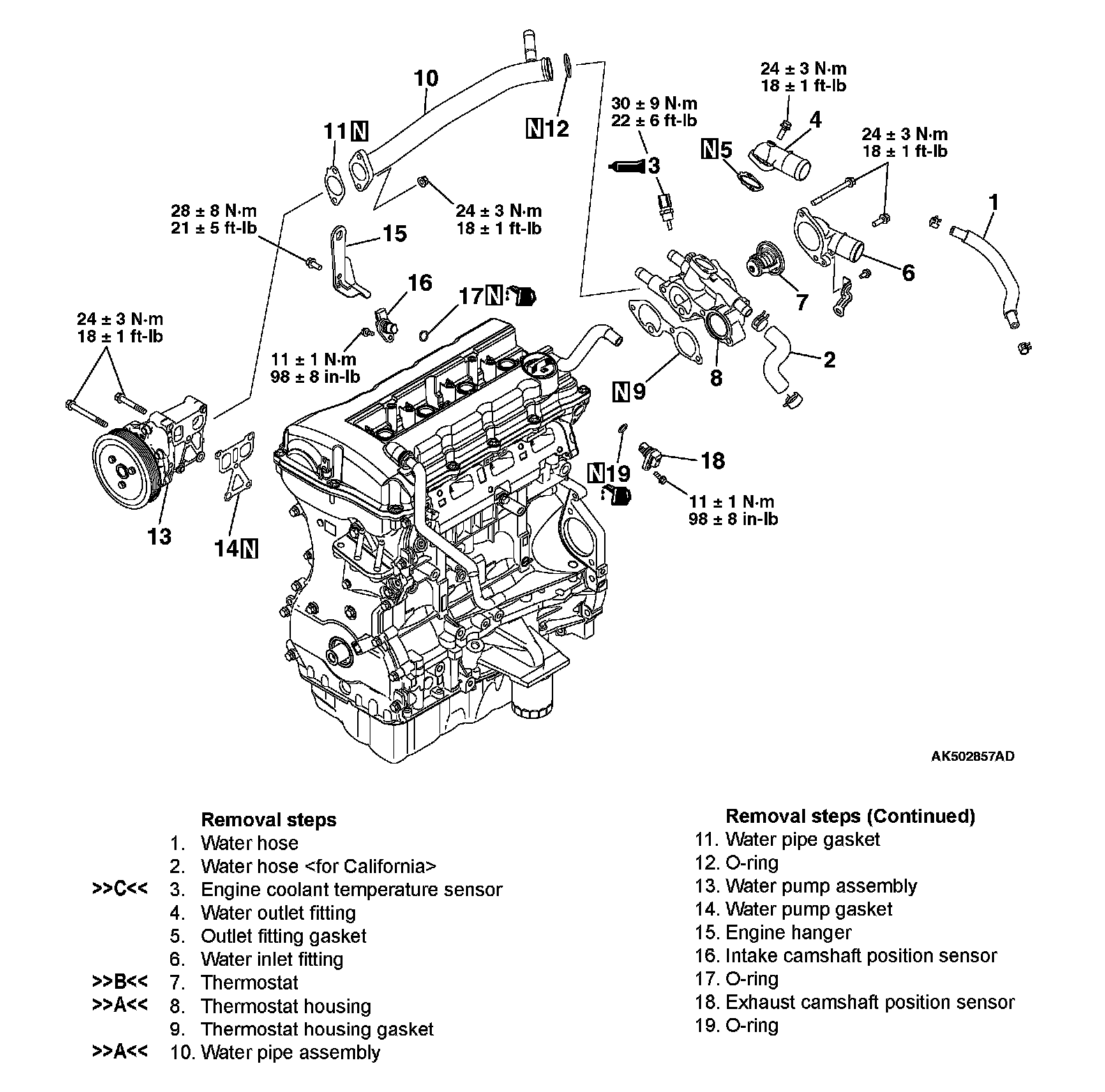

Removal Steps 1-19:

INSTALLATION SERVICE POINTS

]]A[[ THERMOSTAT HOUSING / WATER PIPE ASSEMBLY INSTALLATION
Assemble the thermostat housing and water pipe, and temporarily tighten them to the cylinder head and water pump. Then tighten them to the specified torque.

Specified torque: 24 ± 3 Nm (18 ± 1 ft-lb)

]]B[[ THERMOSTAT INSTALLATION

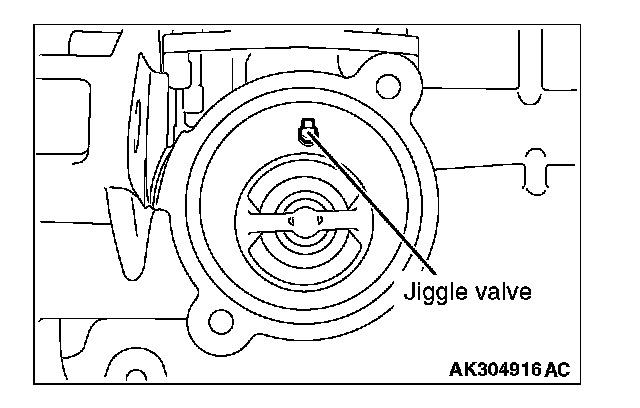

Install the thermostat with the jiggle-valve facing almost straight upwards.

]]C[[ ENGINE COOLANT TEMPERATURE SENSOR INSTALLATION

CAUTION
Be careful not to give a shock, twist and the like to the resin mold with a tool during installation.

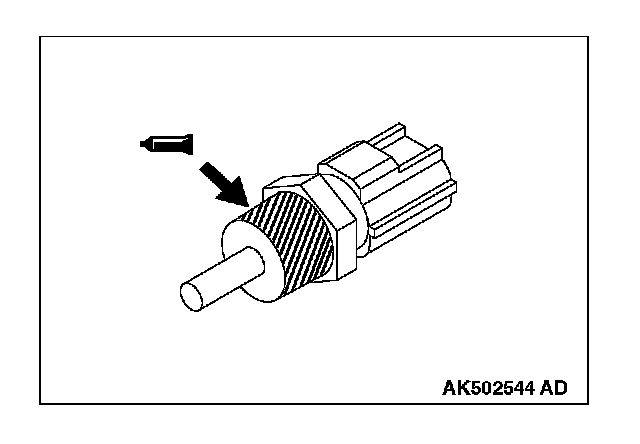

1. Apply an appropriate and minimum amount of sealant (LOCTITE 262 or equivalent) to the engine coolant temperature sensor, taking care not to allow sealant to squeeze out.
2. Tighten the engine coolant temperature sensor to the cylinder block to the specified torque.

Specified torque: 30 ± 9 Nm (22 ± 6 ft-lb)
