Removal and Installation

INTAKE MANIFOLD

REMOVAL AND INSTALLATION

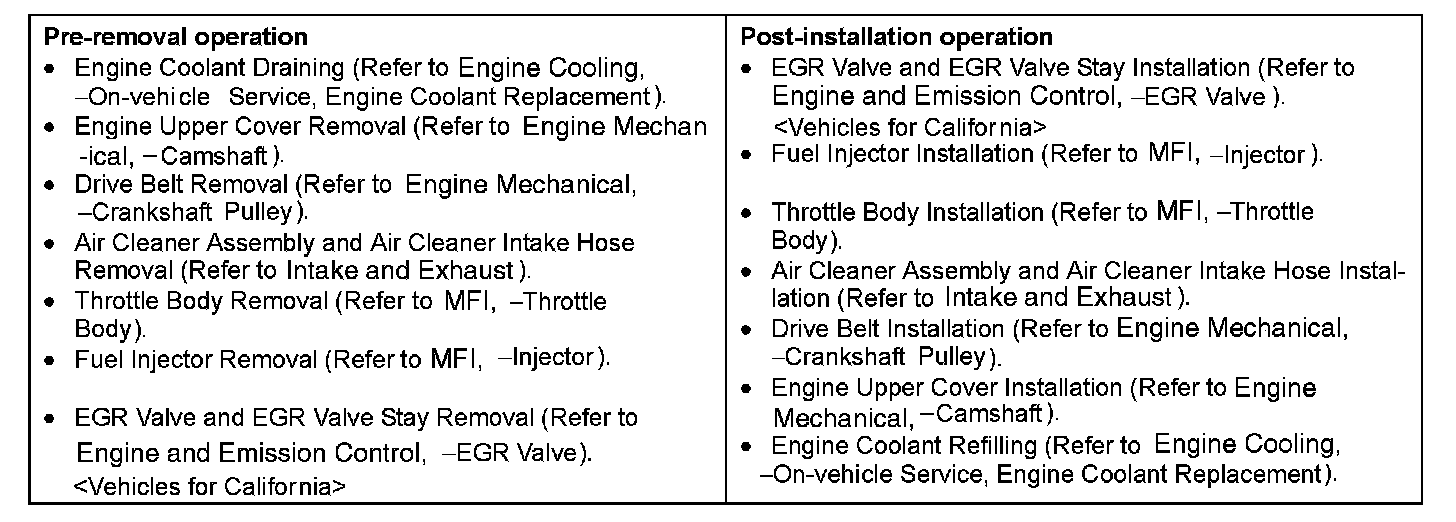

Pre-Removal And Post-Installation Operation:

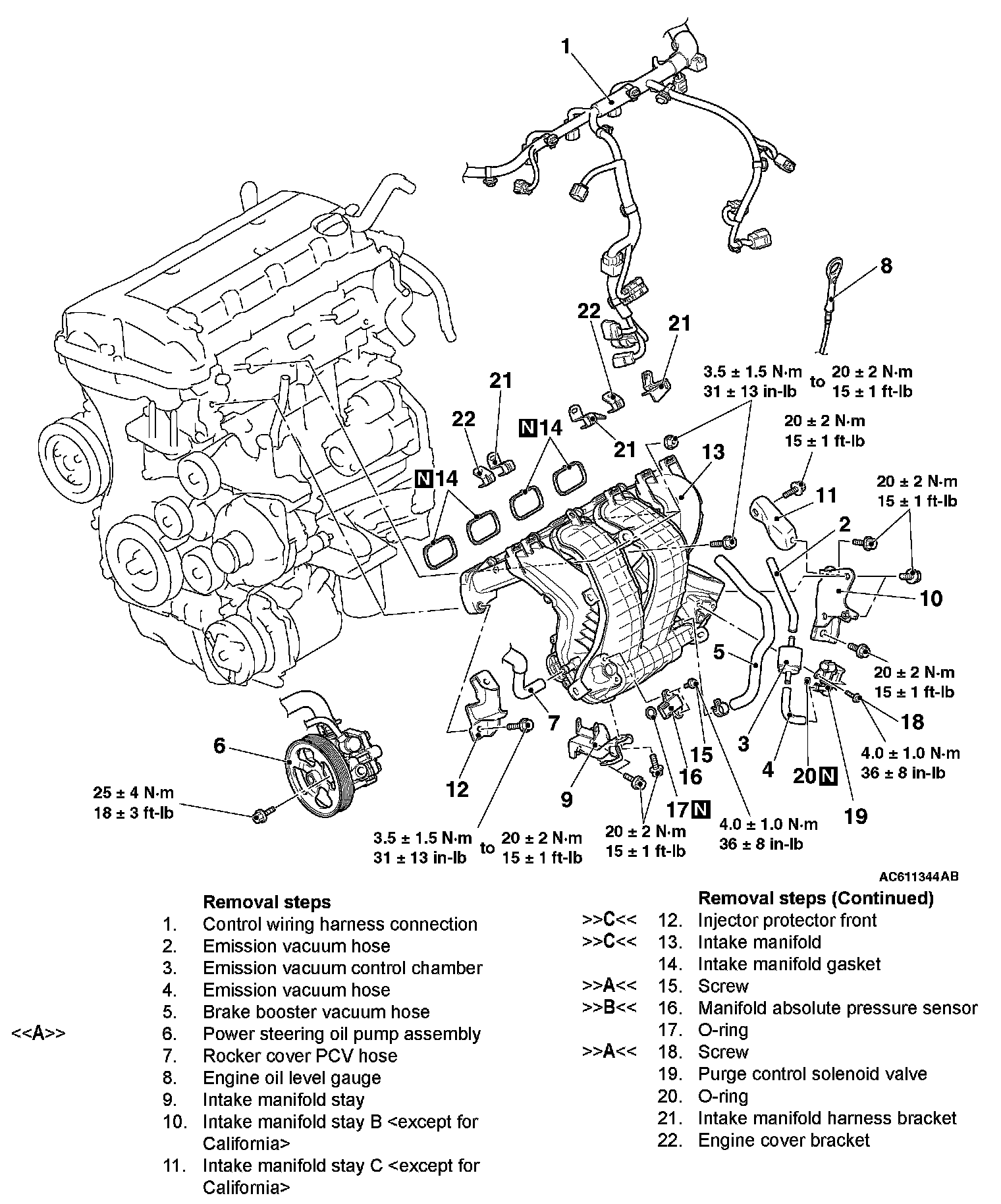

Removal Steps 1-22:

REMOVAL SERVICE POINT

[[A]] POWER STEERING OIL PUMP ASSEMBLY REMOVAL
1. With the hose installed, remove the power steering oil pump assembly from the bracket.
2. Tie the removed power steering oil pump assembly with a string at a position where it will not interfere with the removal and installation of the intake manifold.

INSTALLATION SERVICE POINTS

]]A[[ SCREW INSTALLATION

CAUTION: Do not over-tighten. As the self-forming-type screw is used, the excessive torque can damage the intake manifold threads.

]]B[[ MANIFOLD ABSOLUTE PRESSURE SENSOR INSTALLATION

CAUTION:
- Install the manifold absolute pressure sensor, taking care that no shock is applied to it.
- Do not use a manifold absolute pressure sensor that has been dropped.

]]C[[ INTAKE MANIFOLD/INJECTOR PROTECTOR FRONT INSTALLATION
Install the intake manifold and the injector protector front, and tighten mounting bolts and nuts temporarily.

NOTE: The tightening of the fuel rail assembly, the intake manifold and the injector protector front has the specified order. Temporarily tighten the intake manifold and injector protector front mounting bolts and nuts (Refer to MFI - Injector).
