Engine Mount: Service and Repair

ENGINE MOUNTING

REMOVAL AND INSTALLATION

CAUTION
The part indicated * mark should be temporarily tightened and then should be fully tightened with the engine weight applied on the vehicle body.

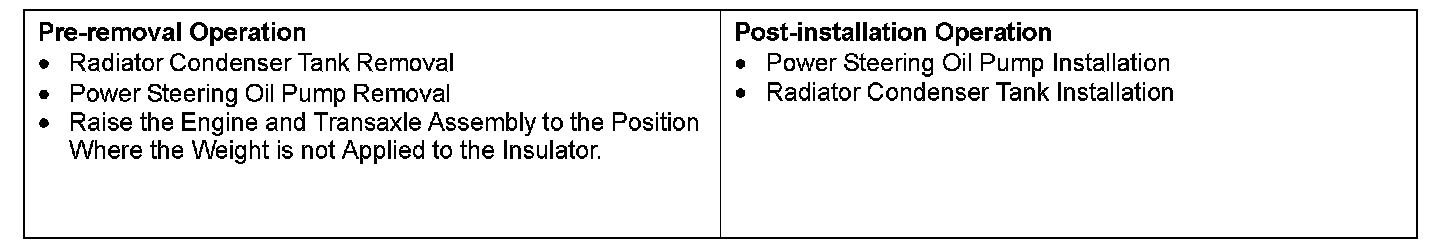

Pre-removal & Post-installation Operation:

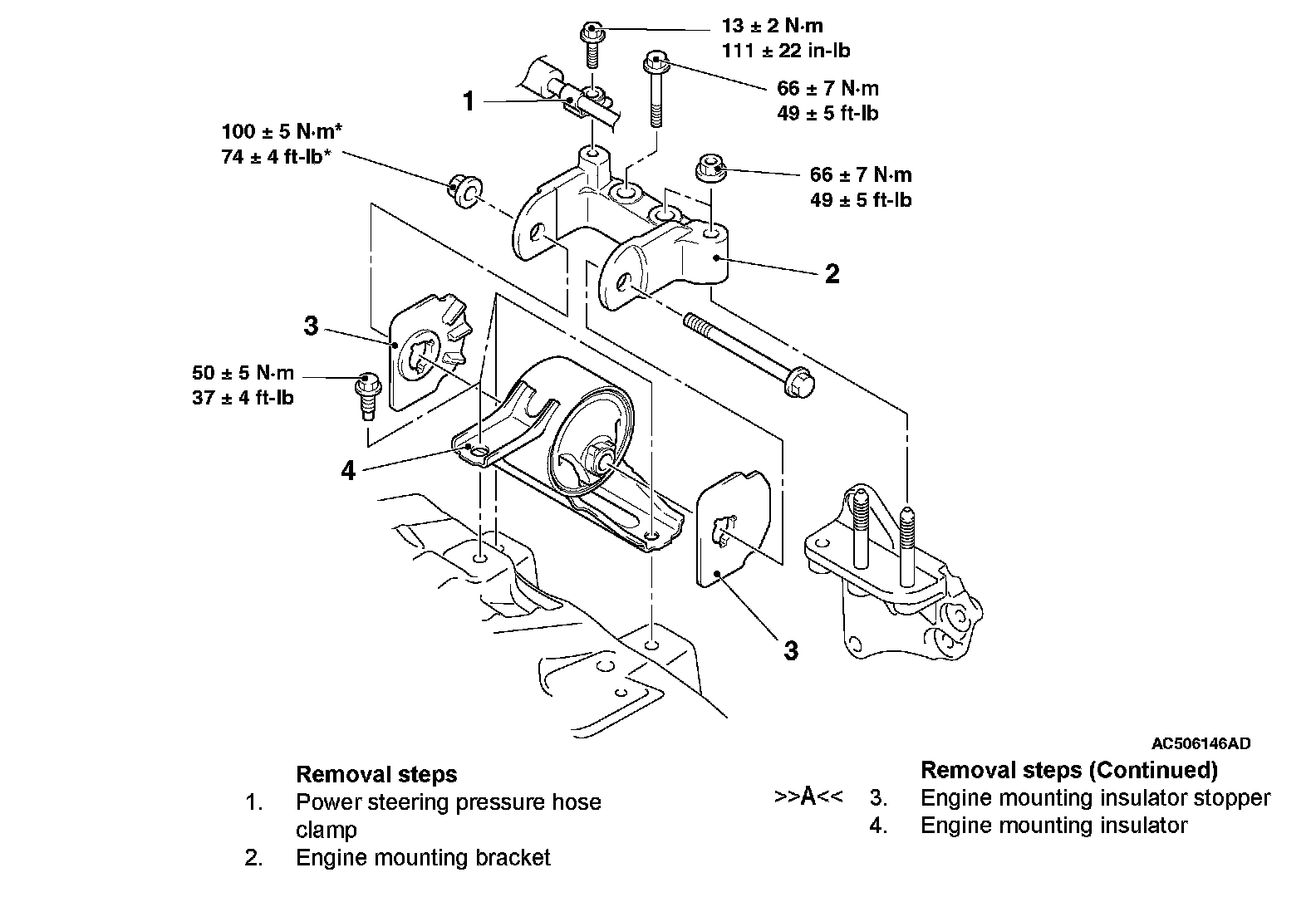

Removal Steps 1-4:

INSTALLATION SERVICE POINT

]]A[[ ENGINE MOUNTING INSULATOR STOPPER INSTALLATION

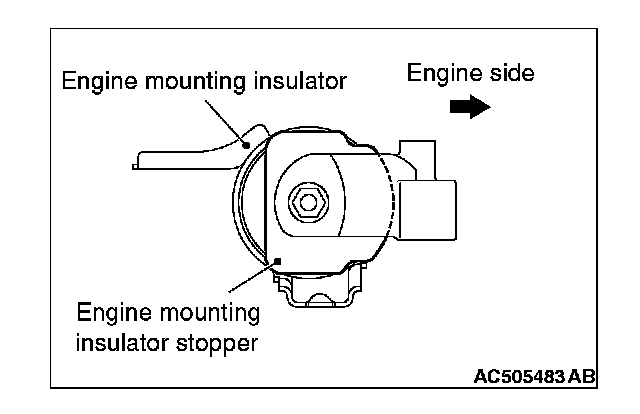

Install the engine mounting insulator stopper as shown in the figure.
