Home >> Mitsubishi >> 2008 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module Relay >> Testing and Inspection

Radiator Cooling Fan Control Module Relay: Testing and Inspection

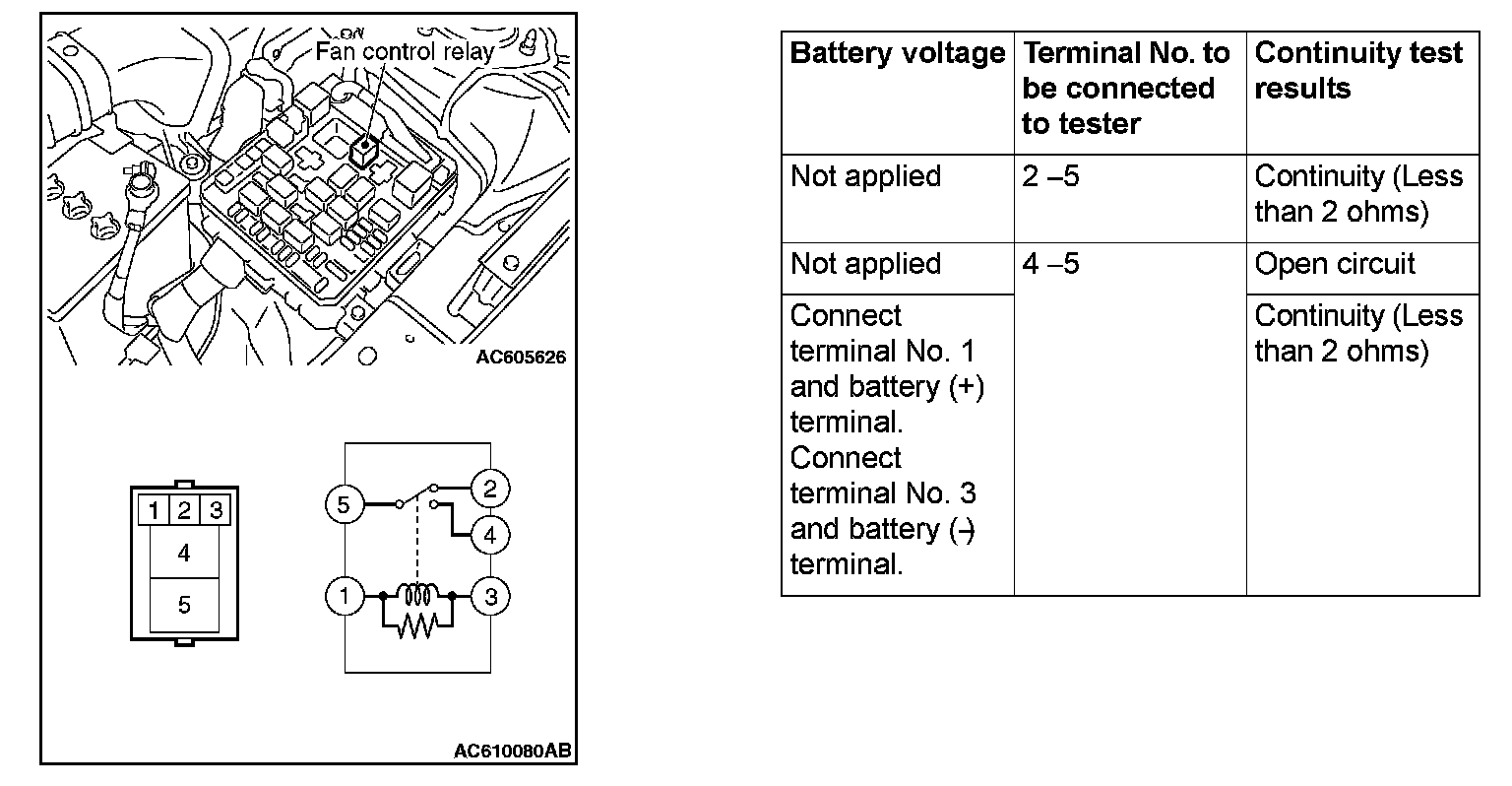

FAN CONTROL RELAY CHECK
