Radiator: Service and Repair

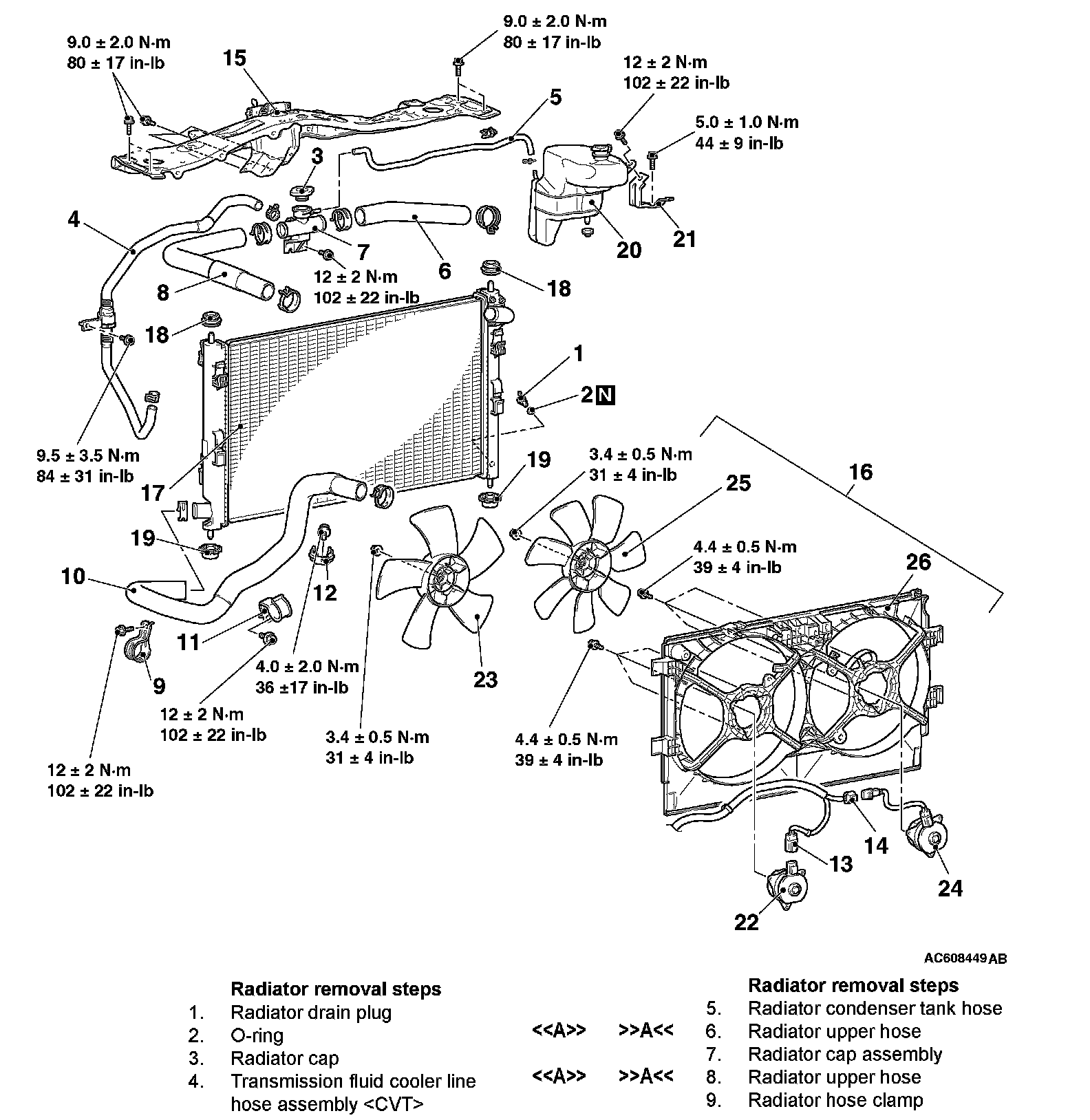

RADIATORREMOVAL AND INSTALLATION

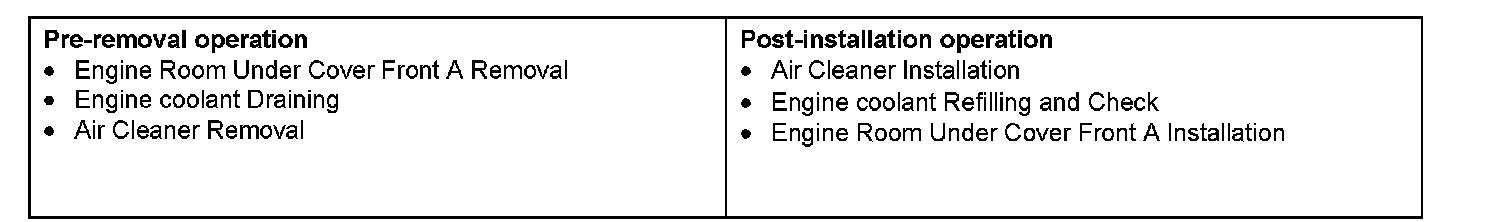

Pre-removal & Post-installation Operation:

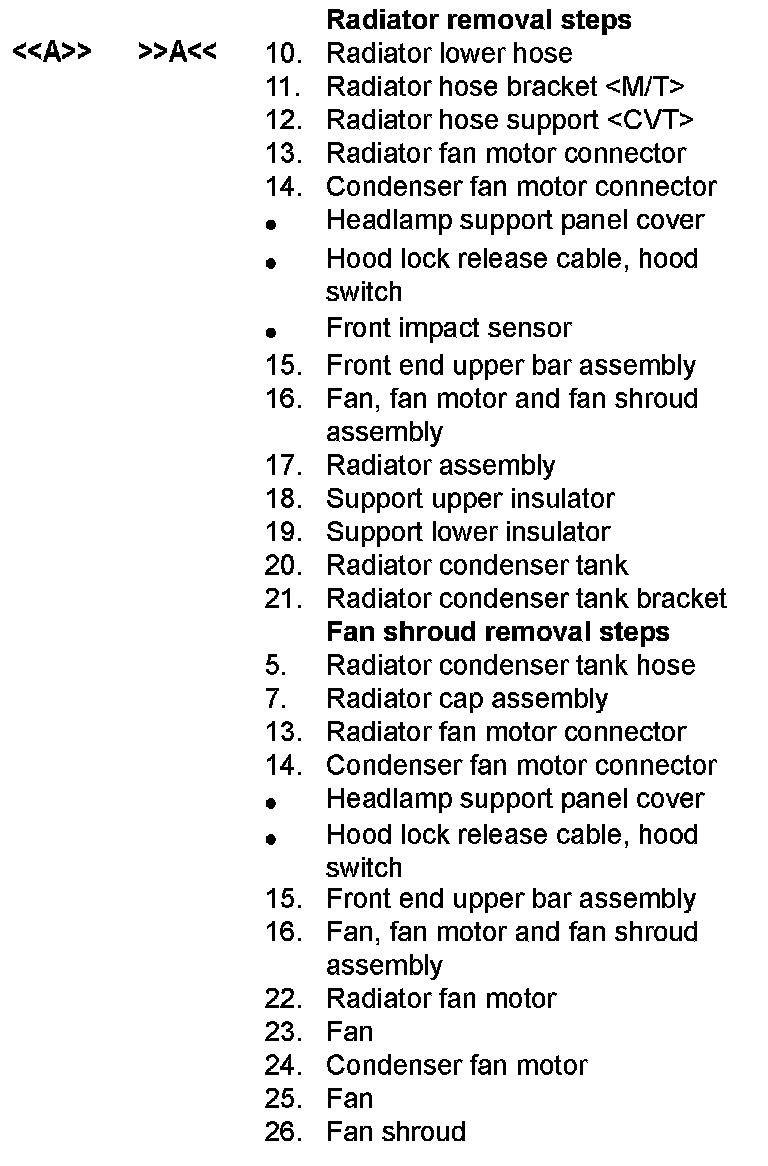

Removal Steps 1-9:
Removal Steps 10-26:
REMOVAL SERVICE POINT
[[A]] RADIATOR UPPER HOSE/RADIATOR LOWER HOSE REMOVAL

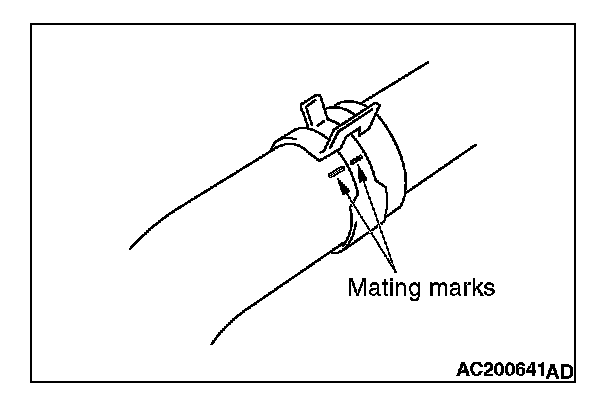

Make mating marks on the radiator hose and the hose clamp. Disconnect the radiator hose.
INSTALLATION SERVICE POINT
]]A[[ RADIATOR LOWER HOSE/RADIATOR UPPER HOSE INSTALLATION

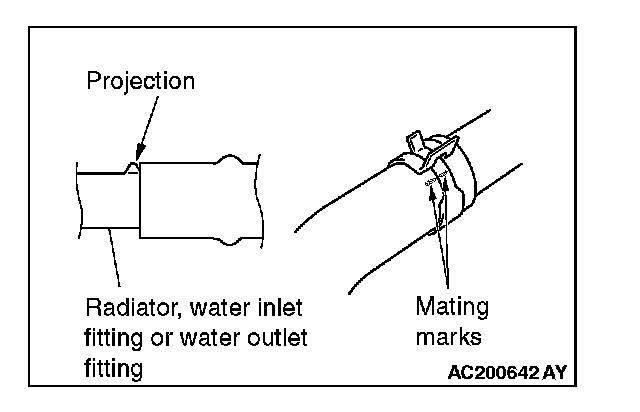

1. Insert each hose as far as the projection of the water inlet fitting, water outlet fitting or radiator.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
