Auto-Cruise Control Main Switch Check
AUTO-CRUISE CONTROL SWITCH CHECKAUTO-CRUISE CONTROL MAIN SWITCH CHECK

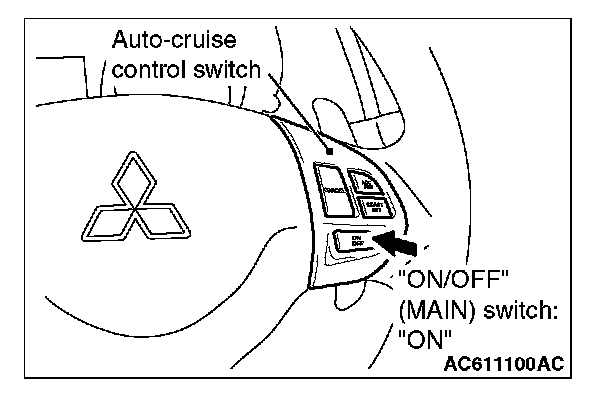

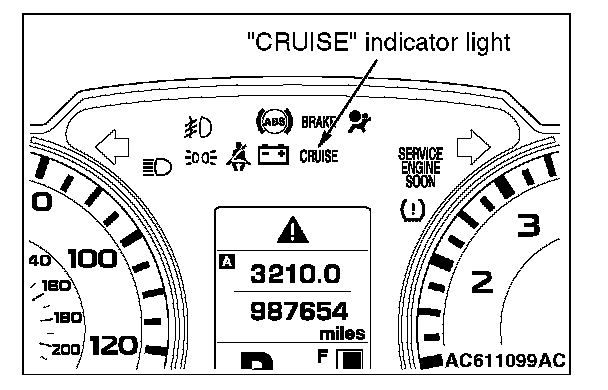

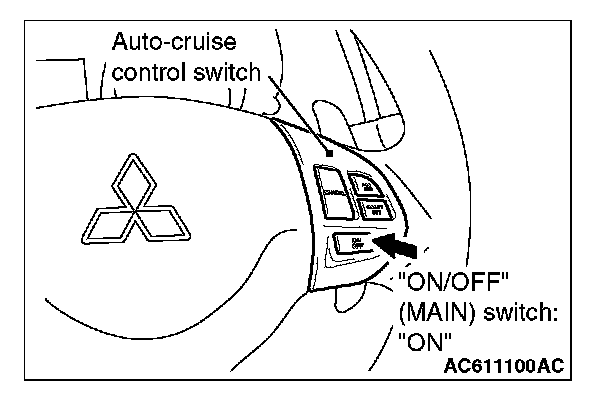

1. Check that the "CRUISE" indicator light within the combination meter illuminates when the "ON/OFF" (MAIN) switch is switched "ON".
2. Press the "ON/OFF" (MAIN) switch again, and check that the "CRUISE" indicator light within the combination meter goes out.
AUTO-CRUISE CONTROL SETTING

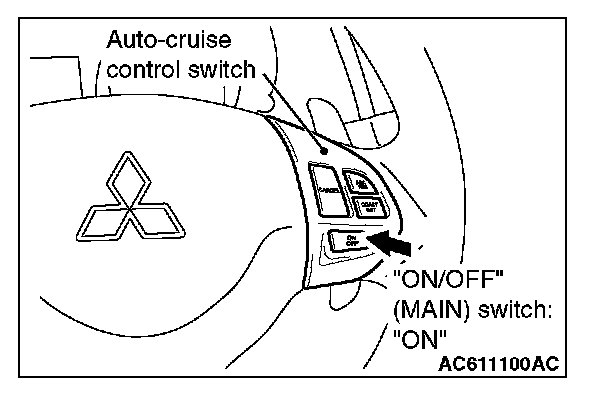

1. Switch the "ON/OFF" switch to "ON".
2. Drive at the desired speed, above approximately 40 km/h (25 mph).

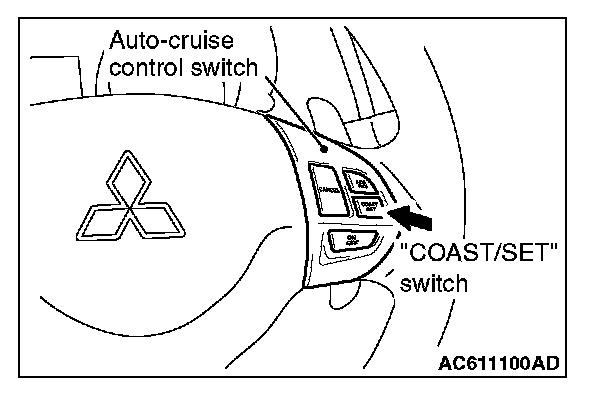

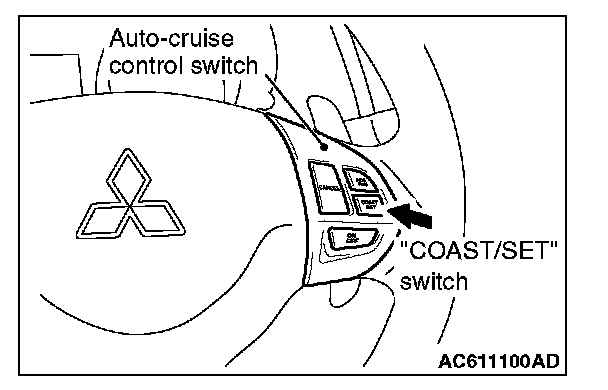

3. Push the "COAST/SET" switch.
4. Check to be sure that when the "COAST/SET" switch is released the speed is the constant speed.
NOTE: If the vehicle speed decreases to approximately 15 km/h (9 mph) below the set speed because of climbing a hill for example, it is normal for the auto-cruise control to be cancelled. When the vehicle speed becomes approximately 40 km/h (25 mph) or less, driving at constant speed will be cancelled even if the vehicle speed does not decrease 15 km/h (9 mph) or more.
SPEED-INCREASE SETTING

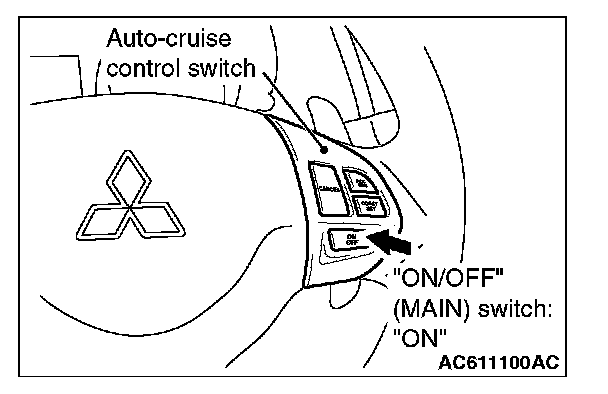

1. Switch the "ON/OFF" switch to "ON".
2. Set to the desired speed, above approximately 40 km/h (25 mph).

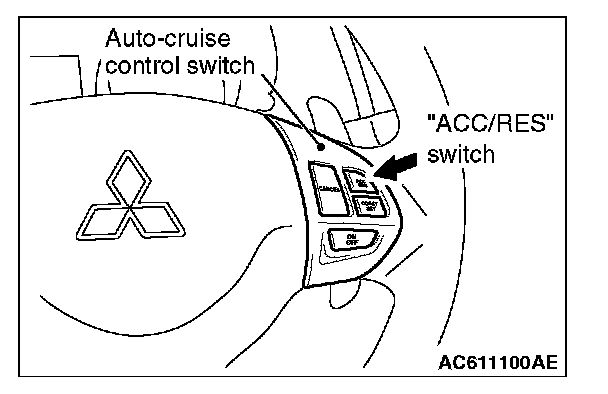

3. Push the "ACC/RES" switch.
4. Check to be sure that acceleration continues while the "ACC/RES" switch is pushed, and that the speed at the time it was released becomes the constant driving speed.
NOTE: Acceleration can be continued even if the vehicle speed has passed the high-speed limit [approximately 200 km/h (125 mph)]. But the constant driving speed when the "ACC/RES" switch is released will be recorded as the high-speed limit.
SPEED-REDUCTION SETTING
1. Switch the "ON/OFF" switch to "ON".
2. Set to the desired speed, above approximately 40 km/h (25 mph).
3. Push the "COAST/SET" switch.
4. Check to be sure that deceleration continues while the "COAST/SET" switch is pushed, and that the speed at the time it was released becomes the constant driving speed.
NOTE: When the vehicle speed reaches the low limit [approximately 40 km/h (25 mph)] during deceleration, the auto-cruise control will be cancelled.
RETURN TO THE SET SPEED BEFORE CANCELLATION AND AUTO-CRUISE CONTROL CANCELLATION

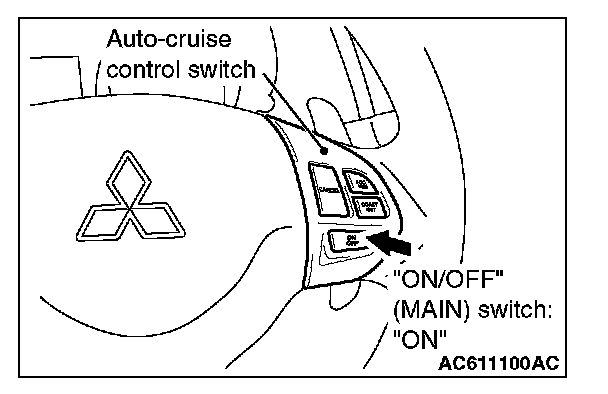

1. Switch the "ON/OFF" switch to "ON".
2. Set to the desired speed, above approximately 40 km/h (25 mph).
3. When any of the following operations are performed while at constant speed during auto-cruise control, check if normal driving is resumed and deceleration occurs.

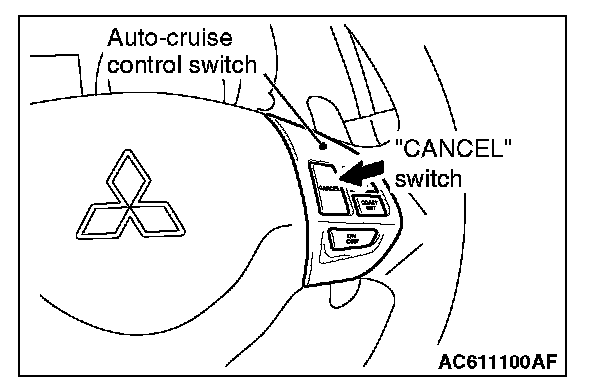

1. The "CANCEL" switch is pushed.
2. The brake pedal is depressed.

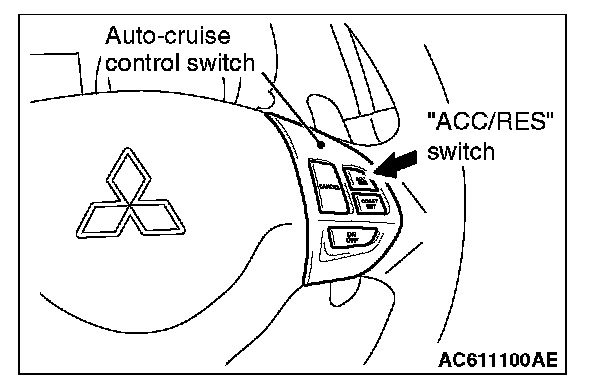

4. At a vehicle speed of approximately 40 km/h (25 mph) or higher, check if when the "ACC/RES" switch is pushed, the vehicle speed returns to the speed before auto-cruise control driving was cancelled, and constant speed driving occurs.
5. When the "ON/OFF" (MAIN) switch is switched to "OFF" while driving at constant speed, check if normal driving is resumed and deceleration occurs.
