Home >> Mitsubishi >> 2008 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Parking Brake Lever >> Service and Repair >> Removal and Replacement

Removal and Replacement

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

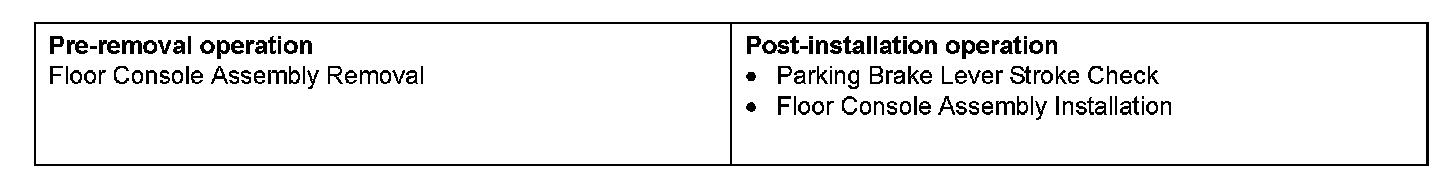

Pre-removal & Post-installation Operation:

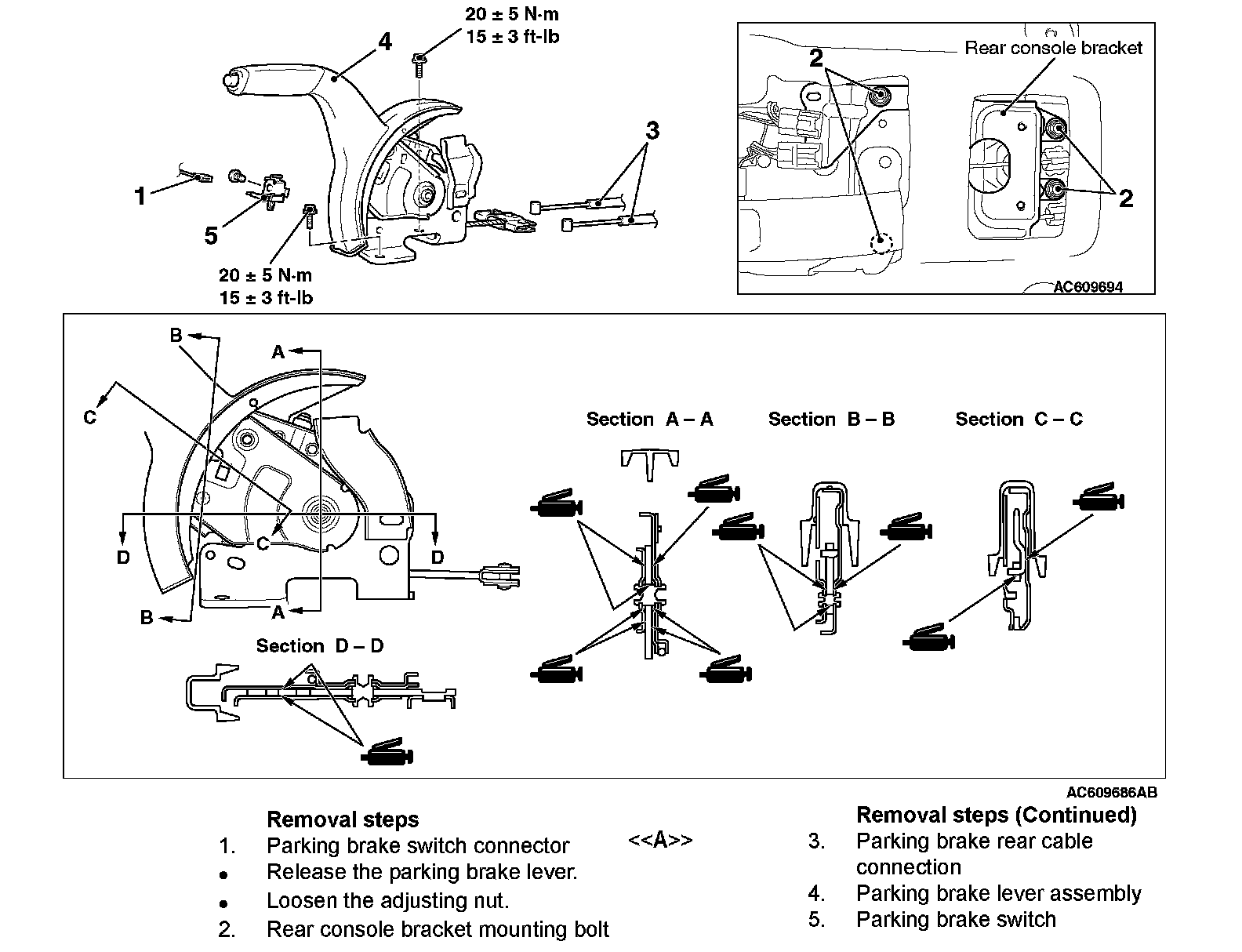

Removal Steps 1-5:





REMOVAL SERVICE POINT

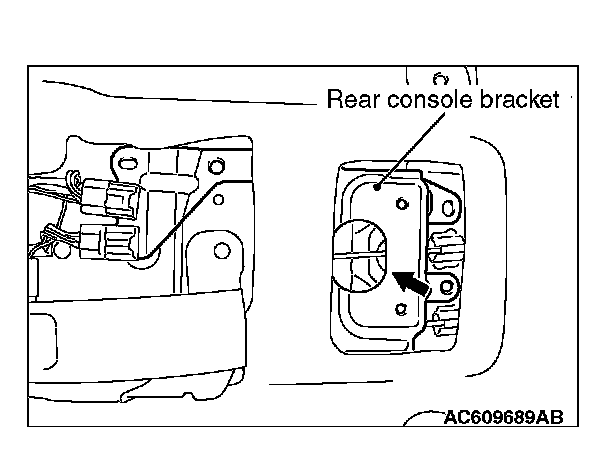

[[A]] PARKING BRAKE REAR CABLE CONNECTION REMOVAL





By sliding the rear console bracket, disconnect the parking brake rear cable from the hole indicated by the arrow.
