Parking Brake Cable: Service and Repair

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

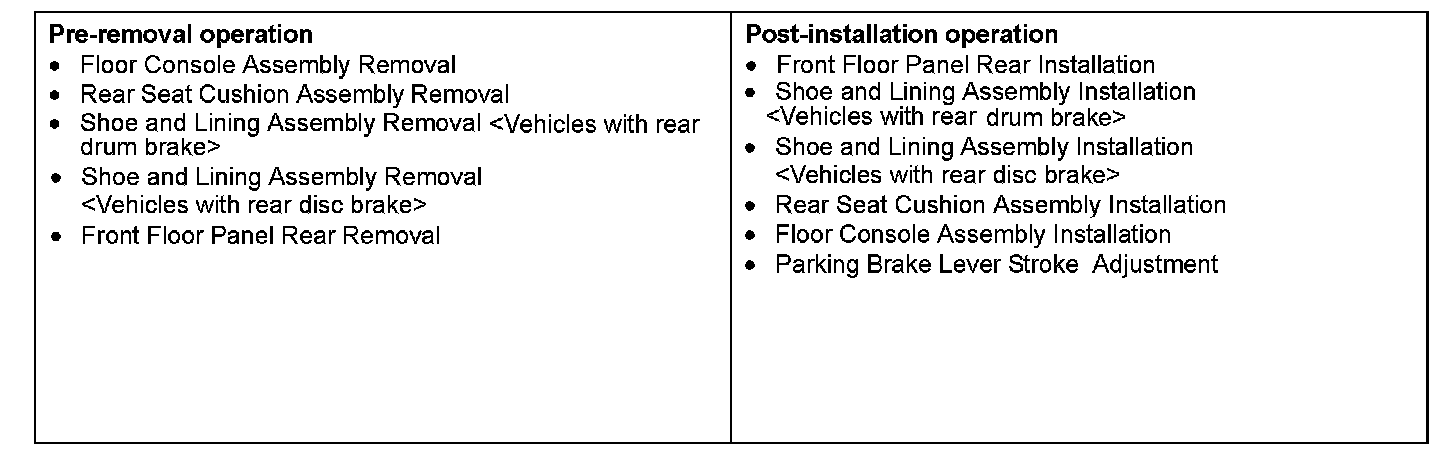

Pre-removal & Post-installation Operation:

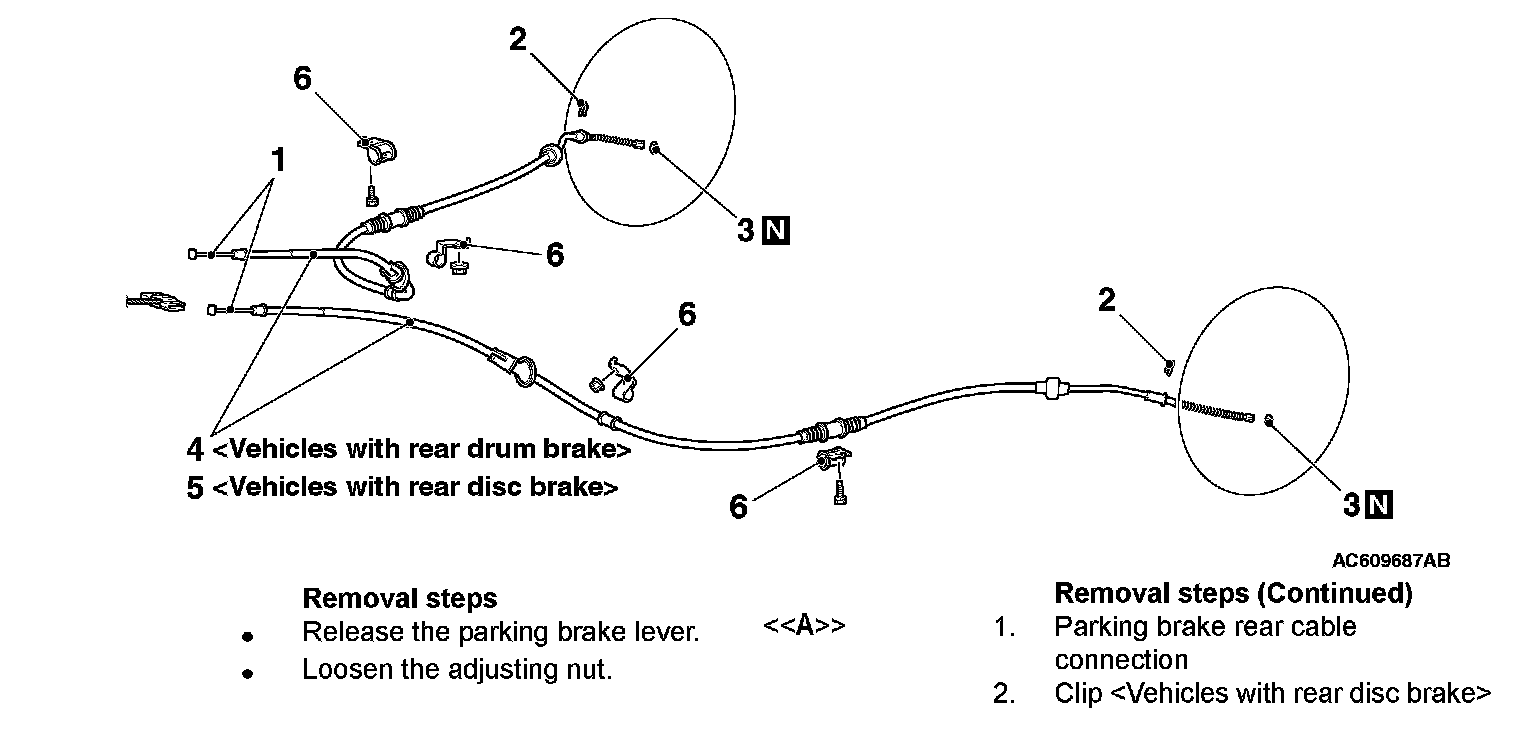

Removal Steps 1-2:

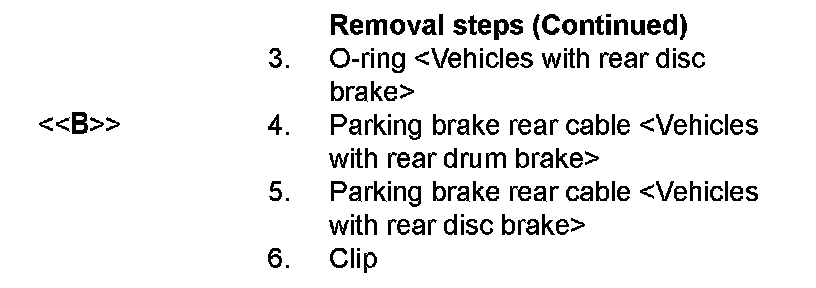

Removal Steps 3-6:

REMOVAL SERVICE POINTS

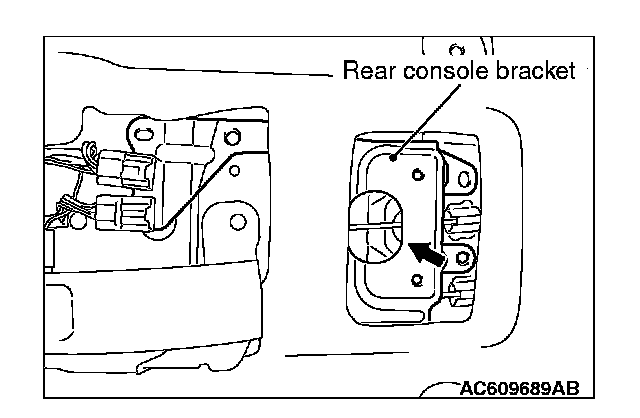

[[A]] PARKING BRAKE REAR CABLE CONNECTION REMOVAL





By sliding the rear console bracket, disconnect the parking brake rear cable from the hole indicated by the arrow.

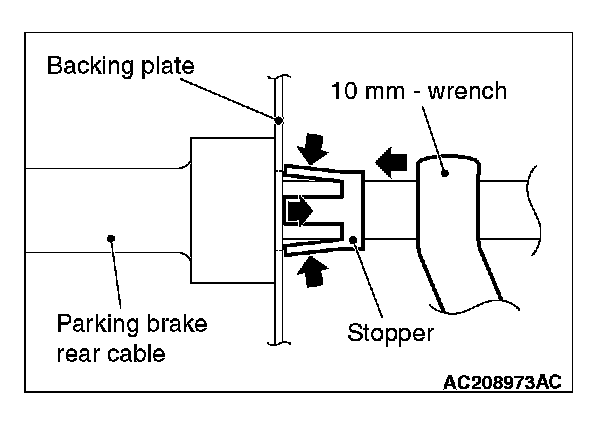

[[B]] PARKING BRAKE REAR CABLE REMOVAL





Withdraw the parking brake cable from the backing plate.

NOTE: Insert a 10 mm-wrench into the parking brake cable to facilitate the cable withdrawal.
