Parking Brake System: Description and Operation

GENERAL INFORMATION
The mechanical rear-wheel acting type parking brake is adopted, and a parking brake lever is used for that operation.

CONSTRUCTION DIAGRAM

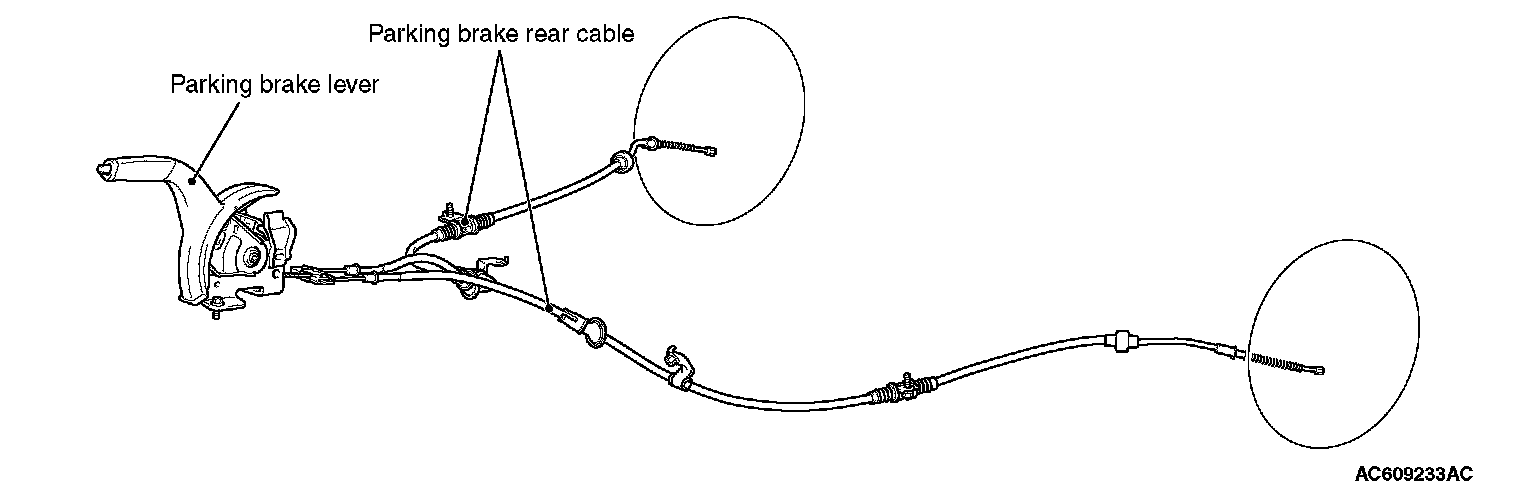

[Vehicles with rear drum brake]

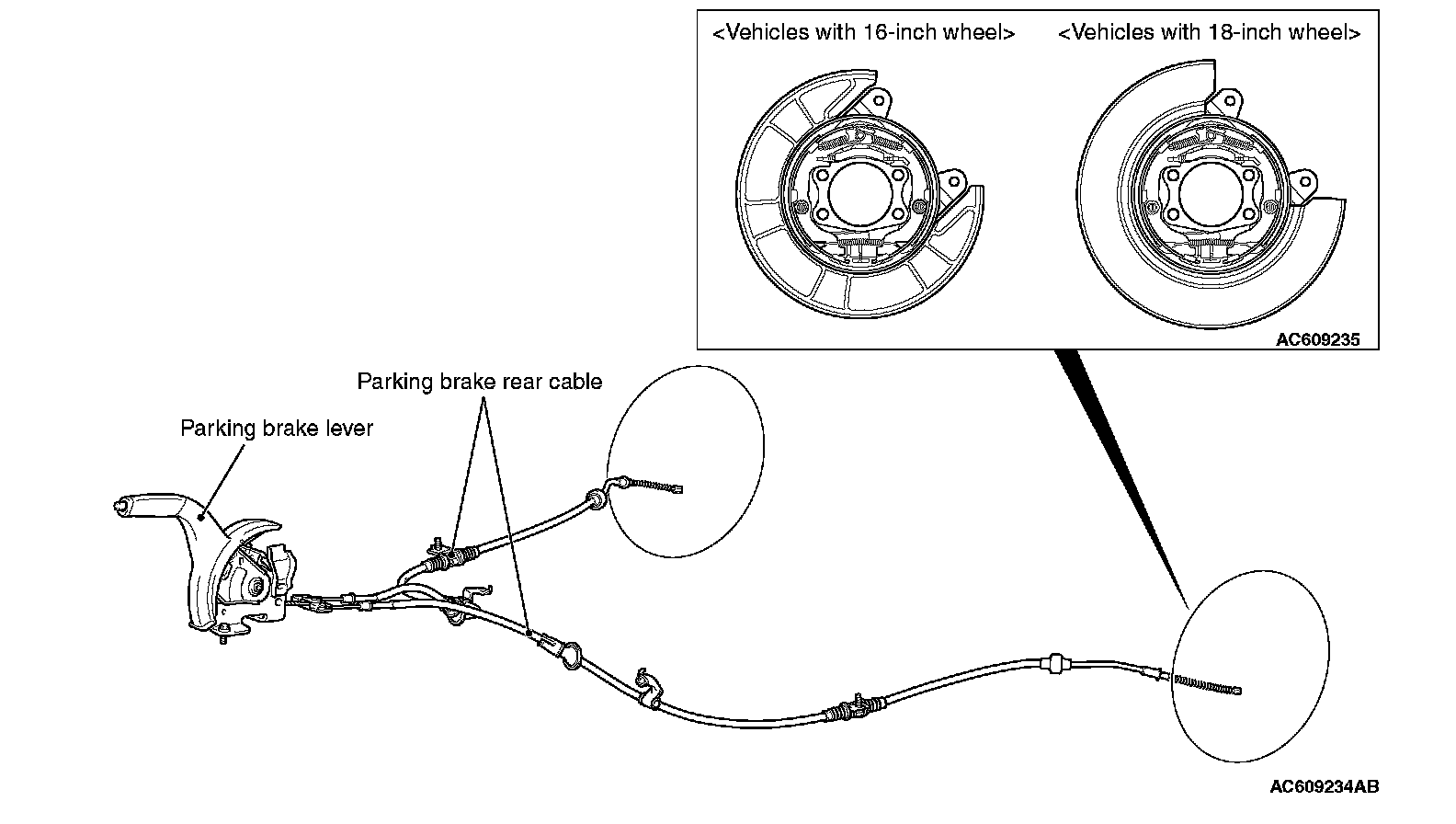

[Vehicles with rear disc brake]
