Removal and Replacement

MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER

REMOVAL AND INSTALLATION

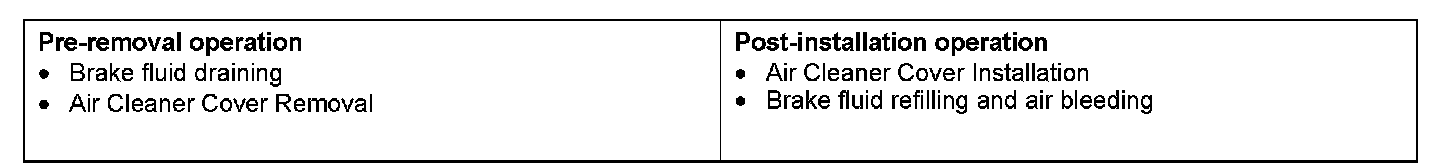

Pre-removal & Post-installation Operation:

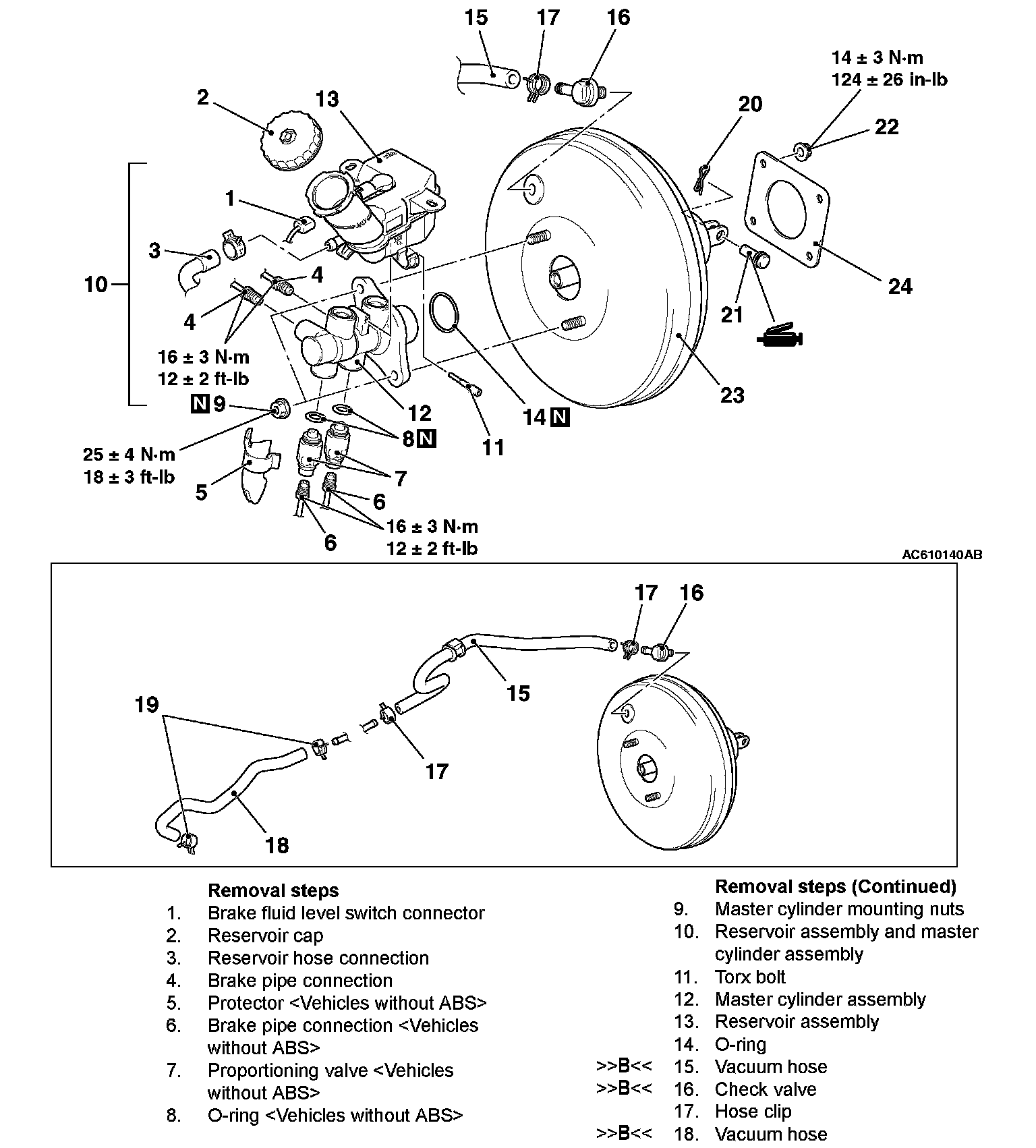

Removal Steps 1-18:

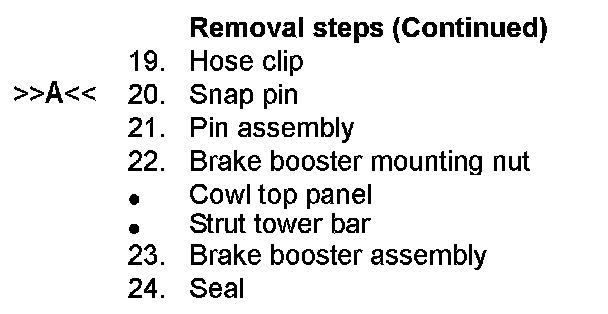

Removal Steps 19-24:

INSTALLATION SERVICE POINTS

]]A[[ SNAP PIN INSTALLATION

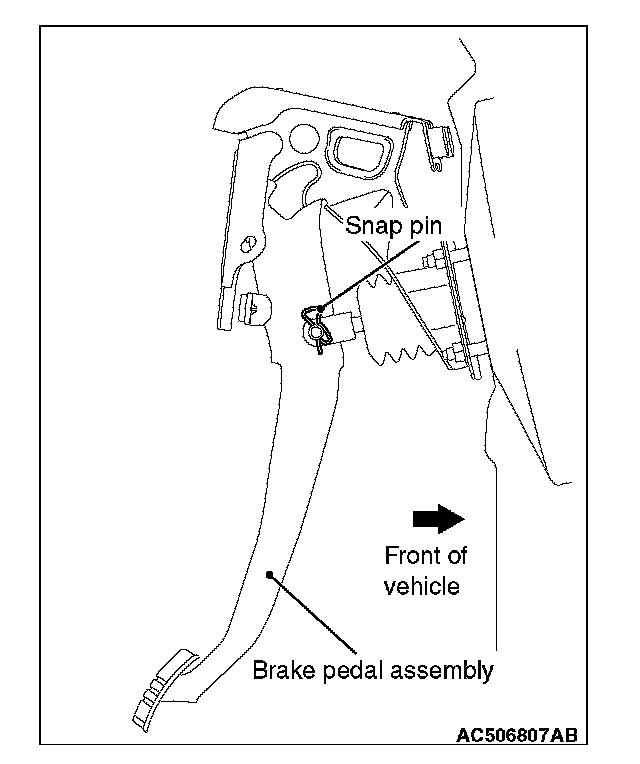

1. Install the snap pin as shown in the figure.

]]B[[ CHECK VALVE AND VACUUM HOSE INSTALLATION





1. Install the check valve to the brake booster as shown in the figure.

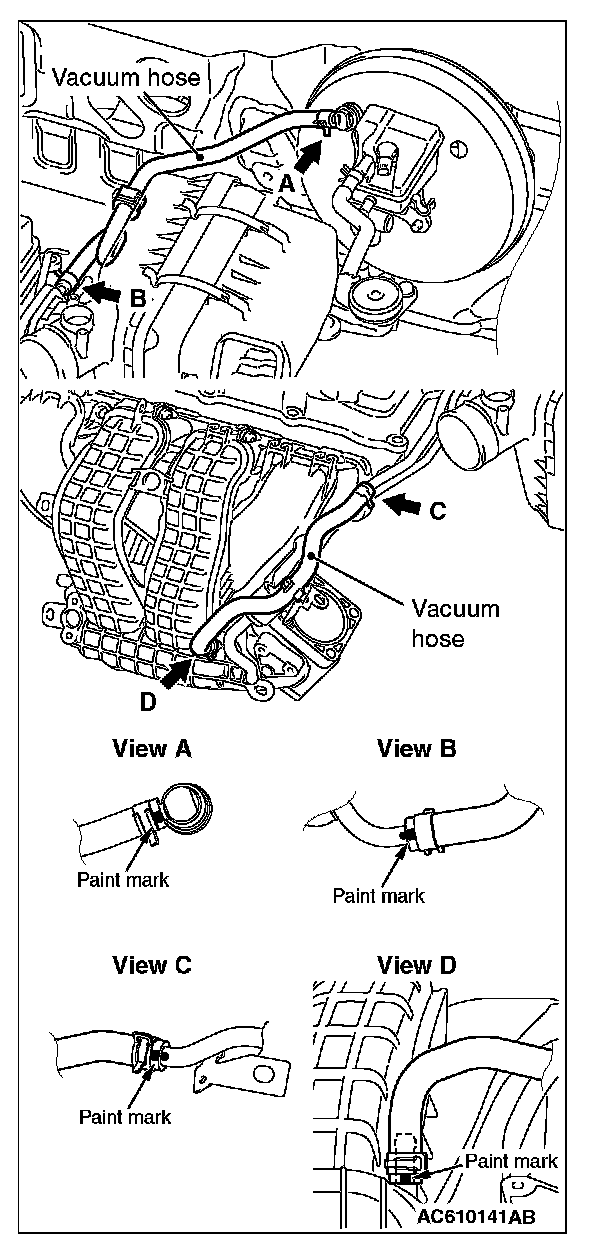

2. Align the mark as shown in the figure to assemble the vacuum hose.
