Removal and Replacement

REAR DRUM BRAKE [Vehicles with rear drum brake]

REMOVAL AND INSTALLATION

CAUTION
^ Do not disassemble the rear wheel hub assembly.
^ The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it. [Vehicles with ABS]
^ When the rear wheel hub assembly is removed/installed, make sure that the magnetic encoder (integrated with inner oil seal) does not contact with surrounding parts to avoid damage. [Vehicles with ABS]
^ When removing and installing the rear wheel speed sensor, make sure that its pole piece at the end does not contact with surrounding parts to avoid damage. [Vehicles with ABS]
^ The part indicated with * is the bolt with friction coefficient stabilizer. In removal, replace it with a new one.

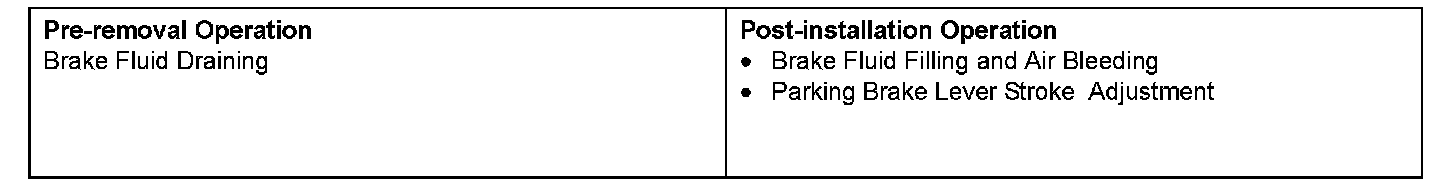

Pre-removal & Post-installation Operation:

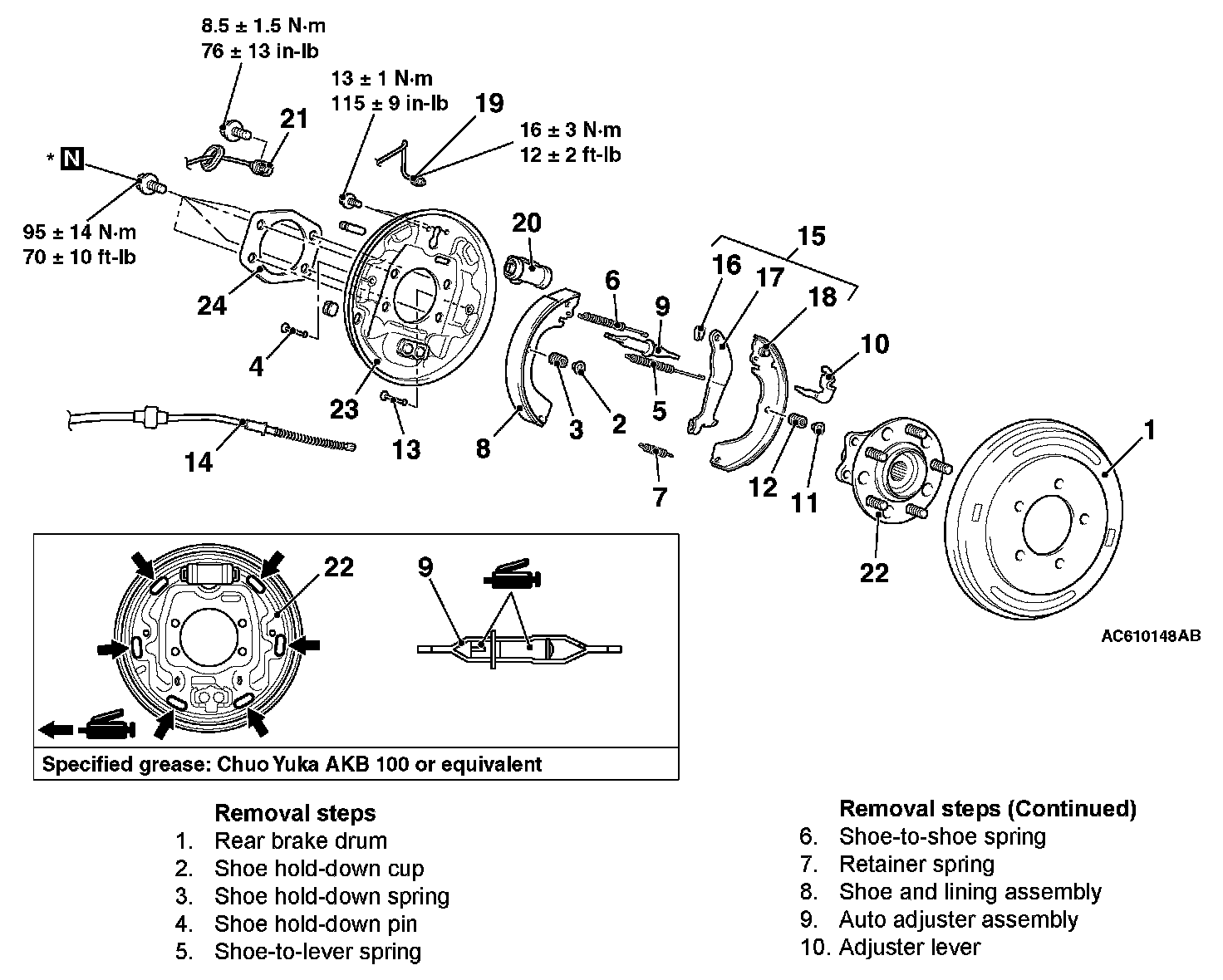

Removal Steps 1-10:

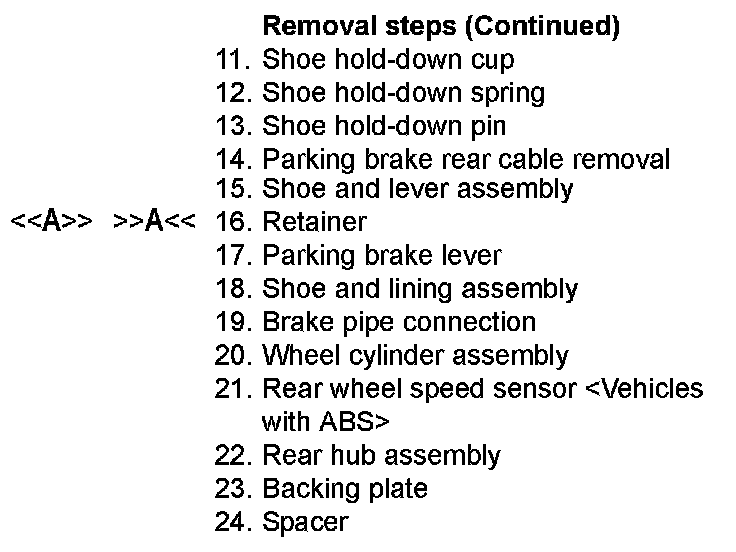

Removal Steps 11-24:

REMOVAL SERVICE POINT

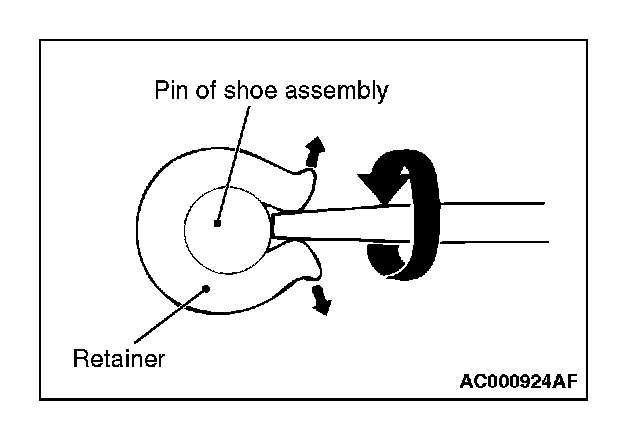

[[A]] RETAINER REMOVAL





Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.

INSTALLATION SERVICE POINT

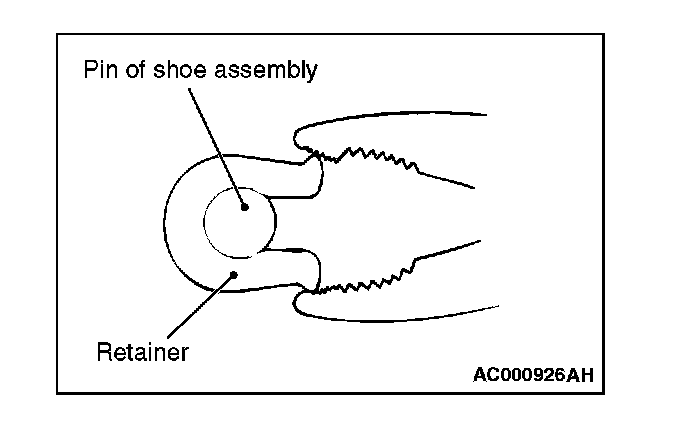

]]A[[ RETAINER INSTALLATION





Use pliers or a similar tool to close the retainer end onto the pin.
