Brakes - Brake Disc Removal Procedure Change

No: TSB-08-26-003

DATE: April, 2008

MODEL: 2007 Outlander, 2008 Lancer

SUBJECT:
BRAKE DISC REMOVAL PROCEDURE CHANGE - SERVICE MANUAL REVISION

PURPOSE

The brake disc service holes have been eliminated in production effective with first production of Affected Vehicles. This Technical Service Bulletin provides amended pages for the applicable Service Manuals.

AFFECTED VEHICLE(S)
2007 Outlander
2008 Lancer

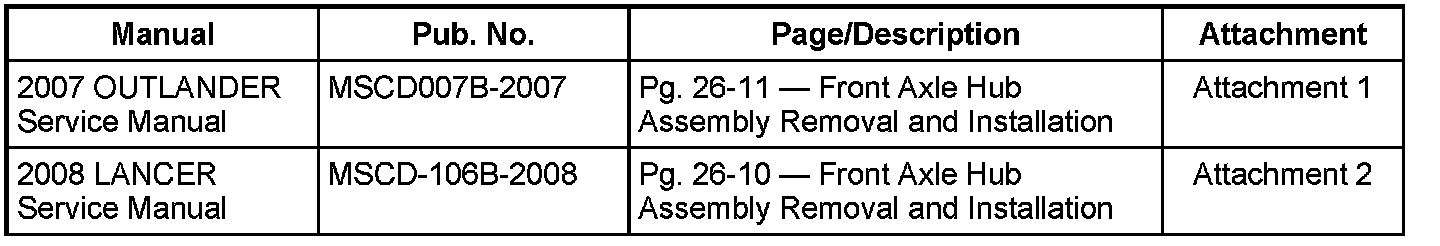

APPLICABLE MANUAL(S)

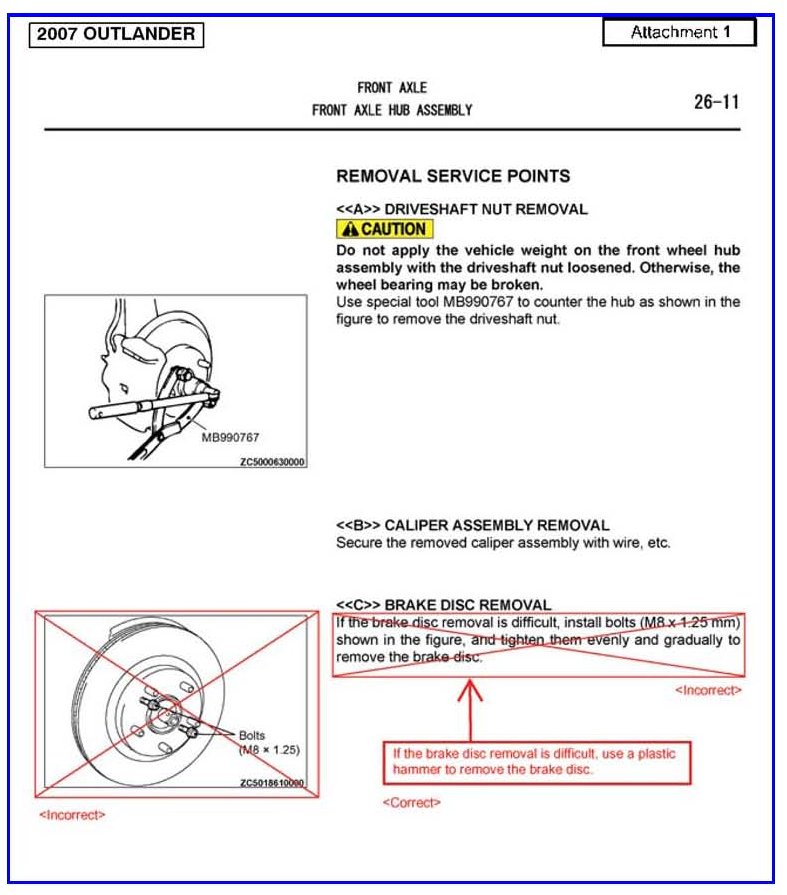

Service Manual Revision Page 26-11

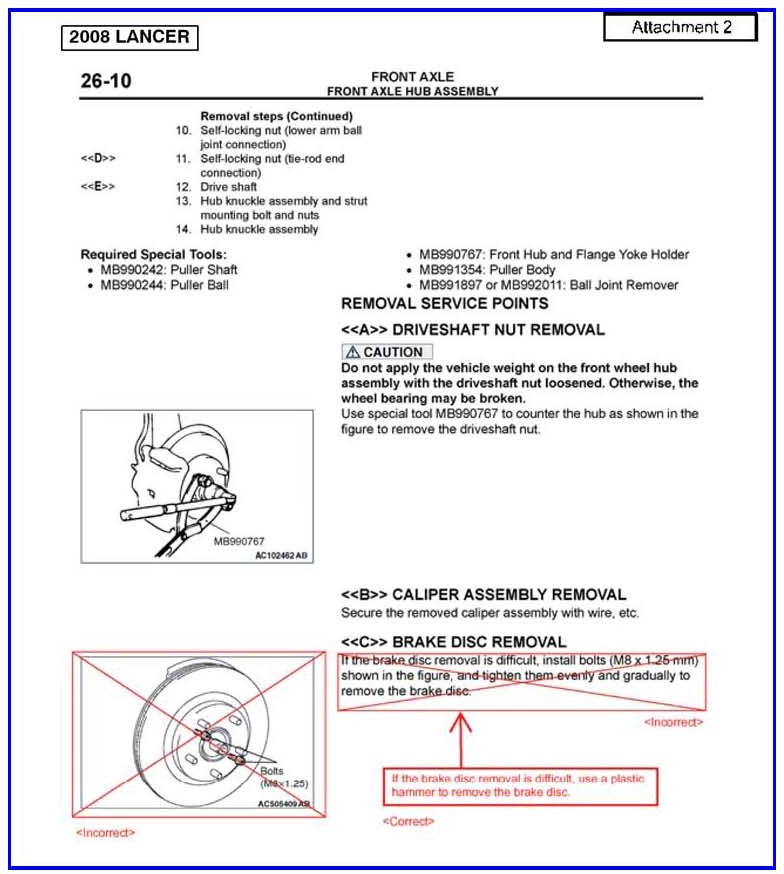

Service Manual Revision Page 26-10
