Rear

REAR DISC BRAKE ASSEMBLY [Vehicles with rear disc brake]

REMOVAL AND INSTALLATION

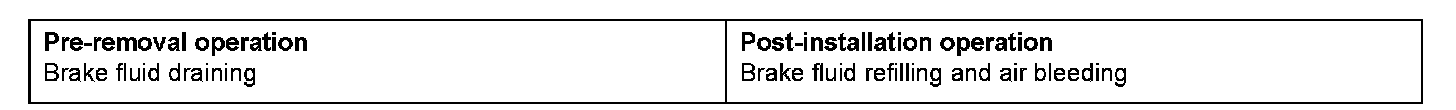

Pre-removal & Post-installation Operation:

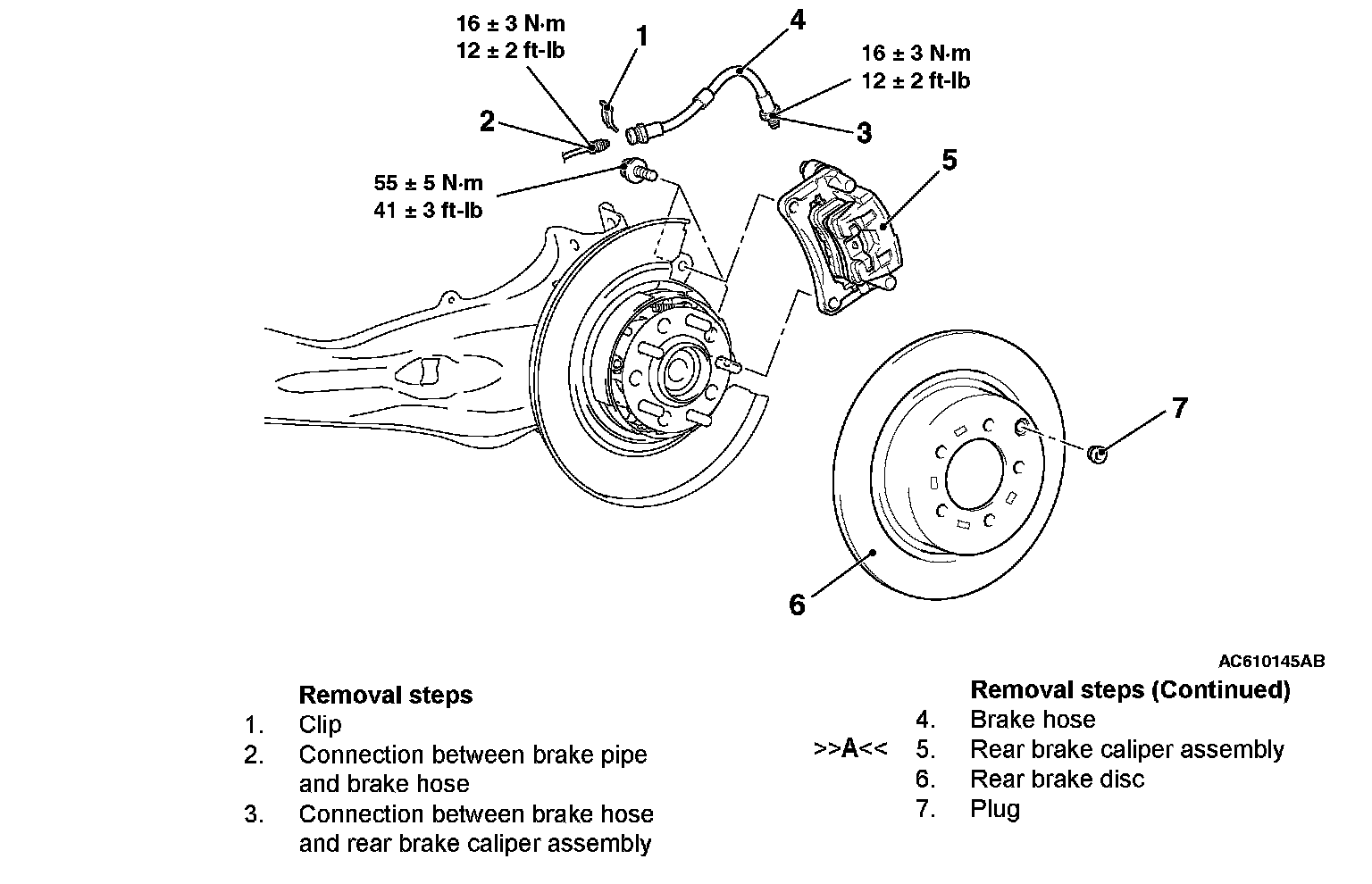

Removal Steps 1-7:

INSTALLATION SERVICE POINTS

]]A[[ REAR BRAKE CALIPER ASSEMBLY INSTALLATION
Measure the brake drag force in the following procedure:

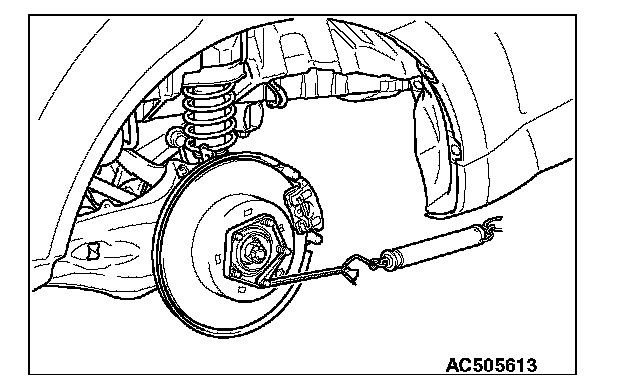

1. Using a spring scale, measure the hub sliding torque in the forward direction.

CAUTION
Keep grease or other soiling off the pad and brake disc friction surfaces.

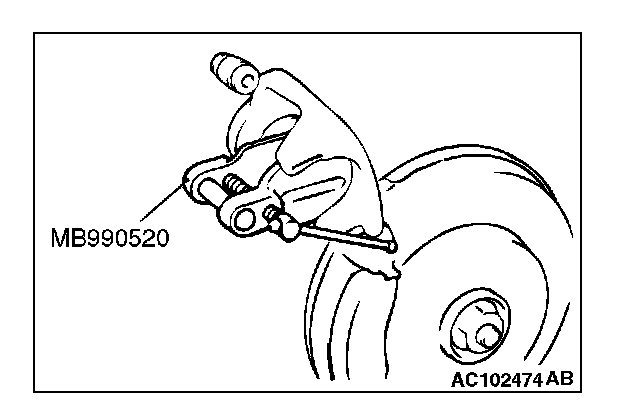

2. Clean the piston, and press the piston into the cylinder using the piston expander (Special tool: MB990520).
3. Install the caliper support to the backing plate assembly, and assemble the pad clip and pad to the caliper support.
4. Lower the caliper assembly with care not to catch the piston boot, and tighten the lock pin to the specified torque.

Tightening torque: 44 ± 5 Nm (32 ± 4 ft-lb)

5. Start the engine, and depress the brake pedal forcibly two or three times. Then, stop the engine.
6. Turn the brake disc 10 times in the forward direction.





7. Using a spring scale, measure the hub sliding torque in the forward direction.
8. Obtain the disc brake drag force (difference between measured values of item 1 and item 7).

Standard value: 68 N (15.3 pounds) or less

9. If the brake drag force exceeds the standard value, disassemble the piston to check for fouling/rust on the piston sliding section and piston/seal deterioration, and confirm whether the slide pin slides properly.
