Disc Brake Rotor Check
Disc Brake Rotor Check
DISC BRAKE ROTOR CHECK
CAUTION

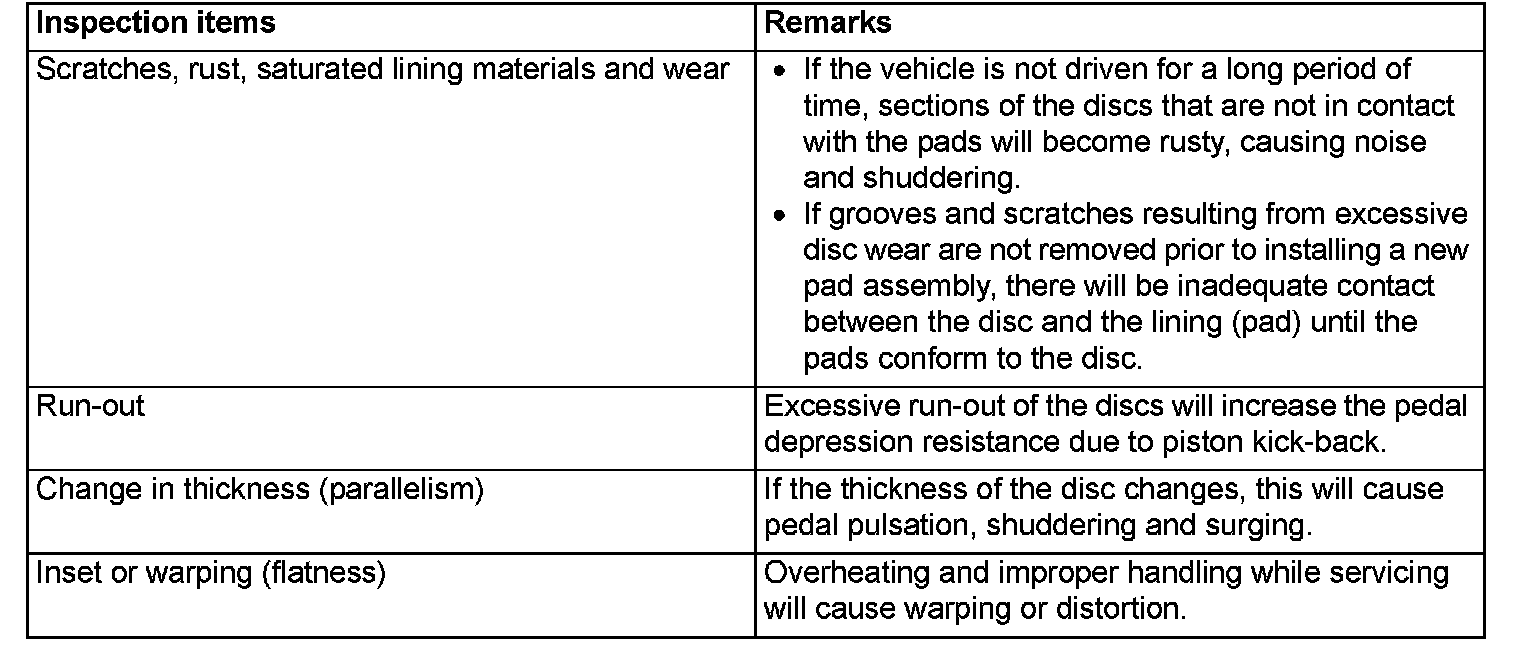

Disc brakes must be kept within the allowable service values in order to maintain normal brake operation. Before turning the brake disc, the following conditions should be checked.
