Brake Pedal Assy: Service and Repair

NOTE: This article contains changes called out in TSB-08-35-001.


BRAKE PEDAL

REMOVAL AND INSTALLATION

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which may have grease on them.

Pre-removal & Post-installation Operation:

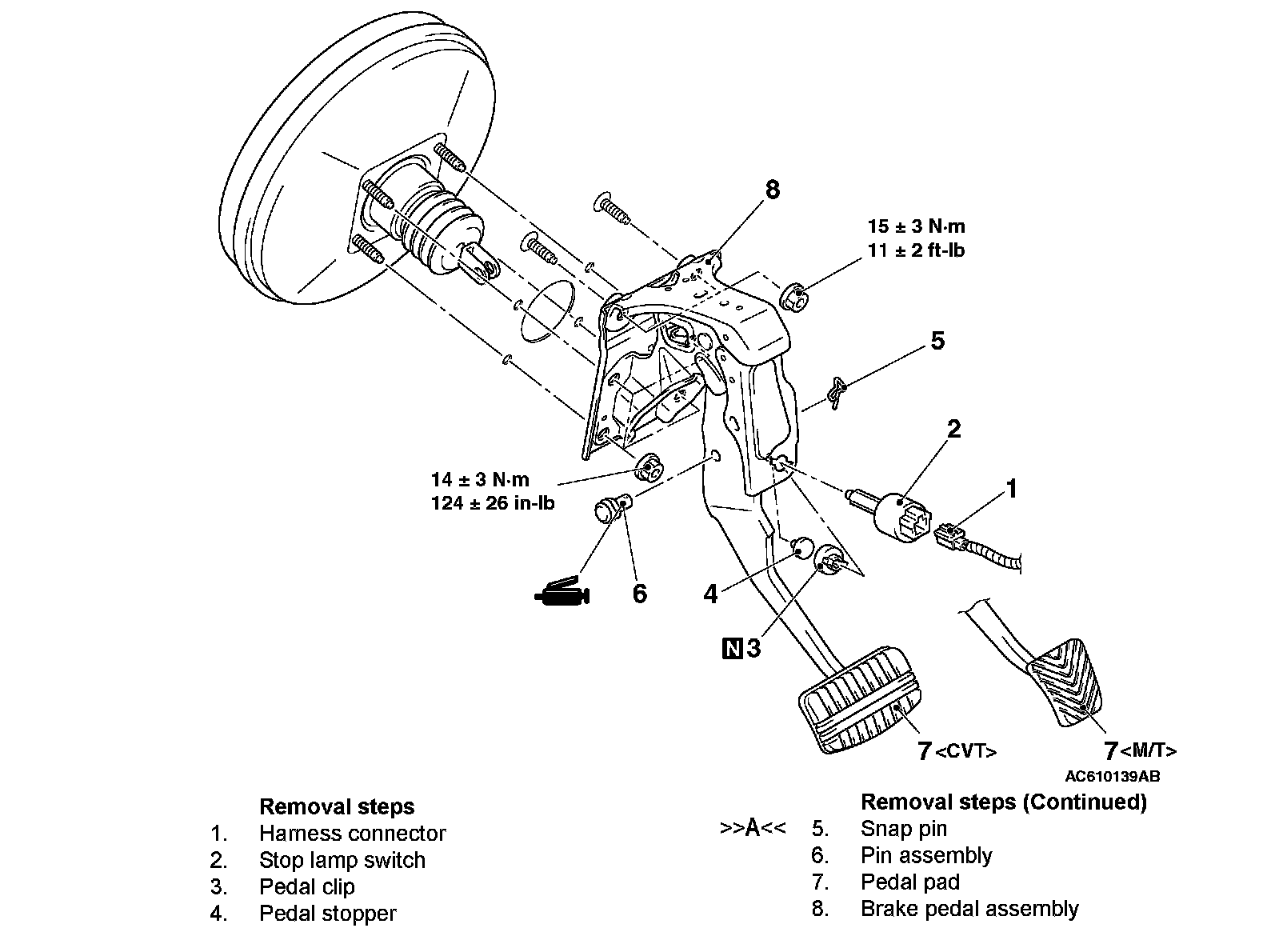

Removal Steps 1-8:

INSTALLATION SERVICE POINT

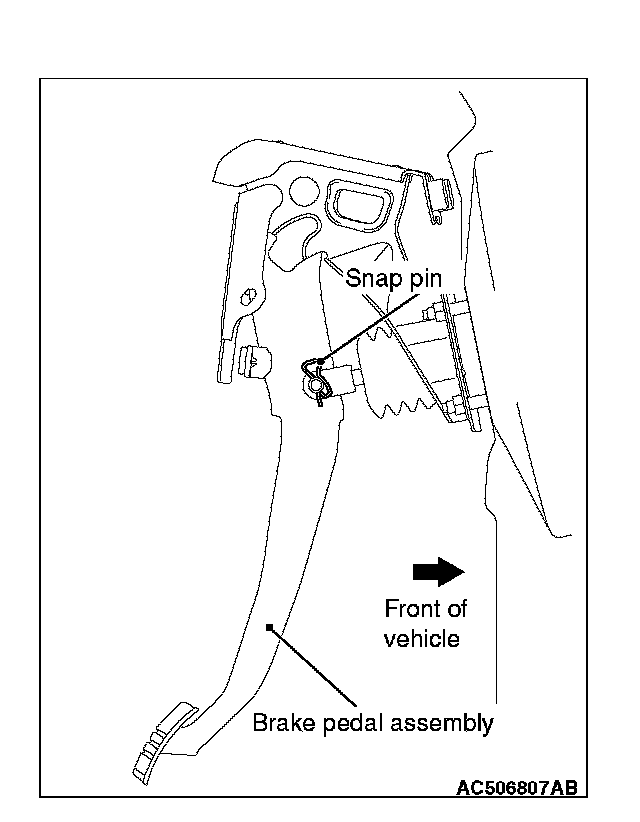

]]A[[ SNAP PIN INSTALLATION





1. Install the snap pin as shown in the figure.

INSPECTION

CHECK THE STOP LAMP SWITCH CONTINUITY.

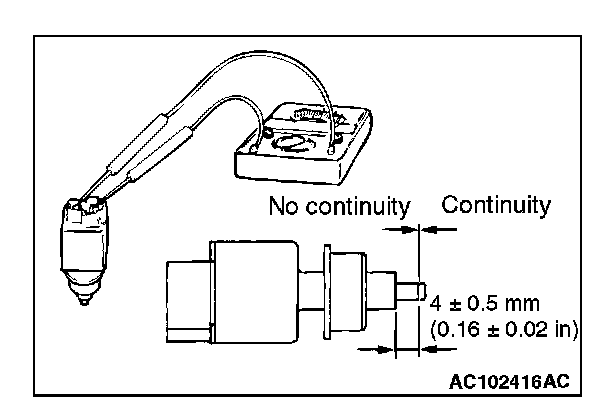

1. Connect a circuit tester (Ohm range) to the stop lamp switch connector.
2. When no continuity is detected with the plunger pressed from the edge of the outer case by the dimension shown in the figure and when continuity is detected with the plunger released, the stop lamp switch is in good condition.
